Flow Table
Product Code : EL-CTLE-10295

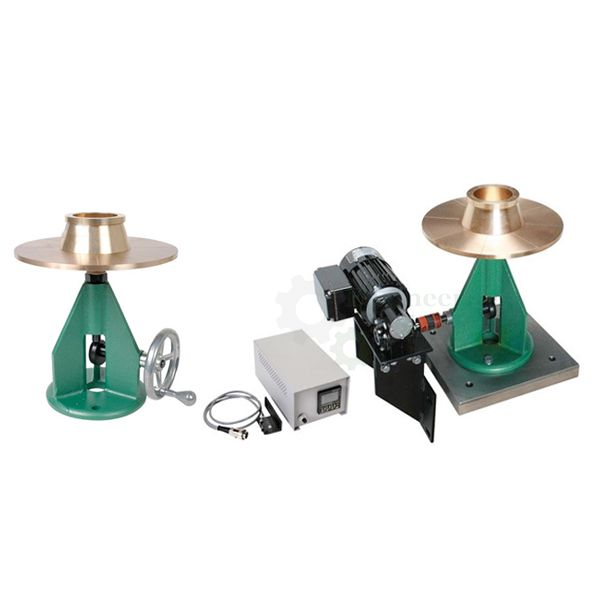

Flow Table (code EL-CTLE-10295) is an apparatus for determining the consistency of mortar, lime and cement specimens, made in an ASTM model and an EN model, each available hand operated or motor driven. The ASTM model has a 254 mm brass table and the EN model a 300 mm stainless steel table, both use a brass conical mould and come with a brass flow mould and tamper, and the motor version runs at 1 revolution per second and stops itself after the preset number of drops.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Determining the consistency of mortar, lime and cement specimens |
| Models | ASTM model and EN model |
| Operation | Hand operated (hand wheel) or motor operated |
| Motor drive | Motor speed reducer through a mechanical coupling, at 1 revolution per second |
| Drop counter | Number of drops preset on a counter; machine stops automatically at the end of the cycle |
| Supplied with | Brass flow mould and tamper (both models) |
| Standards | ASTM C230; EN 459-2, EN 1015-3 |
| ASTM model | |
| Table | Brass, 254 mm diameter |
| Conical mould | Brass, 100 mm base dia × 70 mm top dia × 50 mm height |
| EN model | |
| Table | Stainless steel, 300 mm diameter |
| Conical mould | Brass, 100 mm base dia × 70 mm top dia × 60 mm height |
| Supply | |
| Product code | EL-CTLE-10295 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Flow Table Used For?
Flow is a measure of how far a mortar or paste spreads when it is jolted, and it is used to bring cement, lime and mortar mixes to a set consistency before further testing. The conical mould is placed at the centre of the table, filled and tamped, then lifted off, and the table is raised and dropped the preset number of times by the hand wheel or the motor. The diameter of the spread mortar is then measured to give the flow value, which is compared with the consistency the test method calls for. The standards listed are ASTM C230, EN 459-2 and EN 1015-3.
What to Specify When Ordering
- Quantity — the number of flow tables required.
- Model — the ASTM model with 254 mm brass table or the EN model with 300 mm stainless steel table.
- Operation — hand operated with hand wheel, or motor operated with preset drop counter.
Frequently Asked Questions
Which table sizes and materials are offered on the flow table?
The ASTM model uses a brass table of 254 mm diameter, while the EN model has a stainless steel table of 300 mm diameter.
Is a motor driven flow table available?
Yes. Besides the hand operated model with its hand wheel, the motor operated version turns through a motor speed reducer and mechanical coupling at 1 revolution per second.
How does the motorized table know when to stop?
The number of drops is set in advance on a counter, and the motorized table stops automatically when that number has been completed.
What materials can be tested on the flow table?
Mortar, lime and cement specimens are tested for consistency on both the ASTM and the EN model, which differ in table size and material.
What are the conical mould dimensions for each model?
Each brass conical mould measures 100 mm at the base and 70 mm at the top; the height is 50 mm on the ASTM model and 60 mm on the EN model.
Which standards are listed for the flow table?
The standards listed are ASTM C230, EN 459-2 and EN 1015-3, matching the two models built to ASTM and EN standards.
OEM Manufacturer
Buyers of the Flow Table deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Concrete Testing Equipment
- Accelerated Curing Tank — insulated stainless steel lined tank for accelerated hot water or steam curing of concrete cubes.
- V Funnel Test Apparatus — stainless steel V funnel on a stand with lidded orifice, filling hopper and base for SCC.
- DLC Vibrating Hammer for Concrete Mould — vibratory hammer with tamping foot and shank for compacting concrete samples in moulds, approx. 6 kg.
- Tamping Bar — steel bar of 25 mm square section, 380 mm long, with handle for compacting cube concrete.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of flow tables, the model (ASTM or EN) and hand or motor operation and your delivery location through the contact page, or add the Flow Table to the enquiry cart from this page.
