Melting Pot
Product Code : EL-CTLE-10917

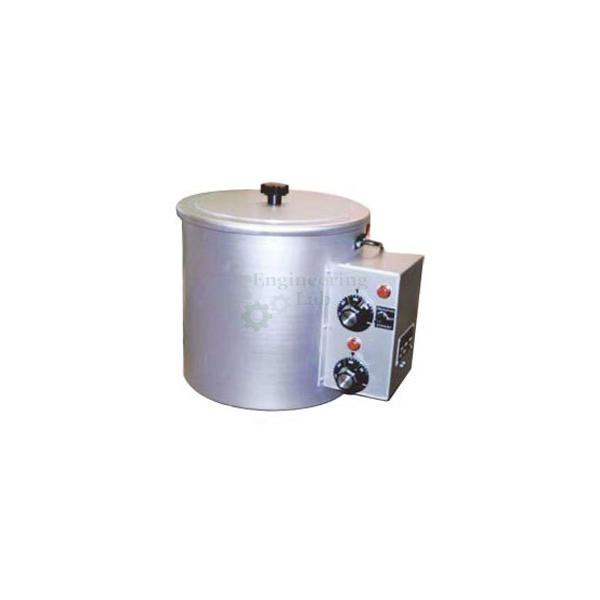

Melting Pot (code EL-CTLE-10917) is an electrically heated, thermostatically controlled pot used to melt the capping compound applied to the ends of concrete cylinders before testing. It holds 2.4 litres, has a rated power of up to 750 W and a temperature range of 40 to 340 °C, and its metal container sits in a lagged steel jacket with a standby heat switch and lift-off cover, running on single phase 230 V A.C.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Melting capping compound for capping the ends of concrete cylinders to be tested |
| Construction | Metal container in a well-lagged steel jacket |
| Temperature control | Thermostatic control with standby heat switch |
| Cover | Lift-off cover; supplied with cover and handle |
| Heating | Electrically heated, thermostatically controlled bath |
| Internal size (H × W) | 140 × 150 mm |
| External size (H × W) | 250 × 165 mm |
| Pot capacity | 2.4 litres |
| Rated power | Up to 750 W |
| Temperature range | 40 to 340 °C |
| Power supply | Single phase, 230 V A.C. |
| Capping compound | Available in 5 kg packs |
| Product code | EL-CTLE-10917 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Melting Pot Used For?
Capping compound is solid at room temperature, so it has to be melted and kept fluid before the ends of concrete cylinders can be capped. The operator loads compound into the pot, sets the thermostat within the 40 to 340 °C range and lets the charge melt with the lift-off cover in place to keep the heat in; molten compound is then ladled into the capping plate or fixture. The lagged steel jacket around the metal container limits heat loss to the room, and the standby heat switch is used between capping runs. Fresh compound is available in 5 kg packs.
What to Specify When Ordering
- Quantity — the number of melting pots required.
- Capping compound — the number of 5 kg packs of capping compound wanted with the pot.
Frequently Asked Questions
What is the Melting Pot used for?
It melts the capping compound used for capping the ends of concrete cylinders that are to be tested, so that the compound can be poured into a capping plate or mould.
How much compound does the pot hold?
The pot capacity is 2.4 litres, with internal dimensions of 140 × 150 mm (height × width) inside an external size of 250 × 165 mm.
What temperature range and power does it have?
The temperature can be set from 40 to 340 °C under thermostatic control, and the melting rated power is up to 750 W.
What power supply is required?
The pot is suitable for operation on a single phase 230 Volts A.C. supply, and it has a standby heat switch in addition to the thermostat.
Is capping compound available?
Yes. Capping compound for the ends of concrete cylinders is also available in 5 kg packs for use with the pot.
How is heat kept in the pot?
The metal container sits in a well-lagged steel jacket and is supplied with a lift-off cover and handle, which together limit heat loss while the compound is molten.
OEM Manufacturer
The Melting Pot is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
