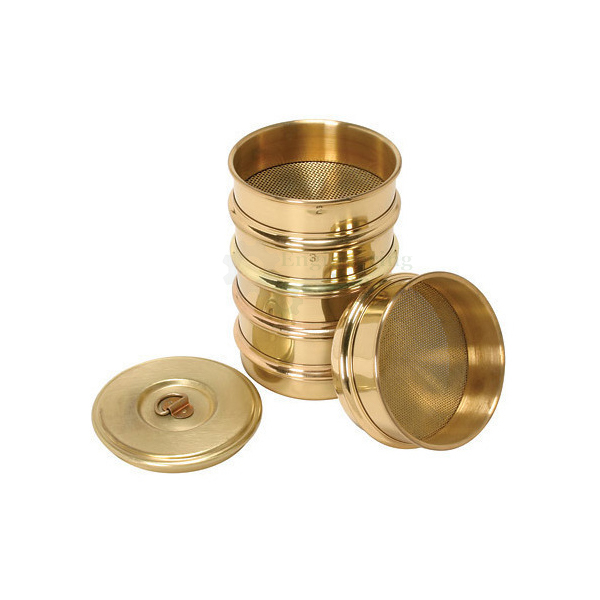

Brass Frame Sieves
Product Code : EL-STLE-10414
Brass Frame Sieves (code EL-STLE-10414) are full-depth testing sieves for grading aggregates and soils, made in 200, 250, 300, 315 and 450 mm diameters that nest one inside another. A 200 mm (8 in) stack handles 1000 g of aggregates at most and a 300 mm (12 in) stack 3000 g; frames and wire cloth are stainless steel (sheet steel for the 450 mm frame), perforated plates tinned steel, and the 200 mm lid and receiver brass.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Full-depth testing sieves |
| Diameters | 200, 250, 300, 315 and 450 mm |
| Nesting | Sieves of the same nominal diameter nest one inside another |
| Sample mass, 200 mm | Up to 1000 g of aggregates with 200 mm (8 in) sieves |
| Sample mass, 300 mm | Up to 3000 g of aggregates with 300 mm (12 in) sieves |
| Labelling | Specifications marked on each sieve label, with serial number and other identification information |
| Frame material | Stainless steel; 450 mm diameter frames made of sheet steel |
| Wire cloth | Stainless steel |
| Perforated plates | Tinned steel |
| Plate or wire cloth | Perforated plate square hole sieves for apertures of 4 mm and above; woven wire sieves below 4 mm |
| Lid and receiver | Brass, for 200 mm (8 in) diameter sieves |
| Standards | BS 410, IS 460 Part 1 (1985), ASTM E 11 |
| Equivalent designations by IS 460 size | |
| 4.75 mm | BS 410: –; ASTM E 11: 4; aperture 4750 micron |
| 4.00 mm | BS 410: 4; ASTM E 11: 5; aperture 4000 micron |
| 3.35 mm | BS 410: 5; ASTM E 11: 6; aperture 3350 micron |
| 2.80 mm | BS 410: 6; ASTM E 11: 7; aperture 2800 micron |
| 2.36 mm | BS 410: 7; ASTM E 11: 8; aperture 2400 micron |
| 2.00 mm | BS 410: 8; ASTM E 11: 10; aperture 2000 micron |
| 1.70 mm | BS 410: 10; ASTM E 11: 12; aperture 1680 micron |
| 1.40 mm | BS 410: 12; ASTM E 11: 14; aperture 1400 micron |
| 1.18 mm | BS 410: 14; ASTM E 11: 16; aperture 1200 micron |
| 1.00 mm | BS 410: 16; ASTM E 11: 18; aperture 1000 micron |
| 850 micron | BS 410: 18; ASTM E 11: 20; aperture 850 micron |
| 710 micron | BS 410: 22; ASTM E 11: 25; aperture 710 micron |
| 600 micron | BS 410: 25; ASTM E 11: 30; aperture 600 micron |
| 500 micron | BS 410: 30; ASTM E 11: 35; aperture 500 micron |
| 425 micron | BS 410: 36; ASTM E 11: 40; aperture 425 micron |
| 355 micron | BS 410: 44; ASTM E 11: 45; aperture 355 micron |
| 300 micron | BS 410: 52; ASTM E 11: 50; aperture 300 micron |
| 212 micron | BS 410: 60; ASTM E 11: 70 |
| 180 micron | BS 410: 85; ASTM E 11: 80; aperture 180 micron |
| 150 micron | BS 410: 100; ASTM E 11: 100; aperture 150 micron |
| 125 micron | BS 410: 120; ASTM E 11: 120; aperture 125 micron |
| 106 micron | BS 410: 150; ASTM E 11: 140; aperture 106 micron |
| 90 micron | BS 410: 170; ASTM E 11: 170; aperture 90 micron |
| 75 micron | BS 410: 200; ASTM E 11: 200; aperture 75 micron |
| 63 micron | BS 410: 240; ASTM E 11: 230; aperture 63 micron |
| 53 micron | BS 410: 300; ASTM E 11: 270; aperture 53 micron |
| 45 micron | BS 410: 350; ASTM E 11: 325; aperture 45 micron |
| 38 micron | BS 410: 400; ASTM E 11: 400; aperture 38 micron |
| 25 micron | BS 410: 500; ASTM E 11: –; aperture 25 micron |
| Supply | |
| Product code | EL-STLE-10414 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Brass Frame Sieves Used For?
Sieve analysis passes a dry sample through a nest of sieves whose apertures get smaller from top to bottom, and the mass retained on each sieve gives the particle size distribution used to grade and classify aggregates and soils. Sieves of one diameter are stacked in order of aperture, the sample is put on the top sieve and the nest is shaken by hand or in a sieve shaker; for a 200 mm stack the brass lid and receiver close the top and bottom. The designation table lets an IS 460 size be matched with its BS 410 and ASTM E 11 equivalents.
What to Specify When Ordering
- Quantity — how many sieves are needed of each size.
- Diameter — 200, 250, 300, 315 or 450 mm.
- Aperture sizes — the IS 460, BS 410 or ASTM E 11 sizes needed, from 4.75 mm down to 25 micron.
- Lid and receiver — whether the brass lid and receiver for 200 mm (8 in) sieves are wanted.
Frequently Asked Questions
Which sieve diameters are available?
The sieves are made in 200, 250, 300, 315 and 450 mm diameters, and sieves sharing a nominal diameter fit inside one another to form a stack.
How much aggregate can be sieved at one time?
A stack of 200 mm (8 in) sieves handles as much as 1000 g of aggregates, while 300 mm (12 in) sieves take as much as 3000 g.
What are the frames, mesh and plates made of?
Frames and wire cloth are stainless steel, except the 450 mm frame, which is sheet steel. Perforated plates are tinned steel, and the lid and receiver for 200 mm sieves are brass.
When is a perforated plate used instead of wire cloth?
Perforated plate square hole test sieves are used for apertures of 4 mm and above, and woven wire test sieves for apertures below 4 mm.
How can an IS 460 size be matched to BS 410 or ASTM E 11?
The specification table lists each IS 460 size with its BS 410 and ASTM E 11 designations and aperture in micron; the 4.75 mm sieve, for example, sits against 4 in the ASTM E 11 column.
How is each sieve identified?
Each sieve carries a label marked with its specifications, its serial number and other details that identify the individual sieve.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Brass Frame Sieves at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
