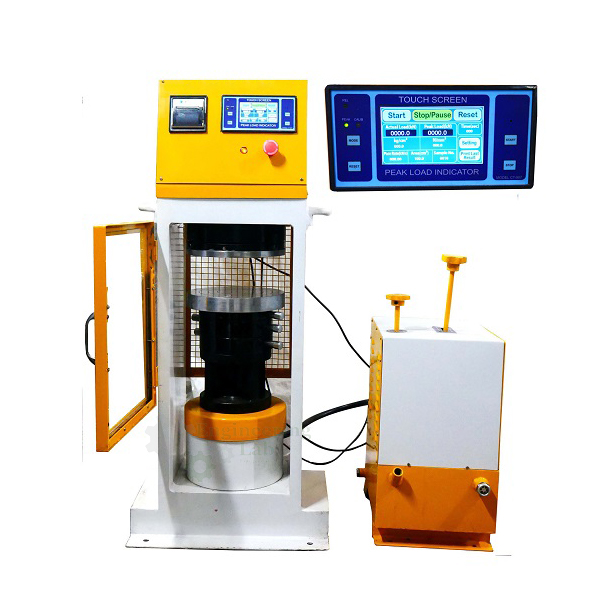

Semi-Automatic Compression Testing Machine
Product Code : EL-CTLE-10926
Semi-Automatic Compression Testing Machine (code EL-CTLE-10926) is a two column plate type compression machine with a touch screen digital indicator, in which pressing the start button completes the test and gives the result in N/mm² and kg/cm². It is offered in 1000, 2000 and 3000 kN capacities, uses a 0.55 kW single phase AC motor driving a dual pump with rapid approach, and has an in-built portable printer, RS232 data download and transparent safety doors.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Capacities | 1000, 2000 and 3000 kN |
| Indicator | Touch screen digital indicator with manual pace rate controller system |
| Functions | Manual pace rate control, data interface, data printing and load hold |
| Printer | In-built portable printer |
| Test cycle | Pressing only the start button completes the test and gives the final result in N/mm² and kg/cm² |
| Frame type | Two column plate type frame |
| Hydraulics | Hydraulic power, rapid approach and fine-tuning system for manual pace rate control |
| Power pack | |
| Control | Fully controlled by a pressure rate control valve |
| Oil supply | Supplies the required oil to the load frames for loading; can load different frames at the required pace rates |
| Overload protection | Safety maximum pressure valve |
| Rapid approach pump | Supplied as standard |
| Pumping unit and motor | |
| Pump | Single and double speed pump for rapid approach of the platens for daylight closure and control over the application of load |
| Motor | AC motor driving the dual pump; 220 V (110 V), 50-60 Hz, single phase, 0.55 kW |
| Touch screen HMI | |
| Displayed values | Peak load, peak stress and record no.; actual load, peak load, total area of sample and sample number |
| Sample details | Menu driven |
| Stress calculation | Peak stress based on sample type and shape |
| Units shown | Time in seconds; result in kg/cm² and N/mm²; pace rate in kN/sec |
| Controls | Start, stop, pause and reset; touch screen keyboard |
| Data download | Through RS232 |
| Load frame | |
| Construction | Fully welded, with top crosshead, base and solid side walls; welded assembly |
| Hydraulic piston | Precision ground, fixed to the base of the machine |
| Approach | Rapid approach pump for fast approach of the platens for daylight closure, with automatic control over the load application |
| Pace rate display | Pace rate bar giving the operator feedback on the loading rate |
| Included | Distance pieces and removable transparent front-rear safety doors |
| Stability check | Ball seating assembly and frame tested for stability |
| Piston stroke | With safety limit switch |
| Platen hardness | Min. 55 HRC |
| Supply | |
| Product code | EL-CTLE-10926 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Semi-Automatic Compression Testing Machine Used For?
Compression machines of this kind crush cubes, cylinders and other samples to find the stress at which they fail. The operator enters the sample details through the menu, so that the HMI can work out peak stress from the sample type, shape and area, sets the sample between the platens with distance pieces as needed and closes the front and rear safety doors. After start is pressed, the rapid approach pump closes the daylight and the pace rate is then held with the manual controller, guided by the pace rate bar on the screen. At failure the peak load and peak stress are shown, stored under a record number and printed or downloaded through RS232.
What to Specify When Ordering
- Quantity — the number of semi-automatic machines required.
- Capacity — 1000, 2000 or 3000 kN.
- Motor supply — 220 V or 110 V, single phase, 50-60 Hz.
Frequently Asked Questions
Which capacities are available?
The machine is available in capacities of 1000, 2000 and 3000 kN, each with a two column plate type frame and a hydraulic power pack.
How is the test run?
Once the sample details are entered, pressing only the start button completes the test, with the touch screen showing the final result in N/mm² and kg/cm².
What does the touch screen HMI show?
It displays actual load, peak load, peak stress, the record number, total sample area and sample number, together with time in seconds and the pace rate in kN/sec.
How are results printed or transferred?
Results can be printed on the in-built portable printer, and test data can be downloaded through an RS232 interface for keeping on a computer.
What safety features are fitted?
A safety maximum pressure valve prevents overloading, the piston stroke has a safety limit switch, and removable transparent front-rear safety doors enclose the test space.
What motor and pump drive the machine?
A dual pump is driven by a 0.55 kW AC motor for a 220 V (110 V), 50-60 Hz single phase supply, with single and double speed pumping for rapid approach.
OEM Manufacturer
The Semi-Automatic Compression Testing Machine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Concrete Testing Equipment
- Air Entertainment Meter — pressure bulb air content meter with sealed conical cover, offered in 0.005 to 0.01 cubic meter bowls.
- Compaction Factor Test for Concrete Workability — trowels, 15.2 cm hand scoop, 61 cm rod and balance for the compaction factor test.
- Concrete Cube Mould — cast iron cube mould with base plate, made in metric and inch sizes.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of machines, the capacity (1000, 2000 or 3000 kN) and the motor supply voltage required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
