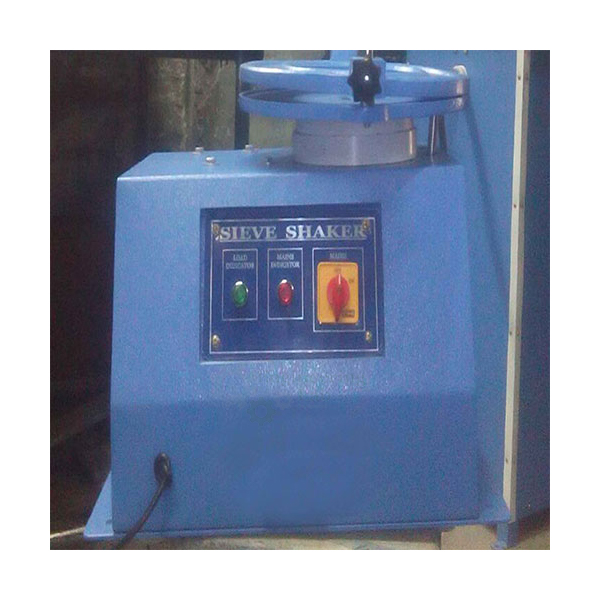

Gyratory Sieve Shaker Motorized
Product Code : EL-STLE-10947
Gyratory Sieve Shaker Motorized (code EL-STLE-10947) is a motor-driven sieve shaker whose table combines a gyratory motion with an up-and-down movement, used for sieving in cement, pharmaceutical, soap, roofing, pigment and minor aggregate work. A 1/4 H.P. motor drives it through an oil-immersed reduction gear on 230 V, 50 Hz single phase AC, and it carries a stack of up to 7 sieves with diameters from 150 mm to 200 mm, held by a pair of rods and a holder.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Motion | Gyratory motion of the table plus an upward and downward movement, so that the whole sieve surface is used |
| Motor | 1/4 H.P., driving the shaker through a reduction gear immersed in oil |
| Sieve table | Inclined from the vertical axis; inclination changes in a clockwise direction and the table itself does not rotate |
| Sieve capacity | Up to 7 sieves of 150 mm to 200 mm diameter |
| Rotary motion | Removable stop pin below the table |
| Sieve clamping | Pair of rods and a holder fixed on top of the uppermost sieve |
| Power supply | 230 V, 50 Hz, single phase AC |
| Industries | Cement, pharmaceuticals, soap, roofing, pigments, minor aggregates |
| Extras (extra cost) | Adapter for 300 mm and 450 mm diameter sieves |
| Product code | EL-STLE-10947 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Gyratory Sieve Shaker Motorized Used For?
A gyratory motion spreads the sample over the mesh in a circular path, while the added up-and-down movement lifts particles so that they keep meeting fresh apertures instead of sliding over the same area. A stack of as many as 7 sieves, 150 mm to 200 mm in diameter, goes on the inclined table, the pair of rods and the holder are fixed above the uppermost sieve, and the motor is started; taking out the stop pin under the table gives a rotary motion when that is wanted. With the extra-cost adapter, 300 mm and 450 mm sieves can be shaken as well.
What to Specify When Ordering
- Quantity — the number of gyratory shakers required.
- Large sieve adapter — whether the adapter for 300 mm and 450 mm diameter sieves is wanted at extra cost.
Frequently Asked Questions
What motion does the gyratory shaker produce?
The table moves in a gyratory path and also rises and falls, so that the whole sieve surface is used. Removing the stop pin under the table gives a rotary motion.
How many sieves can it carry?
Up to 7 sieves can be carried, with diameters from 150 mm to 200 mm. An adapter for 300 mm and 450 mm sieves is available at extra cost.
How is the sieve stack held in place?
A pair of rods and a holder are fixed on top of the uppermost sieve, which holds the whole sieve set firmly on the table during shaking.
What drives the shaker and what supply does it need?
A 1/4 H.P. motor drives the shaker through a reduction gear immersed in oil, and the unit runs on a 230 V, 50 Hz, single phase AC supply.
Which industries use this type of shaker?
It is used across industries including cement, pharmaceuticals, soap, roofing, pigments and minor aggregates, wherever powders or granular materials are graded by sieving.
How can the shaker be ordered?
Send the quantity and the place of delivery using the contact page, or click the Add To Cart enquiry button shown on this product page.
OEM Manufacturer
The Gyratory Sieve Shaker Motorized is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
