Liquid Limit Devices (Casagrande)
.jpg)
Product Code : EL-STLE-10383

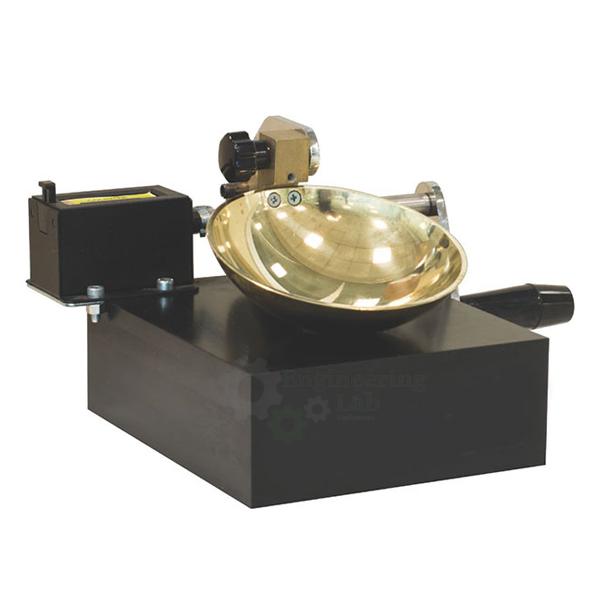

Liquid Limit Devices (Casagrande) (code EL-STLE-10383) are mechanical cup devices used to determine the liquid limit of soil by the Casagrande method. A brass cup on an adjustable bracket is set for a 1 cm fall and raised and dropped onto a rubber base of standard hardness by cam action, a counter registers the blows, and each device comes with two grooving tools and a height gauge block.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Determining the liquid limit of soil by the Casagrande method |
| Liquid limit definition | Water content at which a soil pat cut by a groove of standard dimensions flows together over 1.25 cm under 25 blows |
| Strength at liquid limit | About 0.17 N/cm² (17 g/cm²) |
| Cup | Brass, held on an adjustable bracket |
| Height of fall | Adjustable for a fall of 1 cm |
| Drop mechanism | Cam action onto a rubber base of standard hardness |
| Blow counter | Registers the number of blows |
| Supplied with | One Casagrande grooving tool, one ASTM grooving tool and a height gauge block |
| Standards | IS 2720 (Part V), BS 1377-2, ASTM D 4318 |
| Product code | EL-STLE-10383 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Liquid Limit Devices (Casagrande) Used For?
The liquid limit marks the water content at which a soil changes from a plastic to a liquid state, and together with the plastic limit it gives the plasticity index used to classify fine grained soils and to estimate properties such as compressibility. The operator sets the 1 cm fall with the height gauge block, spreads moist soil in the brass cup, cuts a groove with a grooving tool and turns the cam so the cup drops repeatedly onto the rubber base while the counter records the blows. The blows needed to close the groove over 1.25 cm are noted at several moisture contents, and the water content at 25 blows is the liquid limit.
What to Specify When Ordering
- Quantity — the number of liquid limit devices required.
Frequently Asked Questions
How is the liquid limit defined for this test?
It is the water content at which soil cut by a groove of standard dimensions flows together over a distance of 1.25 cm when the cup is given 25 blows.
What is the cup made of and how far does it drop?
The cup is brass and sits on an adjustable bracket; its drop is set to 1 cm, so that it falls onto a rubber base of standard hardness.
What accessories come with the device?
Each device is supplied complete with two grooving tools, one of them the Casagrande type, and a height gauge block for checking the 1 cm fall.
How are the blows counted?
The cup is raised and dropped by cam action, and a counter on the device registers the number of blows during each determination.
Why are liquid limit results useful?
Liquid limit values help relate a soil to its mechanical behaviour, compressibility in particular, and together with the plastic limit they are used to classify fine grained soils.
Which standards does the device list?
For liquid limit testing with this device, the standards listed are IS 2720 (Part V), BS 1377-2 and ASTM D 4318.
OEM Manufacturer
The Liquid Limit Devices (Casagrande) are made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Soil Testing Equipment
- Liquid Limit Penetrometers — cone penetrometer with digital 0.01 mm gauge for liquid limit and undrained shear strength of clays.
- Plastic Limit Set — plastic limit apparatus with glass plate, 3 mm reference rod, moisture containers and basin.
- Shrinkage Limit Set — shrinkage dish, glass cup, three-prong Perspex plate and 25 ml cylinder set for shrinkage limit tests.
- Liquid Limit Device Motorized — motorised brass-cup liquid limit apparatus with cam drop, Casagrande and ASTM grooving tools.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of liquid limit devices required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
