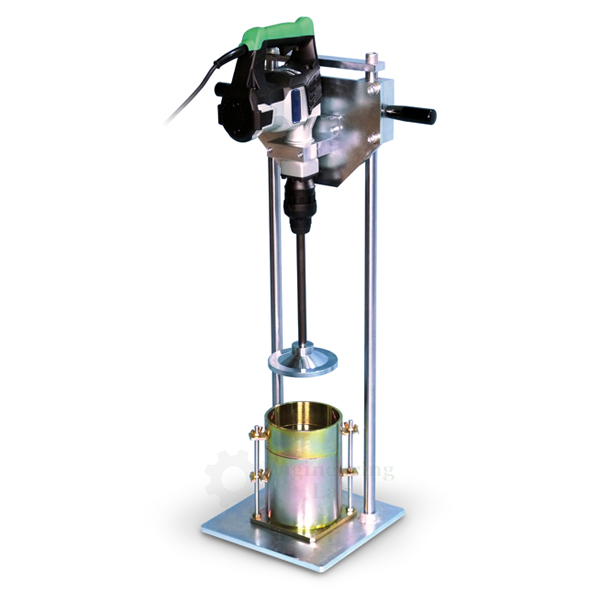

Vibration Compaction Hammer

Product Code : EL-STLE-10413

Vibration Compaction Hammer (code EL-STLE-10413) is a power tool used in the soil laboratory to compact soil and similar materials by vibration. It runs at constant speed with variable speed control, has an aluminium housing and a soft grip, shock-absorbing handle, and its variable lock mechanism sets the tool at a 12-step angle, while a single-step holder allows tools to be changed.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Vibration Compaction Hammer Used For?

Vibrating hammer compaction is a laboratory method for finding the relation between moisture content and dry density of granular soils, which compact more readily under vibration than under a falling rammer. In the test the material is placed in layers in a compaction mould and each layer is vibrated by the hammer, held down on a tamping foot, after which the mould is weighed and the density worked out. The variable speed control, the 12-step angle lock and the single-step holder let the tool be set up and changed between jobs. The standards listed for it are BS 1377:4, BS 1924:2 and EN 13286-4.

What to Specify When Ordering

• Quantity — the number of hammers required.

Frequently Asked Questions

What is the Vibration Compaction Hammer used for?
It compacts soil and similar materials by vibration in the laboratory, so that the density reached at a given moisture content can be measured for granular soils.

Can the hammer speed be adjusted?
Yes. The hammer works at a constant speed and also has variable speed control, so the operator can either hold one speed or vary it.

How is the tool angle set?
A variable lock mechanism allows the tool to be adjusted and locked in position at a 12-step angle setting before work starts.

How are tools changed on the hammer?
Tools are fitted in a single-step holder, so one tool can be taken out and another put in with a single action.

What are the housing and handle like?
The housing is made of aluminium, and the handle has a soft grip and is shock-absorbing, which reduces the vibration passed to the operator's hand.

Which standards are listed for the hammer?
The standards listed for the hammer are BS 1377:4, BS 1924:2 and EN 13286-4, all used in soil laboratory compaction work.

OEM Manufacturer

The Vibration Compaction Hammer is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.

Related Soil Testing Equipment

• Automatic Soil Compactor — automatic rammer for standard, modified and CBR compaction with 2.5 or 4.5 kg rammer.
• Proctor Moulds and Rammers — plated steel compaction mould with collar and base plate, and rammer with vented guide sleeve.
• Standard Compaction Test — standard compaction set with 1000 cc steel mould, collar, base plate and 2.6 kg rammer.
• Automatic CBR Test Apparatus — 50 kN computer-controlled CBR tester with 0.5 to 5 mm/min ram speed and touchscreen.

See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of hammers required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
