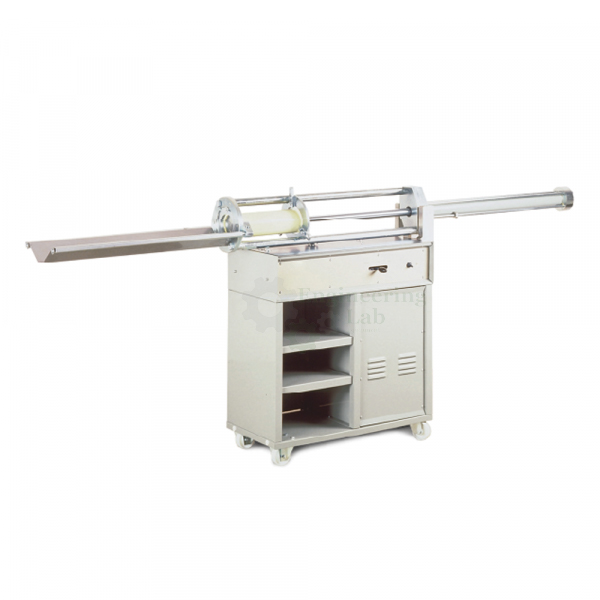

Soil Extruder, Motor Operated
Product Code : EL-STLE-10405
Soil Extruder, Motor Operated (code EL-STLE-10405) is a hydraulic machine for pushing soil samples out of sampling tubes of up to 160 mm external diameter, in either the vertical or the horizontal position. It has a 750 W motor, a maximum thrust of 60 kN, a 900 mm ram stroke, a maximum working ram speed of 6 mm/sec and an approximate weight of 160 kg; tube adaptors are ordered separately.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Hydraulic extrusion of soil samples from sampling tubes |
| Power | 750 W |
| Maximum load | 60 kN |
| Sample tubes | Maximum external diameter 160 mm |
| Ram stroke | Maximum 900 mm |
| Ram speed | Maximum working speed 6 mm/sec |
| Controls | Lever controls the extruding speed and the hydraulic valve for extrusion or return movement |
| Stopping | Can be stopped at any point of travel, to extrude into smaller sample tubes or take smaller specimens |
| Tube support | Adjustable V shape bearing; extrudes in vertical or horizontal position |
| Storage | Hydraulic cylinder assembly and receiving table can be lowered alongside the machine to save space |
| Adaptors | Supplied without tube adaptors; a large number of standard adaptors are available, ordered separately |
| Dimensions, horizontal | 2730 × 409 × 1180 mm (l × w × h) |
| Dimensions, vertical | 1025 × 409 × 1080 mm (l × w × h), without accessories |
| Weight | Approx. 160 kg |
| Product code | EL-STLE-10405 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Soil Extruder, Motor Operated Used For?
Undisturbed samples taken in sampling tubes on site have to be removed in the laboratory with a steady push, so that the soil is not cracked or compressed before testing. The tube is held in the adjustable V bearing, the matching adaptor is fitted, and the operator uses the lever to set the extruding speed and open the hydraulic valve; the ram then pushes the soil out onto the receiving table. Stopping the ram part-way allows the sample to be pushed straight into smaller sample tubes or cut into shorter specimens, and the return movement brings the ram back for the next tube.
What to Specify When Ordering
- Quantity — the number of extruders required.
- Tube adaptors — the adaptors for the sampling tube sizes to be extruded, up to 160 mm external diameter, as none are supplied with the machine.
Frequently Asked Questions
What size of sample tube can it handle?
It extrudes sample tubes up to 160 mm external diameter, with a maximum ram stroke of 900 mm; tube adaptors are ordered separately.
How much thrust does the ram give?
The hydraulic ram exerts a maximum thrust of 60 kN, driven by a 750 W motor, at a maximum working speed of 6 mm/sec.
Can it work horizontally as well as vertically?
Yes. Sampling tubes are held in an adjustable V shape bearing, and the machine can extrude in either the vertical or the horizontal position.
Are tube adaptors included?
No. The machine is supplied without tube adaptors; these are ordered separately from the large number of standard adaptors available for different tubes.
How much space does it take?
In the horizontal working position it measures 2730 × 409 × 1180 mm and in the vertical position 1025 × 409 × 1080 mm without accessories; the cylinder assembly and receiving table can be lowered alongside when not in use.
What details does an export enquiry for the extruder need?
An export enquiry should list the quantity and the tube adaptors needed, the destination country and port or city, delivery terms such as FOB or CIF, packing requirements and any tender reference.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Soil Extruder, Motor Operated at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Soil Testing Equipment
- Soil Sampler, Cutter and Extruder — rack and pinion soil specimen cutter and extruder for consolidation, shear and triaxial samples.
- Soil Lathe, Trimmer, Extruder — rotating-base soil lathe and extruder for cylindrical specimens from dia. 35 × 70 to 110 × 220 mm.
- Core Cutters — corrosion-protected steel core cutter sets in 100 mm and 150 mm diameters with dolly and rammer.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of extruders and the sampling tube sizes for which adaptors are needed and the delivery location through the contact page; the Add To Cart button on this page also adds the Soil Extruder, Motor Operated to an enquiry.
