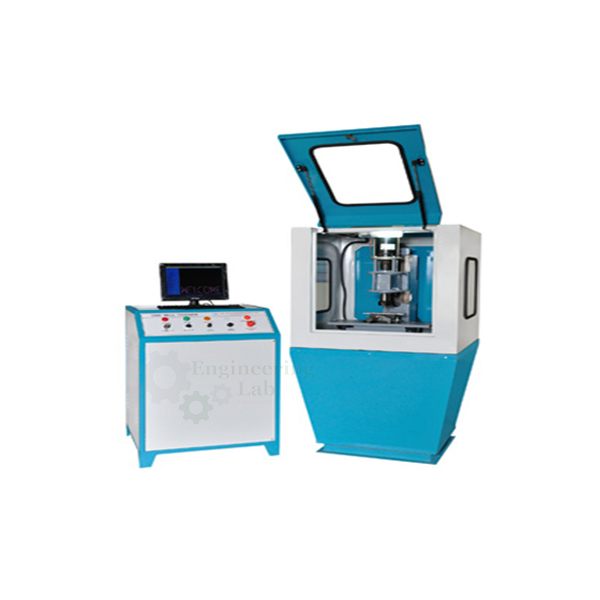

CNC Mill Trainer

Product Code : EL-CACLE-10871

CNC Mill Trainer (code EL-CACLE-10871) is a CNC milling machine used for training in 3-axis computer numerical control milling, with canned cycles for drilling, peck drilling and slot milling. It has a 500 × 200 mm table with 10 mm T-slot, travels of 200, 160 and 190 mm on X, Y and Z, a 0.5 HP spindle running at 100-1500 RPM and DC stepper motor drive on all axes, with a 0.005 mm least count.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the CNC Mill Trainer Used For?

CNC milling removes material with a rotating cylindrical cutter while the controller moves the work and tool along programmed paths, so the same part can be repeated from one program. On this trainer students write programs in G and M codes with F, I, J and K words, enter them from the keyboard or a PC, and prove them in jog, single block and auto modes before cutting. Canned cycles cover drilling, peck drilling and slot milling, circular interpolation in the X, Y plane produces arcs, and the limit switches, tool sequence check and emergency stop guard against errors while cuts of up to 0.5 mm depth are taken.

What to Specify When Ordering

• Quantity — the number of CNC mill trainers required.

Frequently Asked Questions

What are the table size and axis travels?
The table measures approximately 500 × 200 mm with a 10 mm T-slot, and the axes travel 200 mm in X, 160 mm in Y and 190 mm in Z.

What spindle does the trainer have?
The spindle is rated at 0.5 HP and runs from 100 to 1500 RPM, with a manually operated MT2 taper collet holder for the cutting tools.

How are programs entered and run?
Programs using G, M, F, I, J and K codes are entered through the keyboard or via a PC, and they can be executed in single block, auto or jog mode.

What safety features are included?
Axis limit switches act as safety interlocks, an improper or faulty tool operation sequence is detected by the control, and an emergency stop is provided on the machine.

What feed rates and resolution does it offer?
Feed rate is 0 to 200 mm/min with a rapid traverse rate of 400 mm/min, and the least count is 0.005 mm, with DC stepper motors driving all three axes.

What power supply and floor space does it need?
It runs on 230 V, 50 Hz and measures approximately 800 × 600 × 1000 mm (L × W × H), with a machine weight of about 180 kg.

OEM Manufacturer

Buyers of the CNC Mill Trainer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests CAD and CAM laboratory machines and trainers, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
