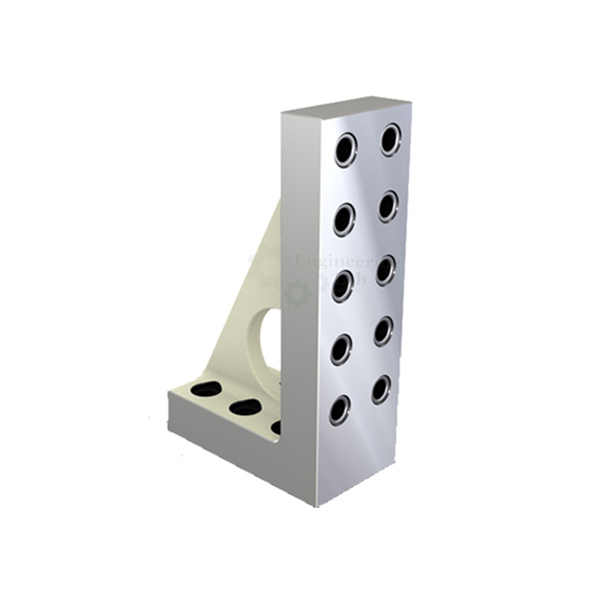

Angle Plate
Product Code : EL-MAILE-10822
Angle Plate (code EL-MAILE-10822) is a cast iron workholding plate with two faces at right angles, used to keep a work piece square to the table during marking-out and machine set-ups. It is a welded plate of 6 × 5 × 4-1/2 inch, made of stabilised, stress-relieved high tensile cast iron, with its two faces square within 0.002 inch per 6 inch and slots for clamping work to it and it to a machine bed.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Holding the work piece square to the table during marking-out operations |
| Type | Welded angle plate |
| Size | 6 × 5 × 4-1/2 inch |
| Material | Close-grained, high tensile cast iron |
| Treatment | Stabilised and stress relieved, to prevent further movement or distortion |
| Squareness | Two faces square within 0.002 inch per 6 inch |
| Slots | Slotted holes or T bolt slots machined into the surfaces, for clamping work to the plate and the plate to a fixture base, machine bed or worktable |
| Adjustable version | Adjustable angle plates also available for work that must be inclined, usually towards a milling cutter |
| Standards | BS 5535 Grade B |
| Product code | EL-MAILE-10822 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Angle Plate Used For?
An angle plate gives a reference face at right angles to the surface plate or machine table, so that a part clamped to its upright face is held square while lines are scribed on it or while it is drilled or milled. The user bolts the plate to the table through its T bolt slots, clamps the work piece against the vertical face and marks out or machines it with the right-angle relationship already set. The two faces are square within 0.002 inch per 6 inch, and the standard listed for it is BS 5535 Grade B.
What to Specify When Ordering
- Quantity — the number of angle plates required.
Frequently Asked Questions
What size is the Angle Plate?
It measures 6 inch × 5 inch × 4-1/2 inch and is of welded construction in high tensile, close-grained cast iron.
How square are the faces?
The two faces are square within 0.002 inch per 6 inch, so work clamped to them is held at right angles to the table.
Why is the cast iron stress relieved?
The material is stabilised and stress relieved so that it does not move or distort further after machining, which keeps the faces square over time.
How is work fastened to the plate?
Slotted holes or T bolt slots machined into the surfaces let work pieces be clamped to the plate and the plate be bolted to a fixture base, machine bed or worktable.
Which standard is listed for it?
The standard listed for it is BS 5535 Grade B, which is given alongside the plate's cast iron construction.
Is there a version for inclined work?
Yes. Adjustable angle plates are also available, for work that has to be tilted at an angle, usually towards a milling cutter.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Angle Plate at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Measuring Instruments
- Surface Plate — hand-scraped cast iron reference plate for inspection and marking out, with Rexine cover.
- Engineering Square — all-metal machinist square with steel blade fixed at 90° to a thicker stock and burr notch.
- Combination Square — 12 in rule with square, centre and protractor heads for 90° and 45° layout work.
See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of angle plates required and the delivery location through the contact page; the Add To Cart button on this page also adds the Angle Plate to an enquiry.
