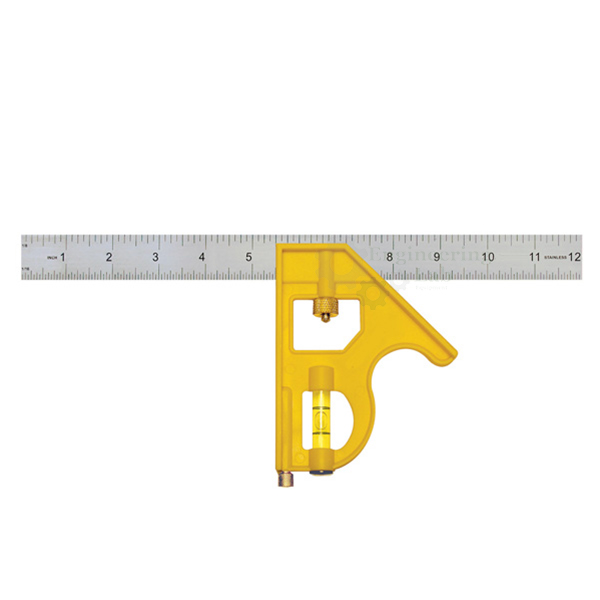

Combination Square
Product Code : EL-MAILE-10867
Combination Square (code EL-MAILE-10867) is a multi-purpose measuring and marking tool for woodworking, stonemasonry and metalworking, made up of a ruler and interchangeable heads used to lay out or check 90° and 45° angles. It has a 12 in (305 mm) blade graduated in 1/32, 1/16 and 1/8 in, a square head with a stored scribe point, a centre square for finding the centre of round bars, and a protractor head with a level.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Blade length | 12 in (305 mm) |
| Graduation | 1/32, 1/16 and 1/8 in |
| Square | 45° and 90° |
| Square head | Lays out or checks 90° and 45° angles; 45° commonly used for mitre joints |
| Scribe point | Included, stored in a drilled hole in the square base, for marking the work surface |
| Centre square | Two cast iron legs; the rule passes through its centre so a centre line can be scribed on a round bar or dowel |
| Protractor head | Allows angles to be set and measured between the base and the ruler |
| Level | Rudimentary level in the protractor head and the 45° holder |
| Depth gauge | Moving and setting the head allows use as a depth gauge or to transfer dimensions |
| Round work | Used to find the centre of round jobs |
| Product code | EL-MAILE-10867 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Combination Square Used For?
Combination squares are used for layout and checking at the bench. With the square head against the edge of the work, the blade gives a 90° line or checks that a face is square, and the 45° face sets out mitre joints. To find the centre of a round bar or dowel, the legs of the centre square are placed against the bar and a line is scribed along the rule; a second line drawn at another position crosses the first near the centre. The sliding head also acts as a depth gauge or transfers a dimension, and the protractor head sets other angles.
What to Specify When Ordering
- Quantity — the number of combination squares required.
Frequently Asked Questions
What angles can the combination square check?
The square head lays out or checks 90° and 45° angles, the 45° angle being used commonly for mitre joints, and the protractor head sets other angles.
How is the blade graduated?
The blade is 12 in (305 mm) long and is graduated in 1/32, 1/16 and 1/8 in increments along its length.
How does it find the centre of a round bar?
The rule is passed through the centre square and its two cast iron legs are placed against the bar; lines scribed at two positions intersect near the centre.
Can it be used as a depth gauge?
Yes. Moving and setting the head along the blade lets it act as a depth gauge or transfer dimensions from one part to another.
Is there a level or scriber?
A rudimentary level is built into the protractor head and the 45° holder, and a scribe point is stored in a drilled hole in the square base for marking.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Combination Square at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
