Lathe Tool Dynamometer
Product Code : EL-MAILE-10863

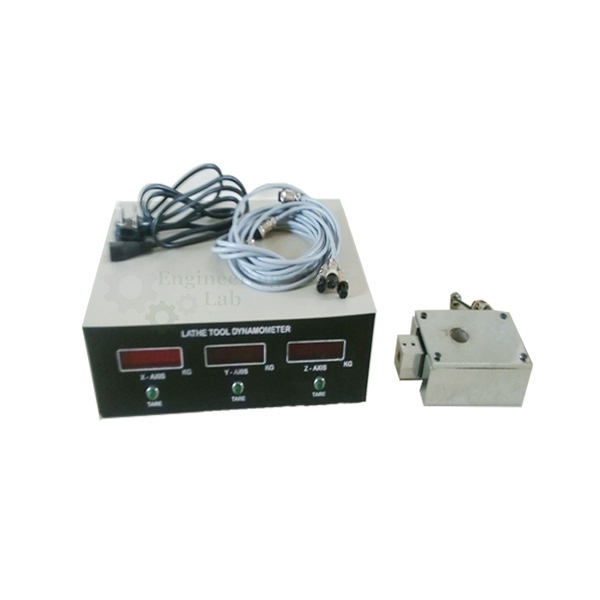

Lathe Tool Dynamometer (code EL-MAILE-10863) is a strain gauge based instrument that mounts on any conventional lathe to measure the cutting forces in the X, Y and Z directions at the same time, shown on three independent 3 digit LED displays. It takes a 20 mm square tool, has a capacity of up to 500 Kgf in each direction with 1 kg resolution, runs on 230V 50 Hz and is supplied with one 20 mm HSS tool bit.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Mounting | Mounts on any conventional lathe machine |
| Mounting hole | 25 mm dia. hole to mount the sensor on the tool post |
| Capacity | Up to 500 Kgf in X, Y and Z direction; other capacities as per customer requirement |
| Tool size | 20 mm square |
| Sensor type | Strain gauge based |
| Housing | Metal enclosure with chrome plating |
| Display | 3 independent 3 digit LED displays for X, Y and Z force |
| Resolution | 1 kg for all 3 components |
| Zero balancing | Coarse and fine potentiometer on front panel |
| Recorder output | Analog output provided to connect any recorder or data logger |
| Connection | 9 pin D connector with shielded cable, 3 metre length |
| Power | 230V 50 Hz |
| Enclosure | Powder coated metal box, 400 (L) × 300 (W) × 100 (H) |
| Accessories | 20 mm HSS tool bit, 1 No. |
| Product code | EL-MAILE-10863 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Lathe Tool Dynamometer Used For?
In turning, the tool is pushed back by three force components: the main cutting or tangential force, the feed force along the axis and the radial force. With the dynamometer clamped on the tool post and the tool fitted, students take cuts at different speeds, feeds and depths of cut on different materials and read the X, Y and Z forces together on the three displays. Comparing the readings shows how each parameter changes the cutting load, so the optimum feed, speed and depth of cut can be studied, and the analog output can feed a recorder or data logger for continuous traces.
What to Specify When Ordering
- Quantity — the number of dynamometers required.
- Capacity — up to 500 Kgf in each direction as listed, or the other capacity required.
Frequently Asked Questions
Which forces does the Lathe Tool Dynamometer measure?
It measures the cutting forces in the X, Y and Z directions simultaneously, each shown on its own 3 digit LED display.
What capacity and resolution does it have?
The capacity is up to 500 Kgf in each of the X, Y and Z directions, with a resolution of 1 kg for all three components; other capacities are available.
How is it fitted to the lathe?
It mounts on any conventional lathe; a 25 mm dia. hole mounts the sensor on the tool post, and it takes a 20 mm square tool.
Can the readings be recorded?
Yes. An analog output connects any recorder or data logger, and the sensor links to the indicator through a 9 pin D connector with a 3 metre shielded cable.
What is the instrument used to study?
It is used to study and analyse the optimum feed, speed and depth of cut on different materials by measuring how the cutting forces change.
What power supply and accessories are included?
The unit runs on a 230V 50 Hz supply and is supplied with one 20 mm HSS tool bit as its accessory.
OEM Manufacturer
The Lathe Tool Dynamometer is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Measuring Instruments
- Drill Tool Dynamometer — two-channel thrust and torque meter for drilling up to 20 mm, 0 to 200 Kg thrust.
- Milling Tool Dynamometer — 500 Kg three-component cutting force meter for milling machines, supplied with a 4 in vise.
- Lathe Tool Dynamometers — cutting force set for conventional lathes reading X, Y and Z up to 500 Kgf on LED displays.
See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of dynamometers and the force capacity required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
