Ball Penetration Apparatus
Product Code : EL-CTLE-10314

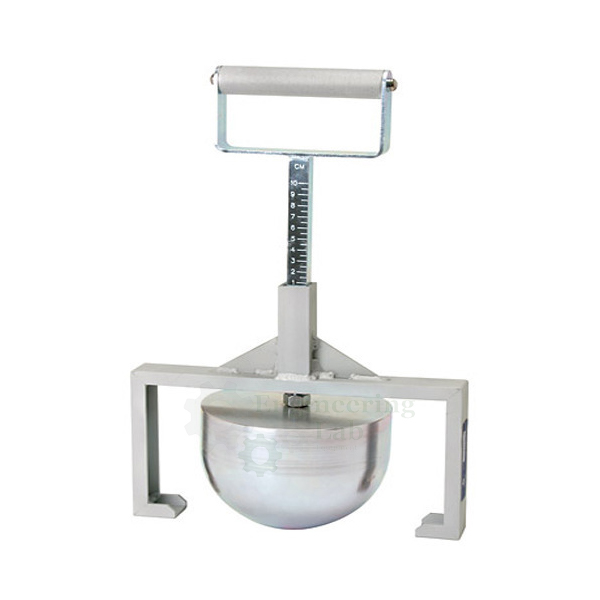

Ball Penetration Apparatus (code EL-CTLE-10314) is a Kelly ball test set for determining the workability of fresh Portland cement concrete, where doubling the Kelly ball reading gives roughly the slump. Its 15 kg cylinder, ball-shaped at the bottom and fitted with a handle, sinks into the concrete while a strip frame guides the handle and acts as the datum for penetration, and the handle, graduated in mm, allows readings to the nearest 0.5 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Test | Kelly ball test for workability of Portland cement concrete |
| Relation to slump | Twice the Kelly ball reading approximately equals the slump |
| Ball | Cylinder with a ball shaped bottom and handle, together weighing 15 kg |
| Guide | Strip frame guides the handle and serves as reference for the depth of penetration |
| Handle scale | Graduated in mm |
| Reading | Penetration recorded to the nearest 0.5 mm |
| Standards | ASTM C-360 |
| Product code | EL-CTLE-10314 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Ball Penetration Apparatus Used For?
The Kelly ball test measures how far a heavy ball sinks into fresh concrete under its own weight, which reflects the consistency of the mix, and it can be made on concrete in the forms or in a container without filling a cone. The strip frame is set across the levelled concrete surface, the ball is lowered until it just touches the surface and is then released; the handle slides down through the frame and the depth of penetration is read on its mm scale. Doubling the reading gives an approximate slump value. The standard listed for it is ASTM C-360.
What to Specify When Ordering
- Quantity — the number of ball penetration sets required.
Frequently Asked Questions
What does the Kelly ball reading tell the user?
The depth to which the ball sinks indicates the workability of the concrete, and twice the Kelly ball reading is approximately equal to the slump of the same mix.
How heavy are the ball and handle?
The cylinder with its ball-shaped bottom and the handle weigh 15 kg together, and that weight drives the ball into the fresh concrete.
How is the depth of penetration measured?
A strip frame guides the handle and serves as the reference level, and the handle is graduated in mm so penetration can be recorded to the nearest 0.5 mm.
Which standard is listed for the ball penetration test?
The standard listed for it is ASTM C-360, for the ball penetration test on fresh Portland cement concrete.
OEM Manufacturer
The Ball Penetration Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Concrete Testing Equipment
- Tamping Bar — steel bar of 25 mm square section, 380 mm long, with handle for compacting cube concrete.
- Electronic Concrete Test Hammer (Schmidt Hammer) — electronic hammer for non-destructive checks of hardened concrete strength, uniformity and weak spots.
- Tensile Strength Tester (Electrically Operated) — 900 kg double lever briquette tester with electrically driven sliding weight and failure cut-off switch.
- Compression Testing Machine Hand Operated — hand-operated C channel load frame with self-aligning upper platen, offered from 50 kN to 3000 kN.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of ball penetration sets required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
