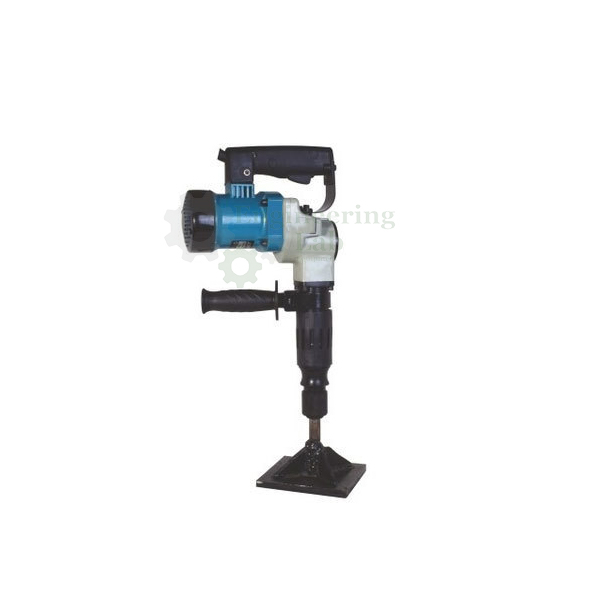

DLC Vibrating Hammer for Concrete Mould
Product Code : EL-CTLE-10309
DLC Vibrating Hammer for Concrete Mould (code EL-CTLE-10309) is a vibratory hammer used to compact concrete samples in a mould by vibration instead of impact hammering, and it is also listed for the bleeding test on freshly mixed concrete. It comes with 1 tamping foot and 1 shank, measures 290 × 255 × 350 mm and weighs approximately 6 kg.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Vibratory hammer |
| Use | Compaction of concrete samples in a mould |
| Bleeding test | Listed for finding the relative quantity of bleed water from freshly mixed concrete |
| Compaction method | Vibratory, as an alternative to impact hammering |
| Supplied with | 1 tamping foot and 1 shank |
| Dimensions | 290 × 255 × 350 mm |
| Weight | Approx. 6 kg |
| Standards | ASTM C 232; EN 480-4 |
| Product code | EL-CTLE-10309 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the DLC Vibrating Hammer for Concrete Mould Used For?
DLC, dry lean concrete, is a stiff, low-cement mix laid as a base under concrete road pavements, and it is hard to compact fully in a mould by hand rodding. The hammer is fitted with its shank and tamping foot, held on the concrete in the mould and run until the layer is compacted, after which the next layer is added and the process repeated. Vibration rather than repeated blows does the compacting work. The hammer is also listed for the bleeding test, which finds how much mixing water rises out of fresh concrete after placing. The standards listed for the hammer are ASTM C 232 and EN 480-4.
What to Specify When Ordering
- Quantity — the number of vibrating hammers required.
Frequently Asked Questions
What is the DLC vibrating hammer used for?
It compacts concrete samples in a mould by vibration, and it is also listed for use in the bleeding test, which measures the water that rises out of fresh concrete.
What fittings come with the hammer?
Each vibratory hammer is supplied with 1 tamping foot and 1 shank, which are fitted for compacting the concrete in the mould.
How large and heavy is the vibrating hammer?
The vibrating hammer measures 290 × 255 × 350 mm overall, and its weight is given as approximately 6 kg.
How does vibratory compaction differ from impact hammering?
A vibratory hammer compacts the concrete by rapid vibration through the tamping foot instead of by separate heavy blows, which is the method it is set against.
Which standards are listed for the vibrating hammer?
The standards listed are ASTM C 232 and EN 480-4 for this vibratory hammer with its tamping foot and shank.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the DLC Vibrating Hammer for Concrete Mould at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
