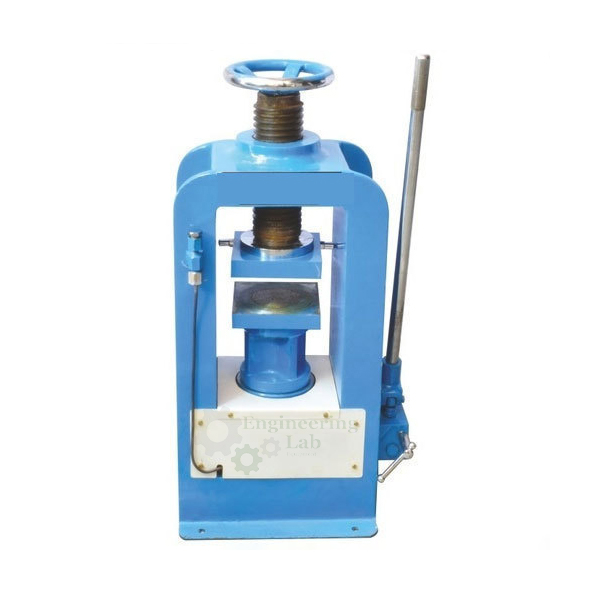

Compression Testing Machine Hand Operated
Product Code : EL-CTLE-10920
Compression Testing Machine Hand Operated (code EL-CTLE-10920) is a hydraulic load frame used for compression testing of specimens, built from C channels welded at the top and bottom with a hydraulic jack at the centre of the base. The upper platen hangs from a lead screw and has a spherical seat for self-alignment, the lower platen is grooved for placing the specimen, and the machine is offered in ranges from 50 kN to 3000 kN.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Load frame | C channels welded at the top and the bottom, to withstand high loads |
| Hydraulic jack | Fitted at the centre of the base of the load frame |
| Lower platen | Fitted with a spacer block over the jack using a centering pin; grooved to place the specimen correctly |
| Upper platen | Fixed to the lower end of a lead screw passing through the top of the frame; spherical seat for self-alignment |
| Platen finish | Machined, hardened and polished |
| Load ranges | 50 kN to 3000 kN |
| Standards | IS 516, BS 1881 |
| Product code | EL-CTLE-10920 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Compression Testing Machine Hand Operated Used For?
Compressive strength is the property most often specified for concrete, and it is found by loading a specimen until it fails and dividing the maximum load by the loaded area. Here the operator sets the specimen on the grooved lower platen, using the spacer block where needed, and winds the lead screw down until the upper platen meets the specimen and its spherical seat settles. The hydraulic jack is then pumped by hand to apply load until failure, which makes the machine usable where no power supply is available; the standards listed are IS 516 and BS 1881.
What to Specify When Ordering
- Quantity — the number of hand operated machines required.
- Capacity — the load range needed, between 50 kN and 3000 kN.
Frequently Asked Questions
What load ranges are offered?
The machine is offered in ranges from 50 kN up to 3000 kN, so the capacity can be chosen to suit the strength and size of the specimens tested.
How is the frame built?
The load frame is made of C channels welded at both the top and the bottom, with the hydraulic jack fitted at the centre of the base.
How does the upper platen align with the specimen?
The upper platen is fixed to the lower end of a lead screw that passes through the top of the frame, and its spherical seat lets it self-align with the specimen face.
How is the specimen positioned?
The lower platen and spacer block are located over the jack with a centering pin, and grooves on the lower platen help place the specimen correctly at the centre.
Which standards are listed for it?
The standards listed are IS 516 and BS 1881, and the platens of the machine are machined, hardened and polished.
What should overseas buyers include in an enquiry?
Overseas buyers should give the quantity and load range, the destination country and port or city, delivery terms such as FOB or CIF, packing requirements and any tender reference.
OEM Manufacturer
The Compression Testing Machine Hand Operated is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
