Automatic Digital Compression Testing Machine
Product Code : EL-CTLE-10281

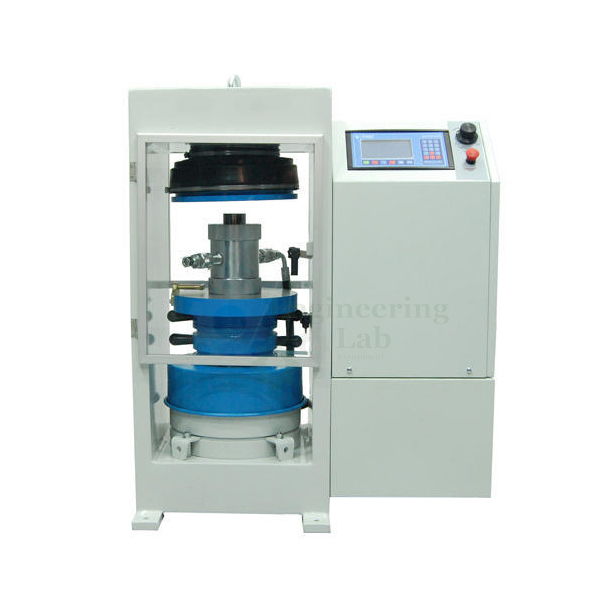

Automatic Digital Compression Testing Machine (code EL-CTLE-10281) is a concrete compression tester of 3000 kN capacity, made up of a load frame, a power pack and a data acquisition and control system that completes the test cycle on its own after the specimen details are entered. Its frame holds 100 and 150 mm cubes and cylinders up to 320 mm long × 160 mm diameter, while a 750 W dual stage pump with 25 litre oil capacity loads them at rates from 1 kN/sec up to 20 kN/sec.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Capacity | 3000 kN |
| Application | Compression testing of concrete samples |
| Main parts | Frame, power pack, and data acquisition & control system |
| Test cycle | Fully automatic, with standard rapid approach; after the specimen parameters are entered, pressing the start button runs the test to completion |
| Readout | Closed loop digital readout |
| Control unit | Graphical LCD data acquisition and control system with menu driven software |
| On-screen data | Load vs time plot and instantaneous load rate |
| Load rate control | Within ±5 from 1 kN/sec to 20 kN/sec |
| Measuring class | Class 1 from 10% of the full range |
| Stress calculation | Ready stress calculation for EN 12390-3, EN 12390-5, EN 12390-6, EN 1338, EN 1340 and EN 196 |
| Units | SI, Metric and Imperial |
| Test storage | Up to 256 tests |
| Printer and PC output | RS 232 output for printer or PC |
| PC software | Free of charge PC software for test control and advanced report printout |
| Standards | EN 12390-4, BS 1881 and ASTM C39 (with suitable platen set) |
| Load frame | |
| Construction | Welded steel fabrication, high stability welded assembly; ball seating assembly and frame tested for stability |
| Upper platen | Ball-seated, positively located on the loading ram |
| Loading ram | Single acting, upstroking, with a cover protecting it from debris |
| Over travel protection | Stops the motor when maximum platen travel is reached |
| Piston stroke | 50 mm, with safety limit switch |
| Lower platen | Marked for centering cube and cylinder specimens |
| Platen hardness | Min. 55 HRC |
| Specimen capacity | Concrete cylinders up to 320 mm long × 160 mm diameter; 100 and 150 mm cubes |
| Distance pieces | 30 mm, 50 mm and 90 mm supplied; extra distance pieces to be ordered for samples shorter than 150 mm |
| Safety doors | Flexi glass front and rear removable safety doors, included |
| Data acquisition and control system | |
| Function | Controls the machine and processes data from load cells or pressure transducers installed on the compression frame |
| Housing | Light alloy |
| Display | 240 × 120 pixel blue-white graphic LCD with real time load vs time graph |
| Operation | All interaction through the front control panel by menu-driven procedures |
| Resolution | 65.000 points |
| Processor | CPU card, 32 bit ARM RISC architecture microprocessor |
| Keypad | 18 key touch membrane keyboard with 6 main function keys |
| Test modes | Standalone full automatic testing; manual tests when required |
| Specimen entry | Sample type and dimensions entered with respect to the standard |
| Memory | Permanent memory for up to 256 test results; results can also be downloaded to a PC in Labtest software format |
| Communication | RS232C connection at 57600 baud (Ethernet optional); one RS232 serial port for PC or printer |
| Input channels | Two analogue channels for load cell or pressure transducer |
| Language | English |
| Frame control | Can control two frames (compression and flexural) |
| Optional software | Dedicated package for further online data processing, database management and report printing |
| Power pack | |
| Pump type | Dual stage: high delivery low pressure pump for rapid approach; low delivery high pressure radial piston pump for test execution |
| Motor power | 750 W |
| Oil capacity | 25 litre |
| Fast approach speed | 60-100 mm/min |
| Loading range | 1 kN/sec to 20 kN/sec |
| Safety features | |
| Overload valve | Maximum pressure valve to avoid machine overloading |
| Ram travel switch | Prevents excessive piston travel |
| Guards | Front and rear gates with transparent flexiglass |
| Emergency stop | Emergency stop button |
| Load limit | Software controlled maximum load value |
| Supply | |
| Product code | EL-CTLE-10281 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Automatic Digital Compression Testing Machine Used For?
Crushing hardened concrete cubes and cylinders gives the maximum load each will carry; divided by the loaded area, this is the compressive strength used to accept or reject a mix. Before a test the specimen is placed on the lower platen by its centring marks, short samples are raised on distance pieces and the front and rear doors are closed. The control panel takes the specimen type and size, the ram rises at rapid approach and then loads at the chosen rate up to failure, and the stress is shown beside the load-time curve. Results stay in memory or pass to a PC or printer, and a flexural frame can be connected too. The standards listed are EN 12390-4, BS 1881 and ASTM C39 (with suitable platen set).
What to Specify When Ordering
- Quantity — the number of compression machines required.
- Platen set — the platen set to suit the specimens, from 100 or 150 mm cubes to cylinders up to 320 mm × 160 mm.
- Extra distance pieces — additional pieces for samples shorter than 150 mm, beyond the 30, 50 and 90 mm pieces supplied.
- Ethernet and software — whether the optional Ethernet connection and the dedicated data processing package are needed.
Frequently Asked Questions
What is the capacity and measuring class of this compression machine?
The machine has a capacity of 3000 kN and measures in Class 1 from 10% of the full range, with results shown in SI, Metric or Imperial units.
How large a specimen will the load frame take?
Cylinders up to 320 mm long and 160 mm in diameter fit the frame, as do 100 mm and 150 mm cubes. Distance pieces of 30, 50 and 90 mm come with it; samples shorter than 150 mm need extra pieces.
What happens once the start button is pressed?
With the specimen parameters already entered, the ram makes a rapid approach and then loads the specimen at the controlled rate, anywhere from 1 kN/sec to 20 kN/sec, plotting load against time until the test is complete.
What does the control unit show and keep?
Its 240 × 120 pixel graphic LCD shows a real time load vs time graph and the instantaneous load rate, and its permanent memory keeps up to 256 test results for later transfer to a PC or printer.
Which stress calculations are built into the software?
Two groups apply: the standards listed for the machine are EN 12390-4, BS 1881 and ASTM C39 with a suitable platen set, and those listed for built-in stress calculation are EN 12390-3, EN 12390-5, EN 12390-6, EN 1338, EN 1340 and EN 196.
What protects the operator and the machine during a test?
Overloading is prevented by a maximum pressure valve, and excess piston travel by a ram travel switch and the 50 mm stroke limit switch. The operator is shielded by transparent flexiglass gates front and rear, backed by an emergency stop button and a software-set load ceiling.
OEM Manufacturer
The Automatic Digital Compression Testing Machine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
