Hydraulic Jacks
Product Code : EL-CTLE-10928

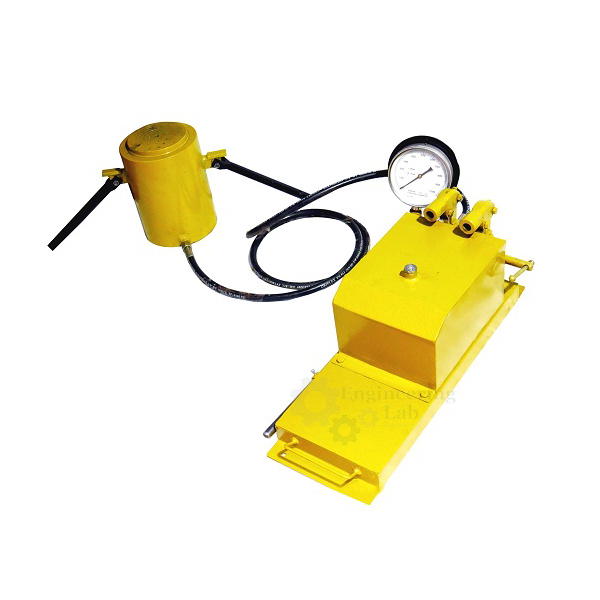

Hydraulic Jacks (code EL-CTLE-10928) are manually pumped loading jacks used to apply loads in field investigation, pile work in the field, tensioning of wires in pre-stressed structures and loading of structural members to study their deformation. Each jack has a piston travel of 50 mm, those up to 1000 kN capacity have retraction springs, and the jacks come complete with a manually operated pumping unit, a bourdon tube type load gauge and a high-pressure flexible hose pipe.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Applications | Field investigation; determination of piles in the field; tensioning of wires in pre-stressed structures; loading of members of any structure for deformation characteristics |
| Piston travel | 50 mm |
| Retraction springs | Provided on jacks up to 1000 kN capacity |
| Pumping unit | Manually operated, supplied with the jack |
| Load gauge | Bourdon tube type, fitted to the pumping unit |
| Hose | High-pressure flexible hose pipe |
| Product code | EL-CTLE-10928 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Hydraulic Jacks Used For?
A hydraulic jack turns the modest force of a hand pump into a large thrust, so heavy loads can be applied in the field or in a test rig where a testing machine cannot be used. The jack is placed between the member and a reaction, the hose links it to the pumping unit, and the operator pumps to extend the piston, reading the applied load on the bourdon tube gauge. Typical work includes field investigation, pile work, tensioning wires in pre-stressed structures and loading structural members to observe their deformation, and springs return the piston on jacks up to 1000 kN.
What to Specify When Ordering
- Quantity — the number of jacks required.
- Capacity — the jack capacity needed for the work, noting that jacks up to 1000 kN have retraction springs.
Frequently Asked Questions
Where are the jacks used?
They are used for field investigation, determination of piles in the field, tensioning of wires in pre-stressed structures and loading of structural members to find their deformation characteristics.
What is the piston travel?
The jacks have a piston travel of 50 mm, and jacks up to 1000 kN capacity are fitted with retraction springs that return the piston.
What is supplied with each jack?
Each jack is supplied complete with a manually operated pumping unit fitted with a bourdon tube type load gauge and a high-pressure flexible hose pipe.
How is the applied load measured?
The load is read from the bourdon tube type gauge on the pumping unit, which responds to the oil pressure developed in the jack as it is pumped.
What does an export enquiry for jacks need?
It should give the number and capacity of jacks, the destination country and port or city, delivery terms such as FOB or CIF, packing requirements and any tender reference.
OEM Manufacturer
Buyers of the Hydraulic Jacks deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
