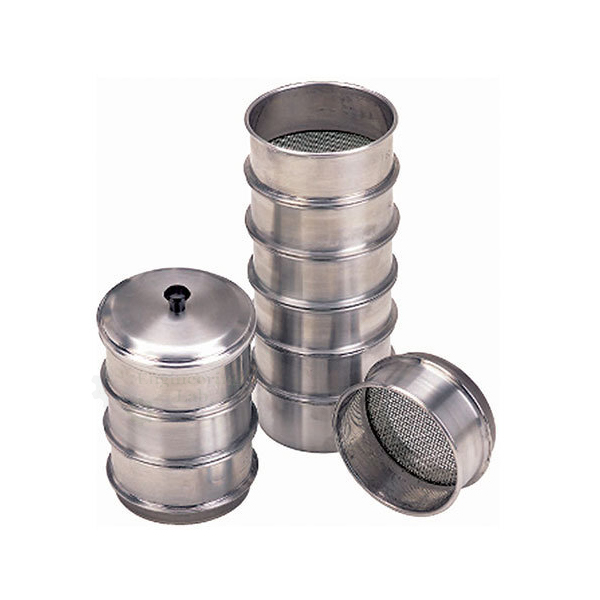

G. I. Frame Sieves

Product Code : EL-STLE-10951

G. I. Frame Sieves (code EL-STLE-10951) are woven wire mesh test sieves used for wet testing of various materials, letting a sample be sieved without loss of material. They come in 200 mm and 300 mm frame diameters as well as a 300 and 450 mm range, in full or half height, with apertures from 125 mm down to 20 microns, and are listed in sizes from 125 mm to 1.00 mm plus lid and pan.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Are the G. I. Frame Sieves Used For?

Wet sieving is used when fine particles cling to coarser grains or to each other, so that dry sieving would not separate them: the sample is washed through the sieve with water and the fines are carried away while the coarser fraction stays on the mesh. The operator chooses the aperture sizes needed for the grading, nests sieves of one diameter over the pan, washes the sample through them, and then dries and weighs what each sieve retains. Full height sieves hold larger samples, while half height sieves allow more sieves in a stack of the same height.

What to Specify When Ordering

• Quantity — how many sieves are wanted in each aperture size.
• Diameter and height — 200, 300 or 450 mm frame diameter, in the full or half height version.
• Aperture sizes — the sizes required from the list, 125 mm down to 1.00 mm, and whether a lid and pan are needed.
• Frame finish — brass or stainless steel, galvanized, or the powder coated or SS frame option.

Frequently Asked Questions

What are G. I. Frame Sieves used for?
They are used for wet testing of various materials, where the sample is sieved with water without any of the material being lost.

Which frame diameters are offered?
Frames are supplied in 200 mm and 300 mm diameters, and sieves of 300 mm and 450 mm diameter form a further range.

What aperture sizes can be supplied?
Apertures run from 125 mm down to 20 microns, and the listed sizes go from 125 mm through 4.75 mm and 2.36 mm down to 1.00 mm, with lid and pan.

Are half height sieves available?
Yes, the sieves are made in full height and half height versions, so the stack height can be chosen to suit the test.

What frame materials and finishes are available?
Woven wire mesh sieves are offered with frames of brass or stainless steel, galvanized, and powder coated or SS frames are also available.

Which standard is listed for these sieves?
The standard listed for these sieves is IS 460 (Part I), the Indian specification for wire cloth test sieves.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the G. I. Frame Sieves at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.

Related Soil Testing Equipment

• Brass Frame Sieves — full-depth test sieves in 200 to 450 mm diameters with stainless steel frames and wire cloth.
• Sieve Shaker Rotap Type — motorised tapping sieve shaker with oil-immersed mechanism for up to 7 sieves of 150 or 200 mm.
• Sieve Shaker Hand Operated — bench-mounted hand wheel sieve shaker with gear-driven side-to-side carrier and fly wheel.
• Wet Sieve Shaker — belt driven wet sieving machine with water reservoir and holder for up to 7 sieves of 8 inch.

See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the frame diameter and height, how many of each aperture size, and the frame finish and the delivery location through the contact page; the Add To Cart button on this page also adds the G. I. Frame Sieves to an enquiry.
