Surface Soil Sampler
Product Code : EL-STLE-10394

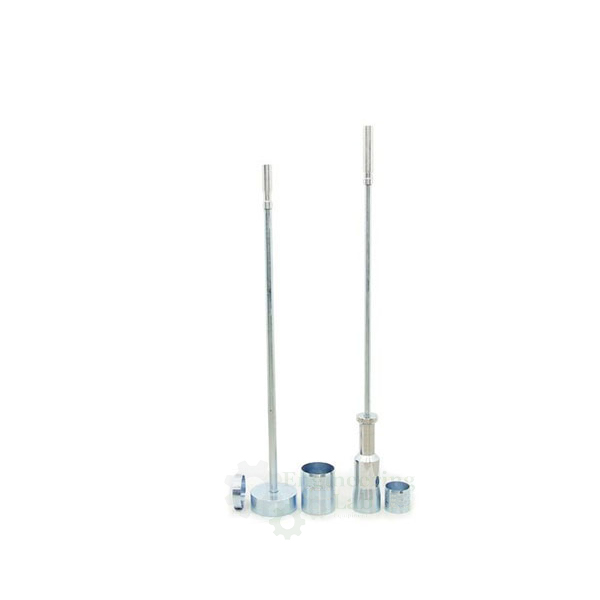

Surface Soil Sampler (code EL-STLE-10394) is a drive sampler for taking a standard volume of soil from the ground so that its in-situ density can be established. A 5 kg sliding drop hammer drives a corrosion-protected steel sampling tube of 73 mm ID × 66 mm high by striking a driving head fitted on its top, and the apparatus weighs approximately 10 kg.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Taking a standard volume sample from the ground to establish the in-situ density of soil |
| Hammer | Sliding weight drop hammer, 5 kg, falling freely onto the driving head |
| Sampling tube | 73 mm ID × 66 mm high |
| Material | Steel protected against corrosion |
| Weight | Approx. 10 kg |
| Standards | ASTM D 2937, CNR N. 22, BS 1377:9 |
| Product code | EL-STLE-10394 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Surface Soil Sampler Used For?
Because the sampling tube has a fixed internal volume, the density of the soil in place can be found by weighing the soil it holds. The tube is set upright on the prepared surface and the 5 kg hammer is lifted and dropped along its slide onto the driving head until the tube is driven in; it is then dug out, the soil is trimmed flush with both ends and weighed, and a moisture content determination gives the dry density. The standards listed are ASTM D 2937, CNR N. 22 and BS 1377:9.
What to Specify When Ordering
- Quantity — the number of surface soil samplers required.
Frequently Asked Questions
How is the sampling tube driven?
A 5 kg sliding weight drop hammer falls freely onto the driving head that sits on top of the sampling tube, forcing the tube into the ground.
What size is the sampling tube?
The tube is 73 mm in internal diameter and 66 mm high, giving a standard volume of soil for the density calculation.
What is the sampler made of?
It is made of steel that is protected against corrosion, and the complete apparatus weighs approximately 10 kg.
Which standards are given for this sampler?
The standards listed are ASTM D 2937, CNR N. 22 and BS 1377:9 for sampling soil to find its density in place.
OEM Manufacturer
Buyers of the Surface Soil Sampler deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
