Plastic Limit Set
Product Code : EL-STLE-10389

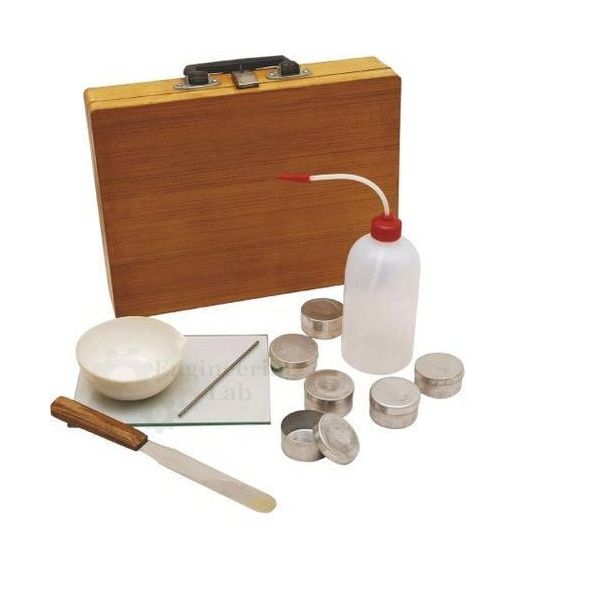

Plastic Limit Set (code EL-STLE-10389) is a set of apparatus for carrying out the plastic limit test on soil. It contains six moisture containers, a 20 cm × 15 cm glass plate with round ends, a 3 mm dia. × 150 mm brass or stainless steel rod, a 15 cm flexible spatula, a 150 mm dia. porcelain basin and a 500 ml plastic wash bottle, with a 500 × 500 × 10 mm glass plate offered at extra cost.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Plastic limit test on soil |
| Moisture containers | Set of 6 |
| Glass plate | 20 cm × 15 cm, with round ends |
| Reference rod | Brass or stainless steel, 3 mm dia. × 150 mm long |
| Spatula | Flexible, 15 cm |
| Porcelain basin | 150 mm dia. |
| Wash bottle | Plastic, 500 ml |
| Optional glass plate | 500 × 500 × 10 mm, at extra cost |
| Standards | IS 2720 (Part VII), ASTM D-42, BS 1377, AASHTO T 90 |
| Product code | EL-STLE-10389 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Plastic Limit Set Used For?
The plastic limit is the water content at which a thread of soil just begins to crumble when rolled down to about 3 mm diameter, and with the liquid limit it gives the plasticity index used to classify clays and silts. Soil mixed with water in the porcelain basin is rolled by hand on the glass plate into a thread, and the 3 mm rod serves as a guide to the thread diameter at which crumbling is judged. The crumbled thread is placed in the moisture containers, weighed, oven dried and weighed again, and the average water content is reported as the plastic limit.
What to Specify When Ordering
- Quantity — the number of plastic limit sets required.
- Rod material — brass or stainless steel for the 3 mm dia. × 150 mm rod.
- Glass plate — whether the larger 500 × 500 × 10 mm glass plate is wanted, at extra cost.
Frequently Asked Questions
What is supplied in the Plastic Limit Set?
One each of a set of 6 moisture containers, a glass plate, a brass or stainless steel rod, a flexible spatula, a porcelain basin and a plastic wash bottle.
What is the 3 mm rod for?
The 3 mm dia. × 150 mm rod is laid beside the soil thread as a comparison, so the operator can tell when the thread has been rolled down to 3 mm.
What size is the rolling plate?
The glass plate in the set measures 20 cm × 15 cm with round ends; a larger 500 × 500 × 10 mm glass plate can be supplied at extra cost.
Can the rod be supplied in stainless steel?
Yes. The rod is offered in brass or stainless steel, in both cases 3 mm in diameter and 150 mm long.
How is the plastic limit result used?
Together with the liquid limit, it gives the plasticity index of the soil, which is used to classify fine grained soils and to compare their plasticity.
Which standards does the set list?
For plastic limit testing with this set, the standards listed are IS 2720 (Part VII), ASTM D-42, BS 1377 and AASHTO T 90.
OEM Manufacturer
The Plastic Limit Set is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Soil Testing Equipment
- Liquid Limit Devices (Casagrande) — cam-operated brass cup liquid limit apparatus with blow counter, two grooving tools and height gauge.
- Shrinkage Limit Set — shrinkage dish, glass cup, three-prong Perspex plate and 25 ml cylinder set for shrinkage limit tests.
- Liquid Limit Penetrometers — cone penetrometer with digital 0.01 mm gauge for liquid limit and undrained shear strength of clays.
- Linear Shrinkage Mould — 140 mm long, 25 mm diameter mould for measuring the linear shrinkage of soil.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of sets, the rod material and whether the larger glass plate is required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
