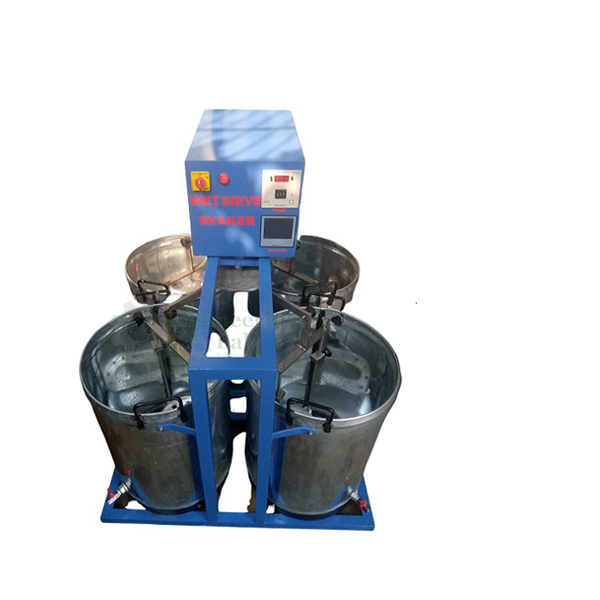

Wet Sieve Shaker
Product Code : EL-STLE-10952
Wet Sieve Shaker (code EL-STLE-10952) is a motor-driven machine for wet sieve testing of soil, giving the basic index information used to estimate strength and permeability and the first classification of granular soils. It has a water reservoir and a holder for up to 7 sieves of 8 inch diameter (150 mm or 200 mm), a 1/4 HP belt driven motor, a mild steel or stainless steel body and an optional automatic 0 - 60 minute timer.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Wet sieve testing of soil for basic index information used to estimate strength and permeability |
| Classification | First classification step for granular soils |
| Wash sieving | Alternative for wet wash sieving using a single tall-frame wet wash sieve |
| Construction | Mild steel / stainless steel |
| Sieve holder | Holds up to 7 sieves of 8 inch diameter (150 mm or 200 mm) |
| Sieve size | Up to 8 inches |
| Motor | 1/4 HP, belt driven |
| Accessories | Water reservoir and holder |
| Timer | Automatic, 0 - 60 minutes (optional) |
| Power supply | 230 / 240 volts |
| Capacity | 1 set, 2 sets or 4 sets of sieves |
| Key features | |
| Sieving motion | Sieving with 3-D effect |
| Measuring range | 20 µm to 10 mm |
| Sieving modes | Dry and wet sieving |
| Controls | Digital setting and control of sieving parameters |
| Noise | Low noise |
| Supply | |
| Product code | EL-STLE-10952 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Wet Sieve Shaker Used For?
Wet sieving washes the fine silt and clay particles through the sieves with water, which is needed when fines coat the larger grains or form lumps and dry sieving would not give repeatable results. The operator nests the sieves in the holder, places the soil on the top sieve and runs the shaker while water from the reservoir flows over the sample, setting the run time on the optional 0 - 60 minute timer where fitted. The washed fractions are dried and weighed, giving the grading used to classify granular soils and to estimate their strength and permeability.
What to Specify When Ordering
- Quantity — the number of wet sieve shakers required.
- Capacity — the 1 set, 2 set or 4 set version.
- Construction — mild steel or stainless steel.
- Timer — whether the optional automatic 0 - 60 minute timer is wanted.
Frequently Asked Questions
Why is wet sieving used for soil?
Wet sieving gives basic index information used to estimate strength and permeability, and it is chosen when fines cannot be separated with repeatable results by dry sieving.
How many sieves can be fitted?
The holder takes up to 7 sieves of 8 inch diameter (150 mm or 200 mm), and versions for 1, 2 or 4 sets of sieves are listed.
What drives the shaker?
A 1/4 HP belt driven motor drives the shaker, and the machine runs on a 230 / 240 volt power supply.
Is a timer fitted?
An automatic timer covering 0 - 60 minutes is available as an option, and the key features list digital setting and control of sieving parameters.
What particle size range does it cover?
Its measuring range is 20 µm to 10 mm, and it is suitable for both dry and wet sieving with sieves up to 8 inch.
What is the shaker made of?
The construction is mild steel or stainless steel, and the water reservoir and holder are listed as its accessories.
OEM Manufacturer
Buyers of the Wet Sieve Shaker deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests soil testing equipment for classification, compaction, density, shear and consolidation tests, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Soil Testing Equipment
- Sieve Shaker Rotap Type — motorised tapping sieve shaker with oil-immersed mechanism for up to 7 sieves of 150 or 200 mm.
- Electromagnetic Digital Sieve Shaker — electromagnetic vertical-motion shaker for 12 sieves of 200 mm or 8 of 300 mm, with timer.
- Brass Frame Sieves — full-depth test sieves in 200 to 450 mm diameters with stainless steel frames and wire cloth.
- G. I. Frame Sieves — woven wire test sieves for wet testing, 200 to 450 mm frames, 125 mm to 20 micron apertures.
See the full Soil Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other soil testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of shakers, the sieve set capacity, the construction material and whether the timer is needed and your delivery location through the contact page, or add the Wet Sieve Shaker to the enquiry cart from this page.
