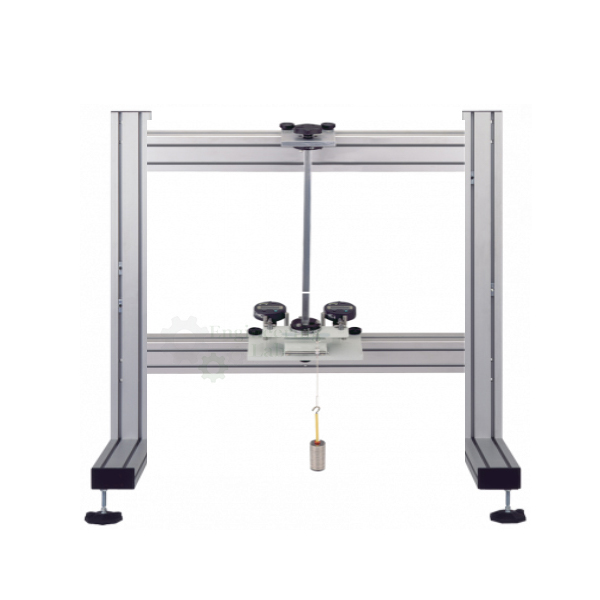

Unsymmetrical Bending Apparatus
Product Code : EL-SELE-10581
Unsymmetrical Bending Apparatus (code EL-SELE-10581) is an apparatus for the experimental and analytical study of deflections in unsymmetrical bending of a cantilever beam. An 80 cm long angle of 1 in × 1 in × 1/8 in section, or its metric equivalent, is clamped as a cantilever that can be rotated and set with its principal axis at any angle, and a 25 mm travel dial gauge with magnetic base, a supporting stand and a set of weights are supplied.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Experimental and analytical study of deflections for unsymmetrical bending of a cantilever beam |
| Beam | Angle section, 1 in × 1 in × 1/8 in or metric equivalent, 80 cm long, tied as a cantilever |
| End fixing | Fixed at one end; rotated in set intervals and clamped with the principal axis of the cross-section at any angle to the horizontal and vertical planes |
| Loading | Vertical load applied at the free end |
| Measurement | Horizontal and vertical deflection of the free end |
| Dial gauge | 25 mm travel, with magnetic base |
| Supplied with | Supporting stand and a set of weights |
| Product code | EL-SELE-10581 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Unsymmetrical Bending Apparatus Used For?
When a beam's principal axes are not aligned with the load, as with an angle section, a vertical load produces deflection both downwards and sideways, so the free end moves at an angle to the load. Students clamp the angle with its principal axis set at a chosen inclination, hang weights at the free end and measure the horizontal and vertical deflections with the dial gauge on its magnetic base. Repeating the test at other angles of rotation gives results that are compared with deflections calculated from the section's principal second moments of area.
What to Specify When Ordering
- Quantity — the number of unsymmetrical bending sets required.
Frequently Asked Questions
What does the Unsymmetrical Bending Apparatus demonstrate?
It is used for the experimental and analytical study of deflections when a cantilever beam bends unsymmetrically, with its principal axis inclined to the direction of load.
What beam section is used?
The beam is an angle of 1 in × 1 in × 1/8 in section, or its metric equivalent, 80 cm long and fixed at one end as a cantilever.
Can the orientation of the section be changed?
Yes. The beam can be rotated in set intervals and clamped so that the principal axis of its cross-section lies at any angle to the horizontal and vertical planes.
How are the deflections measured?
A vertical load is applied at the free end, and a dial gauge with 25 mm travel on a magnetic base measures the horizontal and vertical deflection there.
What is supplied with the apparatus?
The apparatus comes complete with a supporting stand, a set of weights and the 25 mm travel dial gauge with its magnetic base.
Why does an angle section bend sideways under a vertical load?
Its principal axes are inclined to the load direction, so the load has components about both axes and the beam deflects along both, not only in the plane of the load.
OEM Manufacturer
The Unsymmetrical Bending Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests structural engineering trainers for beams, frames, trusses and columns for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
