Dial Bore Gauge
Product Code : EL-MAILE-10843

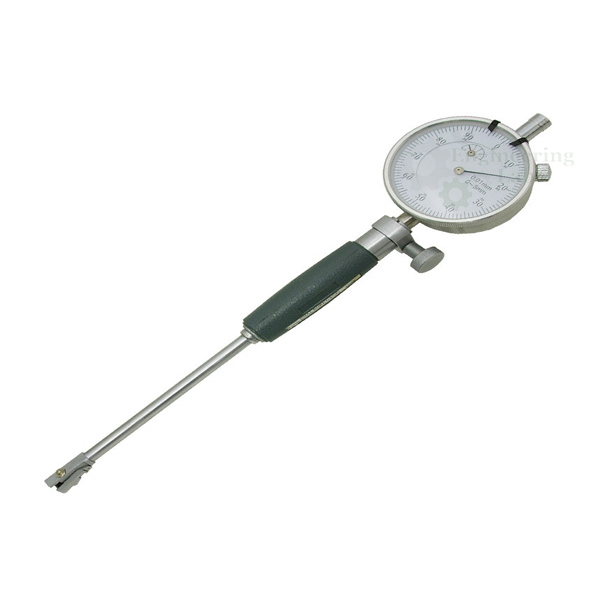

Dial Bore Gauge (code EL-MAILE-10843) is a set of dial-indicating bore gauges used to measure internal bore diameters, made up of a gauge for small bores from 10 mm to 18 mm, an 18-50 mm gauge and a third gauge covering 50-150 mm. Carbide-tipped stationary and moving anvils, an extra wide self-centralising bridge and a covered dial indicator are fitted, and the set comes in a wooden case with interchangeable anvils, extension rods and tools.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Set of dial bore gauges |
| Small bore gauge | 10 mm to 18 mm |
| Middle range gauge | 18-50 mm, a range for which two gauges of 18-35 mm and 35-60 mm dia. would generally be needed |
| Third gauge | 50-150 mm |
| Anvils | Carbide-tipped stationary and moving anvils for wear resistance |
| Bridge | Extra wide, for automatic centring in the bore |
| Self-centralising | Allows measurement with a minimum of skill |
| Dial indicator | Fully protected by a cover |
| Interchangeable anvils | Supplied in different sizes |
| Case | Wooden case containing measurement anvils, extension rods and necessary tools |
| Supply | Packed as a set with the accessories needed for the complete range |
| Product code | EL-MAILE-10843 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Dial Bore Gauge Used For?
A dial bore gauge measures the diameter of a hole by comparison: the gauge is first set to a known size, then inserted into the bore and rocked gently across it, and the smallest reading on the dial shows how far the bore differs from the set size. The extra wide bridge centres the gauge in the bore automatically, so consistent readings need little skill. With its interchangeable anvils and extension rods, the three gauges in the set take bores from 10 mm up to 150 mm, which suits inspection of machined bores, cylinders and housings in workshops and teaching laboratories.
What to Specify When Ordering
- Quantity — the number of bore gauge sets required.
Frequently Asked Questions
What bore range does the set cover?
The set covers small bores from 10 mm to 18 mm, a middle range of 18-50 mm, and a third gauge for bores of 50-150 mm.
Why is the 18-50 mm gauge useful?
It covers in one gauge a range that would generally need two bore gauges, of 18-35 mm and 35-60 mm dia., so fewer gauges have to be kept.
How does the gauge centre itself in the bore?
An extra wide bridge gives automatic centring, and the self-centralising feature means a measurement can be made with a minimum of skill.
What are the anvils made of?
The stationary and moving anvils are carbide-tipped for wear resistance, and interchangeable anvils in different sizes are supplied with the set.
What is supplied in the case?
The wooden case holds the measurement anvils, extension rods and the necessary tools, so the set is packed with the accessories for its complete range.
What should an export enquiry include?
Give the quantity of sets, the destination country and port or city, delivery terms such as FOB or CIF, any packing requirements and any tender reference.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Dial Bore Gauge at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Measuring Instruments
- Digital Bore Gauge — absolute encoder electronic gauge for 36–150 mm bores up to 10 in deep, with IP54 protection.
- Telescopic Feeler Gauge — 2-1/4 to 3-1/2 inch telescoping bore gauge with spring feelers, knurled clamp and fitted pouch.
- Gauge Block — 81 piece Grade 0 set of inch slip gauges in high-carbon, high-chrome steel with laser-etched sizes.
See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of dial bore gauge sets required and the delivery location through the contact page; the Add To Cart button on this page also adds the Dial Bore Gauge to an enquiry.
