Engineering Square
Product Code : EL-MAILE-10835

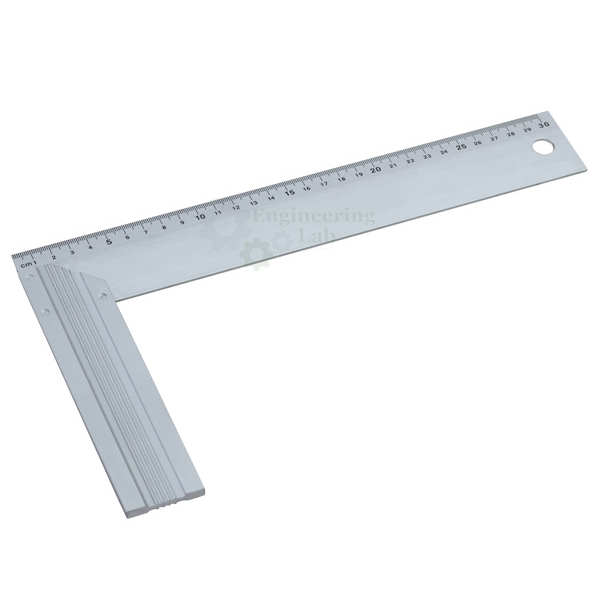

Engineering Square (code EL-MAILE-10835) is a machinist's square, the metalworker's version of a try square, used to check and mark right angles on work. A steel blade is inserted and welded or pinned into a much thicker stock at exactly 90°, the square is made entirely from metal, and a notch in the stock in line with the inside edge of the blade lets it seat correctly even when the edge of the work has a burr.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Machinist square (engineer's square) |
| Construction | Steel blade (straight edge) inserted and either welded or pinned into a heavier body (stock or beam) |
| Angle | Blade and stock fixed together at exactly 90° |
| Stock | Much thicker than the blade |
| Material | Made entirely from metal |
| Burr notch | Notch cut in the stock in line with the inside edge of the blade |
| Edges | Blade edge and stock edge sharp and straight |
| Squareness checks | Edges and ends of boards checked for squareness with adjoining surfaces |
| Size and flatness checks | Width or thickness of narrow boards; flatness |
| Layout and measuring | Laying out lines perpendicular to an edge or side; measuring short distances |
| Product code | EL-MAILE-10835 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Engineering Square Used For?
A square is used to check that one surface or edge is at a right angle to another and to mark lines at right angles to an edge. The user holds the stock firmly against the reference edge and slides the blade onto the work; any light visible between the blade and the surface shows that the work is out of square. The same blade serves as a straightedge for checking flatness and for laying out lines perpendicular to an edge or side, and short distances can be measured along it. The notch keeps a burr on the work edge from holding the stock away.
What to Specify When Ordering
- Quantity — the number of squares required.
Frequently Asked Questions
What is an engineering square used for?
It is used to check that edges and ends are square with adjoining surfaces, to check flatness and the width or thickness of narrow pieces, to lay out perpendicular lines and to measure short distances.
How is the blade fixed to the stock?
The steel blade is inserted into a heavier body, the stock, and either welded or pinned so that the two are fixed together at exactly 90°.
Why is there a notch in the stock?
The notch lines up with the inside edge of the blade, so a burr on the edge of the work does not stop the stock seating and the check stays correct.
How does it differ from a carpenter's try square?
It is the metalworker's equivalent of a try square and is made entirely from metal, whereas a woodworker's try square commonly has a wooden stock.
How is squareness checked with it?
The stock is held against the reference edge and the blade is brought onto the work; light showing between the blade and the work reveals any error from a right angle.
OEM Manufacturer
Buyers of the Engineering Square deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Measuring Instruments
- Angle Plate — 6 × 5 × 4-1/2 inch stress-relieved cast iron workholding plate with T bolt slots.
- Combination Square — 12 in rule with square, centre and protractor heads for 90° and 45° layout work.
- Surface Plate — hand-scraped cast iron reference plate for inspection and marking out, with Rexine cover.
See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of squares required and your delivery location through the contact page, or add the Engineering Square to the enquiry cart from this page.
