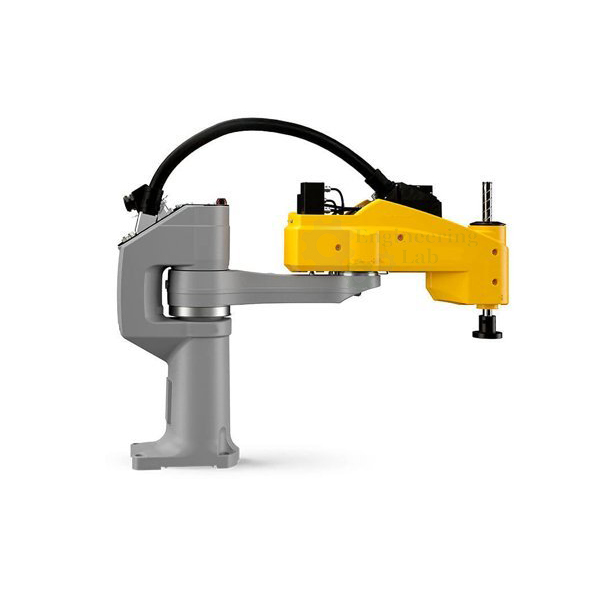

Scarab Robot Trainer
Product Code : EL-RAMLE-10883
Scarab Robot Trainer (code EL-RAMLE-10883) is a 4-axis SCARA-type educational robot arm used to teach robotics, with a parallel-axis joint layout that is flexible in the X-Y plane and rigid in the Z direction. Its two links of 225 mm and 220 mm give a 425 mm reach and a 1.5 kg payload, each joint is driven by a stepper motor with gearbox under a USB based motion controller, and micro switches mark the home and axis limits.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | SCARA-type educational robot arm |
| Joint layout | Parallel-axis joints, flexible in the X-Y direction and rigid in the Z direction |
| Arm layout | Jointed two-link arm similar to a human arm; reaches into confined areas and folds back out of the way |
| Applications | Primary and secondary packaging; pick-and-place functions; teaching robotics concepts |
| Design | 4 axes |
| Payload | 1.5 kg |
| Reach | 425 mm |
| Link 1 | 225 mm |
| Link 2 | 220 mm |
| Joint actuator | Stepper motor with gearbox |
| Controller | USB based motion controller |
| Safety | Micro switches for home and axis limits |
| I/O | 8 nos. |
| Power | 230 V, 50 Hz, single phase |
| Axis | |
| Waist (J1) | 2700 |
| Shoulder (J2) | 1350 |
| Elbow (J3) | 120 mm |
| Roll (J4) | 3600 |
| Dimensions and weight | |
| L × W × H | 550 × 560 × 900 mm (approx.) |
| Weight | 40 kg (approx.) |
| Supply | |
| Product code | EL-RAMLE-10883 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Scarab Robot Trainer Used For?
A SCARA arm moves in a horizontal plane through two rotating links, rather like a shoulder and elbow, and raises or lowers its tool on a vertical axis, which suits pick-and-place and packaging work on a flat surface. Students program the four joints through the USB motion controller, home the arm against its micro switches and teach sequences that move a payload of up to 1.5 kg within the 425 mm reach. The exercises show how link lengths and joint angles combine to place the tool, how the arm folds back clear of a work area and how the 8 I/O points link it to other equipment.
What to Specify When Ordering
- Quantity — the number of robot trainers required.
Frequently Asked Questions
What does the SCARA layout mean for this trainer?
Its parallel-axis joints give way in the X-Y direction but stay rigid in the Z direction, the selective behaviour behind the name, and the jointed two-link arm, similar to a human arm, gives the articulated part.
What are its reach and payload?
The arm reaches 425 mm using two links of 225 mm and 220 mm, and it handles a payload of 1.5 kg.
How are the joints driven and controlled?
Each joint uses a stepper motor with gearbox, controlled by a USB based motion controller, and micro switches set the home position and the axis limits for safety.
Which applications does it represent?
Its layout represents robots used in primary and secondary packaging and in pick-and-place functions, and it can reach into confined areas and fold back out of the way.
What power and connections does it need?
It runs on 230 V, 50 Hz, single phase power and provides 8 I/O points, and it measures approx. 550 × 560 × 900 mm with a weight of approx. 40 kg.
How can the trainer be ordered?
Send an enquiry with the Add To Cart button on this page; the contact page can also be used to state the quantity and the delivery location.
