Robotics Learning Trainer
Product Code : EL-RAMLE-10885

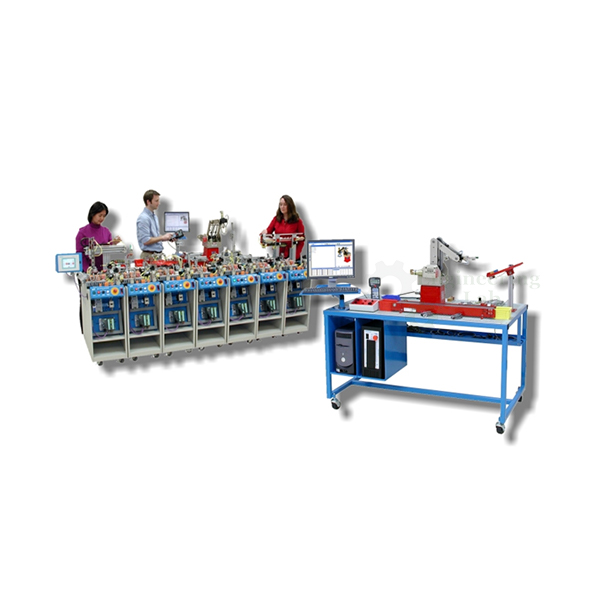

Robotics Learning Trainer (code EL-RAMLE-10885) is a robotics learning system built around a 5-axis Pegasus II articulated servo robot arm with gripper, used to teach articulated arm servo robotics and its use in industrial tasks such as assembly. The double-jointed arm works on both sides of its cell over a 360-degree work envelope with 0.18 mm repeatability, and it comes with a mobile workstation, industrial controller and teach pendant for practising over 140 MCL II commands.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Robot arm | 5-axis Pegasus II articulated servo robot arm with gripper |
| Arm layout | Double-jointed; works on both sides of its work cell |
| Work envelope | 360-degree |
| Repeatability | 0.18 mm |
| Drive and sensing | Worm screw drives, high-resolution encoders, infrared homing sensors and multiple microprocessors |
| Programming language | MCL II, with over 140 executable commands |
| Controller | Industrial controller |
| Teach pendant | |
| Display | Two-line display |
| Controls | Emergency stop button, jog capability and four soft keys for menu-driven functions |
| Programming | Handheld programming terminal for entering and editing teach points |
| Mobile workstation | |
| Construction | Welded tube steel with a perforated steel top |
| Capacity | Supports robots, feeders, fixtures and other accessories |
| Work surface | Perforated, so fixtures and tooling can be attached and removed quickly and several groups can share the workstation |
| Documentation and training | |
| Reference guide | Sample copy of the Robotics 1 Student Reference Guide, combining the series' technical content from the learning objectives in a single bound book |
| Training scope | Articulated arm servo robotics and its application in industrial tasks such as assembly; various programming exercises |
| Dimensions and weight | |
| L × W × H | 1000 × 600 × 900 mm (approx.) |
| Weight | 90 kg (approx.) |
| Supply | |
| Product code | EL-RAMLE-10885 |
| Supplier | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Robotics Learning Trainer Used For?
Articulated robot arms work through a chain of rotating joints, much like a human shoulder, elbow and wrist, and are programmed by teaching them a set of positions and the moves between them. Students jog the arm with the teach pendant to record teach points, edit them on the handheld terminal and build programs from the MCL II commands that the industrial controller runs. Fixtures and tooling attached to the perforated workstation top set up exercises such as assembly, the 0.18 mm repeatability is the figure that governs how closely the arm returns to each taught point, and the reference guide supports the learning objectives.
What to Specify When Ordering
- Quantity — the number of robotics learning systems required.
Frequently Asked Questions
Which robot arm is used?
The system is built around a 5-axis Pegasus II articulated servo robot arm with a gripper, whose double-jointed arm works on both sides of the work cell over a 360-degree envelope.
What repeatability does the arm give?
Repeatability is 0.18 mm, achieved with worm screw drives, high-resolution encoders, infrared homing sensors and multiple microprocessors in the arm and its controls.
How is the robot programmed?
Programs are written in the MCL II language, which offers over 140 executable commands, and teach points are entered and edited on the handheld teach pendant.
What does the teach pendant provide?
It has a two-line display, an emergency stop button, jog capability and four soft keys whose functions change with the menu shown on its display.
What is the workstation like?
It is a mobile workstation of welded tube steel with a perforated steel top, so fixtures and tooling can be attached and removed quickly and several groups can share it.
What should an export enquiry state?
Include the quantity, the country of destination with the port or city, the delivery terms required such as FOB or CIF, any packing instructions and the tender reference, if there is one.
About the Supplier
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India, supplies the Robotics Learning Trainer together with its own robotics and mechatronics trainers and kits. Engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas buy from the company, and tender and OEM enquiries are handled through the Tenders/OEM page.
