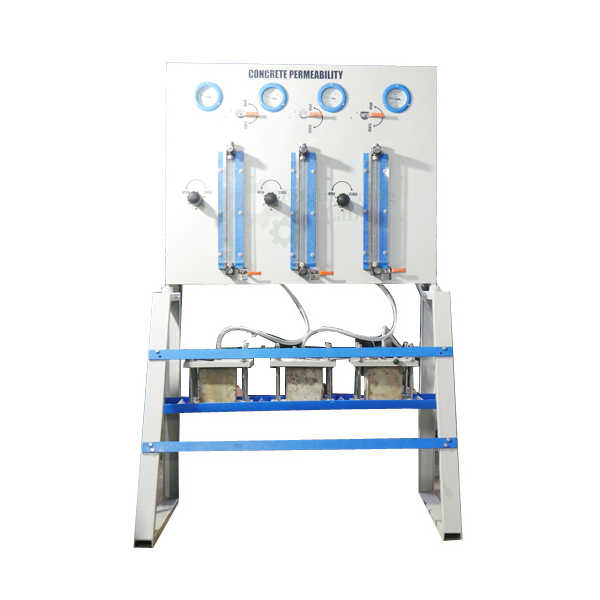

Permeability Apparatus Three Cell
Product Code : EL-CTLE-10929
Permeability Apparatus Three Cell (code EL-CTLE-10929) is a water permeability set in which regulated pressure from a chamber drives water through specimens held in mild steel cells, and the water that percolates through is measured. It is available for 6, 9, 12 or 18 cells of round or square cross-section, with a pressure regulator from 0 to 15 kg/cm², a pressure gauge, a foot pump and pressure tube and a 500 cc measuring cylinder; a 2 HP compressor is available at extra cost.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Cell configurations | Available for 6, 9, 12 or 18 cells |
| Cells | Mild steel, round or square cross-section |
| Cell mounting | Cells connected with a base plate and, at the top, with nozzles; cells connected to the pressure chamber |
| Stand | Entire assembly on a stand on which a T-connector, rubber hosepipe and sleeve-packed valve are mounted |
| Pressure regulator | 0–15 kg/cm², fitted on the pressure chamber to control the air pressure |
| Pressure gauge | Indicates the pressure in the cell |
| Pressure source | Foot pump and pressure tube, supplied; pressure air line or compressor as alternatives |
| Compressor | 2 HP capacity, supplied at extra cost |
| Measuring cylinder | 500 cc, for the percolated (draining) water |
| Product code | EL-CTLE-10929 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Permeability Apparatus Three Cell Used For?
The water permeability of concrete shows how easily water under pressure can pass through it, which matters for water-retaining structures, basements and the long-term durability of reinforced concrete. Specimens are sealed in the cells, the cells are connected to the pressure chamber, and pressure is built up with the foot pump, an air line or the optional compressor, then held at the required value with the regulator and read on the gauge. The water percolating through each specimen is collected and measured in the 500 cc measuring cylinder over time, and the flow is used to calculate the coefficient of permeability.
What to Specify When Ordering
- Quantity — the number of permeability sets required.
- Number of cells — 6, 9, 12 or 18 cells.
- Cell section — round or square cross-section cells.
- Compressor — whether the 2 HP compressor, supplied at extra cost, is wanted.
Frequently Asked Questions
How many cells can the apparatus have?
It is available for 6, 9, 12 or 18 cells, and the cells are made of mild steel with either a round or a square cross-section.
What pressure can be applied?
The pressure chamber has a regulator that controls the pressure from 0 to 15 kg/cm², and a gauge indicates the pressure in the cell.
How is pressure produced?
A foot pump and pressure tube are supplied to develop pressure in the chamber; a pressure air line or a 2 HP compressor, supplied at extra cost, can also be used.
How is the water passing through the specimen measured?
A 500 cc measuring cylinder is supplied to measure the percolated or draining quantity of water collected from the cells.
How is the assembly mounted?
The cells are connected to a base plate with nozzles at the top, and the whole assembly stands on a stand carrying a T-connector, rubber hosepipe and sleeve-packed valve.
What details should an export enquiry carry?
Give the quantity and number of cells, the destination country and port or city, the delivery terms such as FOB or CIF, packing requirements and any tender reference.
OEM Manufacturer
The Permeability Apparatus Three Cell is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Concrete Testing Equipment
- Flexure Testing Machine Digital — 100 or 200 kN automatic frame for flexural, transverse and indirect tensile tests on concrete units.
- Vee Bee Consistometer — vibrating table set with swivel arm, acrylic disc, slump cone and container for Vee Bee tests.
- Longitudinal Compressometer — two-ring cylinder compressometer with 0.002 mm dial gauge and anvil zero setting in wooden case.
- Prism Mould Three Gang — three gang mould for 40.1 × 40 × 160 mm prisms, individually verified, with base.
- Sand Absorption Cone and Tamper — conical metal mould with 12 ounce tamping rod for saturated surface-dry testing of sand.
See the full Concrete Testing Lab Equipment range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other concrete testing lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of sets, the number of cells, round or square cells and whether the compressor is needed and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
