Soxhlet Extraction Apparatus
Product Code : EL-LEAA-10998

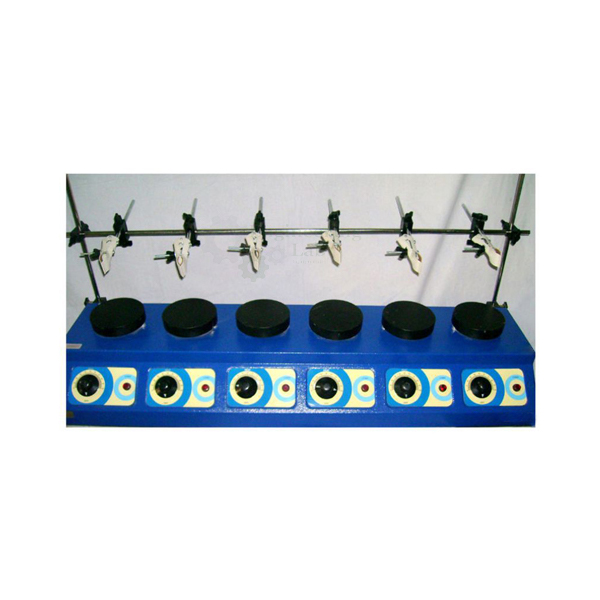

Soxhlet Extraction Apparatus (code EL-LEAA-10998) is an electrically heated mantle unit used to heat the flasks of Soxhlet extraction sets during solvent extraction. It is built for 3 or 6 mantles taking Soxhlet flasks of 50 to 500 ml, heats from ambient to 300 °C through hard knitted glass yarn elements, and comes with horizontal and vertical support rods and clamps; the glass parts are not supplied.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Flask capacity | Soxhlet flasks of 50–500 ml |
| Extraction sizes | Small and large |
| Heating | Electrical, hard knitted glass yarn |
| Mantles | 3 or 6 |
| Body | Mild steel / CRC sheet outer body with painted mild steel top |
| Housing material | CRC or mild steel sheet, powder coated |
| Insulation | Mineral wool or glass wool |
| Flask supports | Horizontal and vertical rods with clamps (gatkas) and screws to hold the flasks; 2 Nos supplied |
| Glassware | Glass parts not supplied |
| Temperature | Ambient to 300 °C |
| Control panel | Energy regulators, 3 or 6 Nos as required; 6 Nos toggle switches; 6 Nos temperature indicators |
| Power supply | Single phase AC, 220/230 V ±10% |
| Options | |
| Body finish | Double colour body |
| Supply | |
| Product code | EL-LEAA-10998 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Soxhlet Extraction Apparatus Used For?
Soxhlet extraction removes a soluble substance, such as fat or oil, from a solid sample by washing it again and again with freshly condensed solvent. The sample sits in a thimble in the extractor above a flask of solvent; heating the flask boils the solvent, the vapour condenses above the sample and drips through it, and when the chamber fills it siphons back, carrying the extract into the flask. The operator places each flask on a mantle, clamps the glassware to the support rods and sets each heater on its energy regulator, with a toggle switch and indicator for every position.
What to Specify When Ordering
- Quantity — the number of units required.
- Mantles — 3 or 6 mantles.
- Flask size — the Soxhlet flask capacity used, between 50 and 500 ml, small or large extraction size.
- Finish — whether the double colour body is wanted.
Frequently Asked Questions
Is the extraction glassware included?
No. The unit supplies the heating mantles, body and support rods with clamps, while the glass parts of the extraction set are not supplied with it.
What flask sizes can be heated?
The mantles take Soxhlet flasks of 50 to 500 ml capacity, covering both small and large extraction sizes.
How many extractions can run side by side?
The body is built for either 3 or 6 mantles, and the control panel has energy regulators to match, with 6 toggle switches and 6 temperature indicators.
How hot can the mantles get?
The heating range is ambient to 300 °C, with heat from hard knitted glass yarn elements and the body insulated with mineral wool or glass wool.
How does Soxhlet extraction work?
Solvent boiled in the flask condenses above the sample, drips through it and siphons back when the chamber fills, so the sample is washed repeatedly with fresh solvent and the extract collects in the flask.
OEM Manufacturer
The Soxhlet Extraction Apparatus is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
