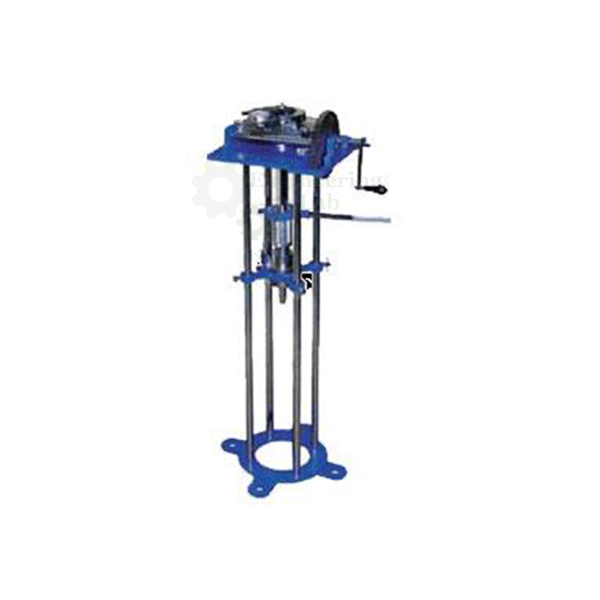

In-Situ Vane Shear Test Apparatus
Product Code : EL-STLE-10399
In-Situ Vane Shear Test Apparatus (code EL-STLE-10399) is a field set for carrying out the vane shear test from the bottom of a borehole in saturated cohesive deposits, to find their in-place shearing resistance. It has a base-mounted torque applicator of 2000 kg/cm² capacity with a split proving ring and 0.002 × 5 mm dial gauge, quick coupling rods of 1 m and 1 1/2 m, and vanes of 37.5 mm × 75 mm and 50.0 mm × 100 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | In-situ vane shear test from the bottom of a bore hole in saturated cohesive deposits, for in-place shearing resistance |
| Torque applicator | Mounted on a base; capacity 2000 kg/cm²; complete with stand |
| Gear wheel | Marked in degrees, holds the torque ring and is geared to a crank |
| Torque ring | Split ring that deforms as torque is applied; deformation shown by a dial gauge 0.002 × 5 mm |
| Calibration chart | Converts dial gauge readings to torque force in kg/cm² |
| Stand | Detachable stand to anchor the instrument while registering vane rotations |
| Rod holder | Attachment to hold the string of rods securely |
| Pointer | Provided |
| Rods and vanes | |
| Quick coupling rods | 1 m long, 1 no.; 1 1/2 m long, 1 no. |
| Dummy rods | One for the 37.5 mm dia. vane, one for the 50.0 mm dia. vane |
| Vanes with vane rods | 37.5 mm dia. × 75 mm high, 1 no.; 50.0 mm dia. × 100 mm high, 1 no. |
| Torque rod | Square cross section, 0.6 m long, 1 no. |
| Standards | IS 4434-1967 |
| Supply | |
| Product code | EL-STLE-10399 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the In-Situ Vane Shear Test Apparatus Used For?
The vane shear test measures the undrained shear strength of soft, saturated clays in place, where sampling would disturb the soil and lower the strength found in the laboratory. The vane on its rods is lowered to the bottom of the borehole and pushed into the clay, the torque applicator is anchored over the hole on its stand, and the crank turns the vane through the gear wheel. The split ring deforms as the clay resists, the dial gauge records the deformation, and the calibration chart converts the peak reading to torque, from which the shear strength is calculated using the vane dimensions. The dummy rods are used to allow for friction on the rods.
What to Specify When Ordering
- Quantity — the number of in-situ vane shear sets required.
Frequently Asked Questions
What vane sizes are supplied?
Two vanes with vane rods are supplied: 37.5 mm dia. × 75 mm high and 50.0 mm dia. × 100 mm high, each with a matching dummy rod.
How is the torque measured?
A split torque ring deforms as torque is applied and a 0.002 × 5 mm dial gauge shows the deformation; the calibration chart supplied converts the readings to torque force.
Which rods come with the apparatus?
One quick coupling rod 1 m long, one 1 1/2 m long, two dummy rods for the two vanes and a 0.6 m torque rod of square cross section.
Where is the test carried out?
It is carried out at the base of a borehole in saturated cohesive ground, so the shearing resistance measured is that of the soil in place rather than of a sample.
How is the instrument held steady during testing?
A detachable stand anchors the instrument while the vane rotations are registered, and a separate attachment holds the string of rods securely.
Which standard is the in-situ vane set listed against?
The standard listed for it is IS 4434-1967, for in-situ vane shear testing of saturated cohesive soils.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the In-Situ Vane Shear Test Apparatus at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its soil testing equipment for classification, compaction, density, shear and consolidation tests go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
