Cut Model of Automatic Transmission System
Product Code : EL-AELE-10720

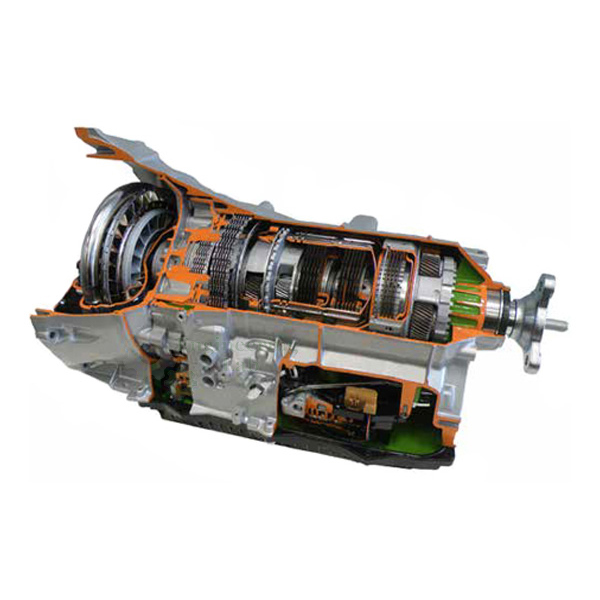

Cut Model of Automatic Transmission System (code EL-AELE-10720) is a sectioned teaching model, made from a full-size original used car automatic transmission, that shows the internal gear mechanism for the forward and reverse speeds and how automatic gear shifting takes place. It has a hydraulic torque converter, an epicycloid gear change with 5 forward speeds plus reverse, multiple-plate clutches and control valves, is turned by a hand crank on the torque converter, and measures approx. 750 × 550 × 700 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Base unit | Full-size original used automatic transmission of a car, sectioned for training |
| Sectioning | Shows the internal details of the gear mechanism for forward and reverse speeds |
| Main parts | Torque converter, planetary gear set, clutches and bands, hydraulic and lubricating oil |
| Torque converter | Hydraulic |
| Gear change | Epicycloid, 5 forward speeds plus reverse |
| Clutches | Multiple-plate |
| Control | Control valves |
| Operation | Manual, by hand crank applied on the torque converter |
| Mounting | Tubular frame on a stand with wheels |
| Colour coding | Different colours for different components and sectioned areas, to a colour code identifying systems and mechanisms |
| Finish | Colour painting with a gloss coating; many parts chromium plated and galvanised; hardware and gears electroplated |
| Dimensions | Approx. 750 × 550 × 700 mm (L × W × H) |
| Weight | Approx. 110 kg |
| Product code | EL-AELE-10720 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Cut Model of Automatic Transmission System Used For?
An automatic transmission changes ratio without a clutch pedal: the torque converter passes engine drive through fluid, planetary gear sets provide the ratios, and clutches and bands applied by oil pressure, directed by the control valves, hold or release parts of each gear set. With the casing cut open, the lecturer turns the hand crank on the torque converter and the class follows the drive through the gear mechanism, first in a forward speed and then in reverse, while the colour code separates the converter, gear sets and clutch packs. The model serves for lectures on automatic shifting and for identifying each assembly before workshop servicing.
What to Specify When Ordering
- Quantity — the number of transmission cut models needed.
Frequently Asked Questions
What is the model made from?
It is made from a full-size original used automatic transmission of a car, sectioned to show the internal details of the gear mechanism for the forward and reverse speeds.
How many speeds does the gear change provide?
The epicycloid gear change gives 5 forward speeds plus reverse, using multiple-plate clutches and control valves alongside the hydraulic torque converter.
How is the mechanism moved during a lesson?
It is operated manually: a hand crank is applied on the torque converter, turning the mechanism so the gear train can be followed through the cut casing.
How are the different parts told apart?
Each component and sectioned area is painted to a colour code, many parts are chromium plated and galvanised, and the hardware and gears are electroplated.
What are the size and weight of the model?
It stands on a tubular frame with wheels, measuring about 750 × 550 × 700 mm and weighing approximately 110 kg.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Cut Model of Automatic Transmission System at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its automobile engineering cut-section models, working models and trainers go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
