Working Model of Power Steering with Suspension
Product Code : EL-AELE-10748

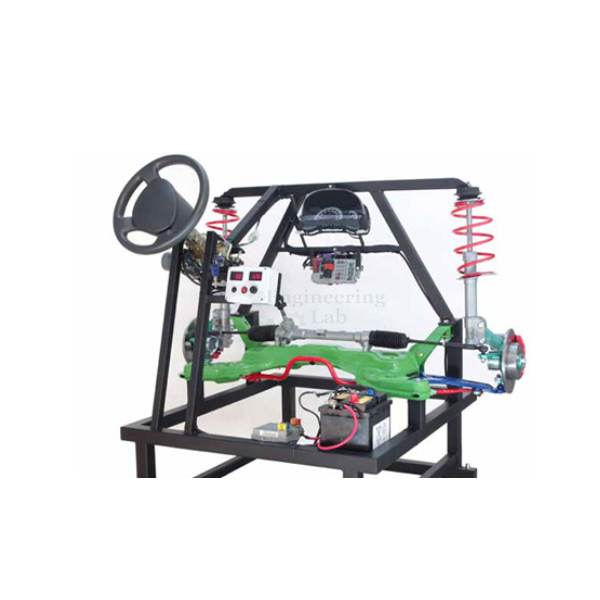

Working Model of Power Steering with Suspension (code EL-AELE-10748) is a working trainer based on an actual car front axle assembly, used to show the structure and operation of a power steering system and front axle suspension with fully functioning McPherson struts. Car speed, alternator output and steering effort can be varied by the user and read on an instrument cluster and two displays, and it has electrical rack and pinion power steering and a body computer with a low speed CAN diagnostic socket.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Structure display, operation simulation and assembly and disassembly training on power steering and front axle suspension |
| Basis | Actual car front axle assembly |
| Steering | Electrical power steering with rack and pinion |
| Suspension | Fully functioning McPherson struts |
| Steering effort adjustment | Directly on the rack |
| Variable inputs | Car speed, alternator output and steering effort can be varied by the user |
| Displays | Instrument cluster and two displays; indicator lamp and voltage/current display |
| Body computer | With diagnostic socket (low speed CAN) |
| Frame | Rigid welded structure with shock absorption component |
| Power required | 230 V, 50 Hz, 1 phase / 12 V, 45 A |
| Training level | Theory teaching and maintenance training in secondary and senior vocational skill schools and education and training institutions |
| Dimensions | Approx. 1600 × 1300 × 1500 mm (L × W × H) |
| Weight | Approx. 150 kg |
| Product code | EL-AELE-10748 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Working Model of Power Steering with Suspension Used For?
Electric power steering replaces the engine-driven hydraulic pump with an electric assist motor, and a control unit sets how much help it gives from signals such as vehicle speed and the effort the driver applies. On the trainer, the user varies car speed, alternator output and steering effort and reads the effect on the instrument cluster and the two displays, while the McPherson struts move as the wheels are turned. Students connect to the body computer's low speed CAN diagnostic socket, adjust steering effort directly on the rack, and practise dismantling and reassembling the steering and front suspension.
What to Specify When Ordering
- Quantity — how many power steering and suspension trainers are required.
Frequently Asked Questions
Which steering parameters can be varied?
The user can vary car speed, alternator output and steering effort, and the instrument cluster and two displays show all the information on how the system is operating.
What type of power steering is fitted?
It is electrical power steering with rack and pinion, combined with operating McPherson struts, and the steering effort can be adjusted directly on the rack.
Is diagnosis possible on the trainer?
Yes, the body computer has a diagnostic socket on low speed CAN, and an indicator lamp and a voltage and current display are provided.
Who is the trainer intended for?
It is meant for theory teaching and maintenance training of power steering and front axle suspension in secondary and senior vocational skill schools and in education and training institutions.
What power does it need?
The power requirement is 230 V, 50 Hz, single phase / 12 V, 45 A. The welded frame measures about 1600 × 1300 × 1500 mm and weighs approximately 150 kg.
OEM Manufacturer
Buyers of the Working Model of Power Steering with Suspension deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests automobile engineering cut-section models, working models and trainers, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
