Working Model of Gear Box
Product Code : EL-AELE-10745

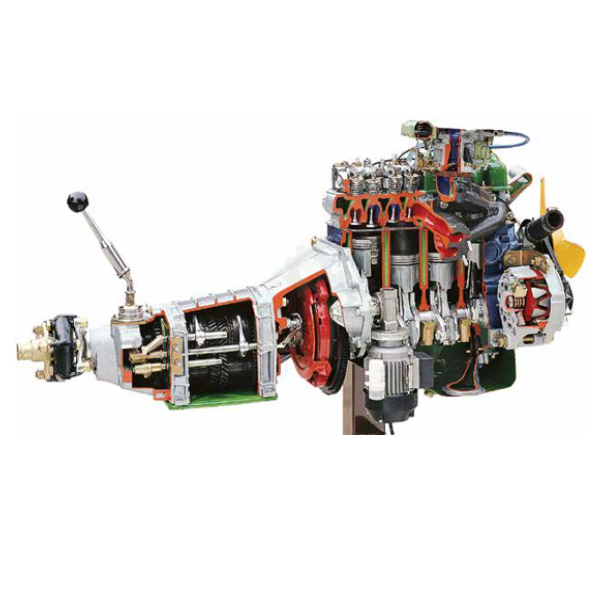

Working Model of Gear Box (code EL-AELE-10745) is a cutaway training model of a vehicle gearbox, sectioned and colour-coded to show drive entering at the input shaft, crossing to the lay shaft and reaching the main shaft gears and synchromesh device. Its gearbox has 4 forward speeds plus reverse with a single-plate diaphragm clutch, and the assembly includes a 4 stroke, 4 in-line cylinder engine with indirect injection, turbo supercharger feeding, overhead camshaft and toothed-belt distribution, measuring approx. 1600 × 700 × 1000 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Demonstrating the selection of gears for different driving conditions |
| Gearbox | 4 forward speeds + reverse |
| Clutch | Single-plate clutch with diaphragm |
| Gear train | Engine drives the input shaft, which drives the lay shaft; main shaft gears rotate freely until locked by the synchromesh device splined to the shaft |
| Engine | 4 stroke, 4 in-line cylinders |
| Fuel injection | Indirect injection; VE type rotary injection pump |
| Induction | Feeding by turbo supercharger |
| Camshaft | Overhead camshaft (OHC) |
| Distribution | Through a toothed belt |
| Electrical | Alternator |
| Cooling | Water cooling with thermostatic valve |
| Sectioning | Various parts cross-sectioned to show internal operation |
| Colour coding | Parts, cross-sections, lubricating circuits, fuel system and cooling system in different colours |
| Finish | Many parts chromium plated and galvanised |
| Operation | Manual |
| Layout | On base with wheel |
| Dimensions | Approx. 1600 × 700 × 1000 mm (L × W × H) |
| Weight | Approx. 150 kg |
| Product code | EL-AELE-10745 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Working Model of Gear Box Used For?
Each gear in a manual gearbox gives a different ratio between engine speed and road wheel speed; a low ratio multiplies torque for moving off or climbing, while higher gears let the vehicle cruise on the level at moderate engine speed. On this cutaway, where the gearbox is shown with a turbocharged 4 cylinder engine and its single-plate clutch, the instructor turns the mechanism by hand and shows drive leaving the engine through the clutch, entering the input shaft and passing via the lay shaft to whichever main shaft gear the synchromesh has locked. The 4 forward speeds and reverse can be traced in turn.
What to Specify When Ordering
- Quantity — how many gearbox cut models are to be supplied.
Frequently Asked Questions
How many speeds does the gearbox have?
The gearbox has 4 forward speeds plus reverse, and it is paired with a single-plate clutch with diaphragm.
What engine details are included in the model?
The specification lists a 4 stroke engine with 4 in-line cylinders, indirect injection through a VE type rotary injection pump, turbo supercharger feeding, an overhead camshaft with toothed-belt distribution, an alternator and water cooling with thermostatic valve.
What role does the synchromesh play?
Gears on the main shaft turn freely until the synchromesh device, which is splined to the shaft, locks the selected gear so that it can pass drive to the output.
What finish and colour coding are used?
Different colours pick out the parts, cross-sections, lubricating circuits and the fuel and cooling systems of the sectioned assembly, and many components are chromium plated and galvanised.
How big is the gearbox model?
The cutaway is about 1600 mm long, 700 mm wide and 1000 mm high on a base with wheels, and it weighs approximately 150 kg.
