Internal Gear Pinion Drive
Product Code : EL-DOMLE-10782

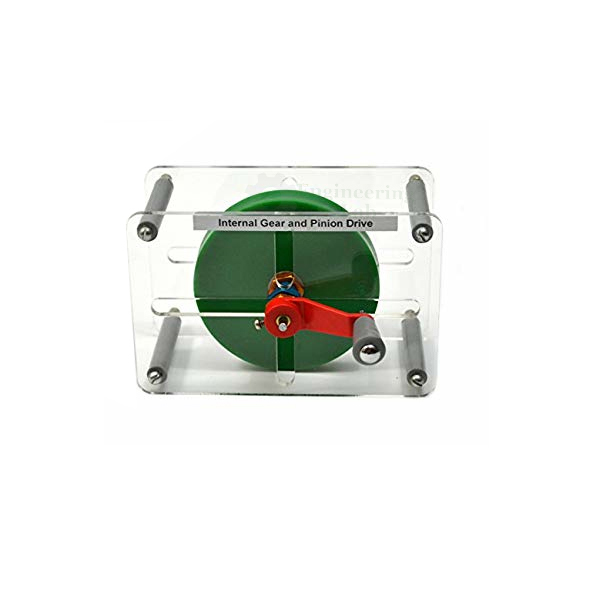

Internal Gear Pinion Drive (code EL-DOMLE-10782) is a hand-cranked teaching model for demonstrating the basic working of an internal gear and pinion drive. Made of metal and plastic, it is an open system held between two clear plastic plates so the meshing gears can be studied, with 2 dials to show rotation, and it stands on a base as a bench top or desk top item.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Purpose | Demonstrating the fundamentals of an internal gear and pinion drive |
| Operation | Manually, through a crank handle |
| Construction | Metal and plastic |
| Enclosure | Open system for study, sandwiched between two clear plastic plates |
| Rotation indicators | 2 dials |
| Layout | On base; bench top or desk top |
| Dimensions | 400 × 200 × 300 mm approx. (L × W × H) |
| Weight | 5 kg |
| Product code | EL-DOMLE-10782 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Internal Gear Pinion Drive Used For?
In an internal gear drive the pinion meshes with teeth cut on the inside of a ring gear, so both turn in the same direction, unlike two external gears in mesh, which turn in opposite directions. Students turn the crank handle and watch through the clear plates as the pinion runs inside the internal gear, while the dials show the rotation. Comparing the motion of the pinion and the internal gear lets them see the direction of rotation and the change in speed for themselves, on a model small enough for a desk.
What to Specify When Ordering
- Quantity — the number of models required.
Frequently Asked Questions
What does the Internal Gear Pinion Drive demonstrate?
It demonstrates the basics of an internal gear and pinion drive, with the pinion meshing inside the internal gear in an open system that can be studied closely.
What is it made of?
The model is constructed from metal and plastic and is sandwiched between two clear plastic plates, so the gears remain visible while they turn.
How is rotation shown?
The model has 2 dials that show rotation as the crank handle is turned by hand.
Where is the model used?
It is laid out on a base as a bench top or desk top item, measuring approximately 400 × 200 × 300 mm and weighing 5 kg.
In which direction do an internal gear and its pinion turn?
They turn in the same direction, because the pinion meshes with teeth on the inside of the gear; two external gears in mesh turn in opposite directions.
OEM Manufacturer
The Internal Gear Pinion Drive is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests dynamics of machines apparatus such as governors, gyroscopes, cams and balancing machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Dynamics of Machines Equipment
- Rack and Pinion Gear Trainer — hand-cranked, colour-coded cutaway model of a rack and pinion mechanism on a tubular frame.
- Cam Analysis Apparatus — motor-driven cam and follower rig with four cams, two followers, springs and lift sensors.
- Computerized Cam Analysis — cam mechanism demonstrator with four cams, two plunger receivers, three return springs and elevation recorder.
See the full Dynamics of Machine Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other dynamics of machine lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of internal gear demonstration models required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
