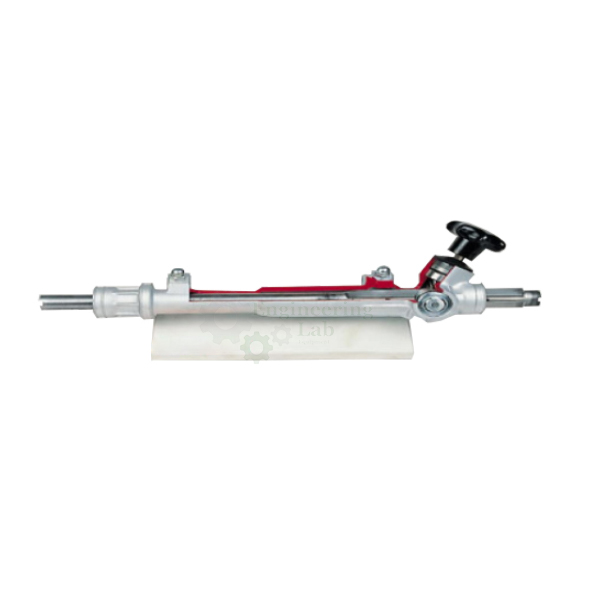

Rack and Pinion Gear Trainer
Product Code : EL-DOMLE-10776
Rack and Pinion Gear Trainer (code EL-DOMLE-10776) is a hand-operated, sectioned cutaway model used in training to show the internal construction of a rack and pinion mechanism. It is mounted on a tubular frame on a base and turned with a crank handle, and its components and cut sections are painted in different colours to a colour code, with chromium-plated, galvanised and electroplated parts and gears.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Model type | Cutaway model, sectioned for training purposes |
| Operation | Hand operated through a crank handle |
| Layout | On base, mounted on a tubular frame |
| Colour coding | Different colours for different components and sectioned areas, to a colour code for identifying the systems and mechanisms |
| Painting | Imported colour paints with a gloss coating |
| Plating | Many parts chromium-plated and galvanised; all hardware and gears electroplated |
| Dimensions | 1000 × 300 × 350 mm approx. (L × W × H) |
| Weight | Approx. 15 kg |
| Product code | EL-DOMLE-10776 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Rack and Pinion Gear Trainer Used For?
In a rack and pinion, a round gear (the pinion) meshes with a straight toothed bar (the rack), so turning the pinion moves the rack in a straight line, or the reverse. Because the model is cut away, the instructor turns the crank handle and the class can see through the sections how the pinion teeth drive the rack, while the colour code picks out each part and cut face. The model suits lessons in which students must name the parts of the mechanism and explain how rotary motion becomes linear motion.
What to Specify When Ordering
- Quantity — the number of cutaway models required.
Frequently Asked Questions
What does the Rack and Pinion Gear Trainer show?
It is a sectioned cutaway model, made for training, through which the internal construction of a rack and pinion mechanism and its cross-sections can be seen.
How is the model operated?
It is operated manually through a crank handle on the base, letting the instructor move the gears while students watch the cut sections.
Why are the parts painted in different colours?
Different colours are used for different components and for the sectioned areas, following a colour code, so that each system and mechanism can be told apart.
How are the metal parts finished?
Many parts are chromium-plated and galvanised, all hardware and gears are electroplated, and the painted surfaces carry a gloss coating over imported colour paints.
What are the size and weight of the model?
Mounted on its tubular frame, the model measures approximately 1000 × 300 × 350 mm and weighs about 15 kg.
OEM Manufacturer
The Rack and Pinion Gear Trainer is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests dynamics of machines apparatus such as governors, gyroscopes, cams and balancing machines for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related Dynamics of Machines Equipment
- Cam Analysis Apparatus — motor-driven cam and follower rig with four cams, two followers, springs and lift sensors.
- Computerized Cam Analysis — cam mechanism demonstrator with four cams, two plunger receivers, three return springs and elevation recorder.
- Scotch Yoko Mechanism — hand-cranked slotted link model showing crank rotation against yoke travel.
See the full Dynamics of Machine Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other dynamics of machine lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of rack and pinion cutaway models required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
