Static and Dynamic Balancing Apparatus
Product Code : EL-DOMLE-10778

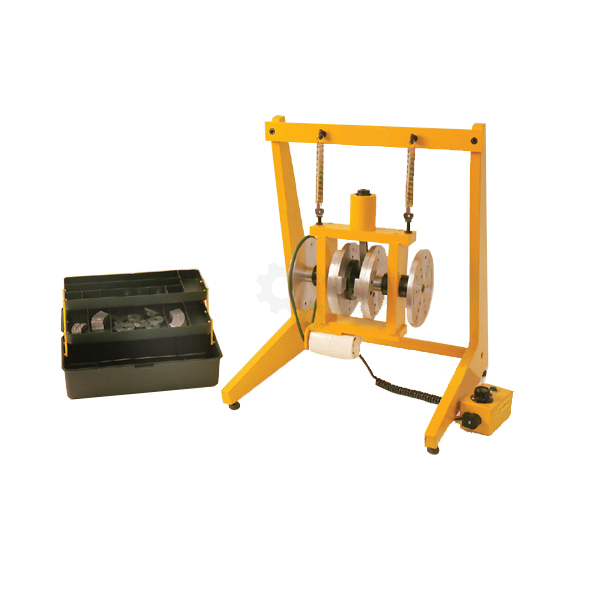

Static and Dynamic Balancing Apparatus (code EL-DOMLE-10778) is an experimental unit that demonstrates rotor imbalance and how it is corrected, making clear how static imbalance differs from dynamic imbalance. Four imbalance masses, with a total imbalance of 880 cmg, can be fixed at any angle and position along a ball-bearing shaft driven by a variable-speed motor and belt at up to 1400 min-1, with the speed shown digitally.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Shaft | Smooth shaft mounted on ball bearings |
| Imbalance masses | 4, variable, attached at any angular and longitudinal position |
| Total imbalance | 880 cmg |
| Drive | Variable-speed electric motor and belt |
| Speed | 0–1400 min-1, displayed digitally |
| Imbalance determination | Defined external moment applied through an additional pulley with weights and compared with the moment of the imbalance masses |
| Guard | Transparent cover against contact with rotating parts, giving a clear view of the shaft |
| Foundation | Elastic bearing to suppress unwanted vibrations |
| Experiments | Comparison of static, dynamic or general imbalance; determining an imbalance; imbalance vibrations at different speeds; performing a balancing operation; fundamental processes of balancing |
| Power supply | 230 V, 50 Hz, 1 phase; 230 V, 60 Hz, 1 phase; or 120 V, 60 Hz, 1 phase |
| Dimensions | 600 × 300 × 600 mm approx. (L × W × H) |
| Weight | 32 kg |
| Product code | EL-DOMLE-10778 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Static and Dynamic Balancing Apparatus Used For?
A rotor is statically unbalanced when its centre of mass lies off the axis, so it settles with the heavy side down, and dynamically unbalanced when masses in different planes produce a rocking couple that shows only when it spins. Students fix the four masses at chosen angles and positions, find their moments by comparing them with the external moment from the weights on the additional pulley, and then arrange the masses so that the shaft stays put in any position at rest and runs without imbalance vibration when driven. Running the shaft at different speeds shows the imbalance vibrations before and after balancing.
What to Specify When Ordering
- Quantity — the number of balancing apparatus required.
- Power supply — 230 V 50 Hz, 230 V 60 Hz or 120 V 60 Hz single phase.
Frequently Asked Questions
What is the difference between static and dynamic imbalance?
Static imbalance means the centre of mass is off the shaft axis, which shows even at rest; dynamic imbalance comes from masses in different planes forming a couple, which shows only when the rotor spins.
How many imbalance masses are supplied?
Four variable imbalance masses are supplied, together giving a total imbalance of 880 cmg, and each can be attached at any angular and longitudinal position on the shaft.
How is the imbalance measured?
A defined external moment is applied through an additional pulley with weights and compared with the moment of the imbalance masses, so the imbalance can be determined and then balanced.
What speed does the shaft reach?
A variable-speed electric motor and belt drive the shaft from 0 to 1400 min-1, and the speed is shown on a digital display.
How are students protected from the rotating shaft?
A transparent cover prevents contact with the rotating parts while still giving a clear view of the shaft, and an elastic foundation bearing suppresses unwanted vibration.
OEM Manufacturer
Buyers of the Static and Dynamic Balancing Apparatus deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests dynamics of machines apparatus such as governors, gyroscopes, cams and balancing machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Dynamics of Machines Equipment
- Whirling of Shaft Apparatus — critical speed and shaft whirl demonstrator with six steel shafts, 6000 min-1 motor and Laval disc.
- Universal Vibration Apparatus — profile-frame vibration trainer with beams, springs, imbalance exciter, tunable absorber and two chart recorders.
- Scotch Yoko Mechanism — hand-cranked slotted link model showing crank rotation against yoke travel.
See the full Dynamics of Machine Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other dynamics of machine lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of balancing apparatus and the supply voltage and frequency and your delivery location through the contact page, or add the Static and Dynamic Balancing Apparatus to the enquiry cart from this page.
