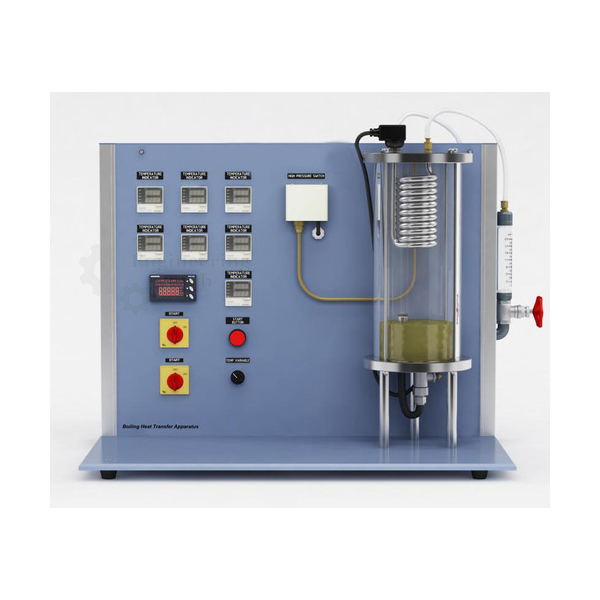

Computerized Boiling Heat Transfer Apparatus
Product Code : EL-HAMTLE-10753
Computerized Boiling Heat Transfer Apparatus (code EL-HAMTLE-10753) is an experimental unit that demonstrates evaporation in a steam boiler fire tube, using an internally heated cylinder inside a transparent process tank so that nucleate and film boiling can be watched and the heat transfer coefficient calculated. It has a 10 L tank with a safety valve opening at 2.2 bar, a 250 W continuously adjustable heater, an 80 mm copper cooling coil and USB data acquisition to a PC.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Demonstrating evaporation in a steam boiler fire tube |
| Model | Cylinder heated from the inside, representing a fire tube |
| Condenser | Integrated, water-cooled, for a continuous boiling process |
| Working liquid | Special low-boiling liquid |
| Process tank | Transparent, for observing evaporation at the heated cylinder |
| Tank capacity | 10 L |
| Safety valve | Opens at 2.2 bar |
| Experiments | Effect of temperature and pressure on evaporation; forms of evaporation (nucleate and film boiling); calculation of the heat transfer coefficient |
| Displays | Digital displays for measured values |
| Data acquisition | Software for data acquisition via USB; processing of measured values on a PC |
| Heater | |
| Power | 250 W, continuously adjustable |
| Surface area | 0.001875 m² |
| Cooler, copper coil | |
| Diameter | 80 mm |
| Surface area | 0.0578 m² |
| Measuring ranges | |
| Pressure | 0–4 bar absolute |
| Flow rate | 0.05–1.8 L/min |
| Temperature (thermocouple) | 0–200 °C |
| Requirements, dimensions and weight | |
| Power supply | 230 V, 50/60 Hz, 1 phase, or 120 V, 60 Hz, 1 phase |
| Services | Water supply and drain |
| Dimensions (L × W × H) | Approx. 900 × 450 × 820 mm |
| Weight | Approx. 60 kg |
| Supply | |
| Product code | EL-HAMTLE-10753 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Computerized Boiling Heat Transfer Apparatus Used For?
When a heated surface boils a liquid, bubbles first form at individual points on the surface, which is nucleate boiling and carries heat away well; at higher heat flux a layer of vapour can cover the surface, which is film boiling and insulates it. Students set the heater power, watch the cylinder through the transparent tank and log pressure, flow rate and temperature, while the water-cooled condenser turns the vapour back to liquid so boiling continues. From the heater power, its 0.001875 m² surface and the measured temperatures, the PC software works out the heat transfer coefficient, showing how temperature and pressure change evaporation in a boiler fire tube.
What to Specify When Ordering
- Quantity — the number of boiling heat transfer units required.
- Power supply — 230 V, 50/60 Hz single phase, or 120 V, 60 Hz single phase.
Frequently Asked Questions
What does the boiling heat transfer unit demonstrate?
It demonstrates evaporation in a steam boiler fire tube, modelled by a cylinder heated from inside, and shows the effect of temperature and pressure on the evaporation process.
Can students see the different forms of boiling?
Yes. The process tank is transparent, so nucleate boiling and film boiling at the heated cylinder can be observed directly while measurements are taken.
What is the difference between nucleate and film boiling?
In nucleate boiling, vapour bubbles form at points on the heated surface and carry heat away well. In film boiling, a layer of vapour covers the surface and insulates it, so heat transfer falls.
Why is a low-boiling liquid used?
A liquid that evaporates at low temperatures can be boiled at moderate temperatures in the closed tank, and the water-cooled condenser turns the vapour back into liquid so the boiling process is continuous.
What are the measuring ranges?
Pressure is measured from 0 to 4 bar absolute, flow rate from 0.05 to 1.8 L/min and temperature by thermocouple from 0 to 200 °C.
What services does the unit need?
It needs a 230 V, 50/60 Hz or 120 V, 60 Hz single-phase supply together with a water supply and drain, and it occupies approx. 900 × 450 × 820 mm.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Computerized Boiling Heat Transfer Apparatus at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its heat and mass transfer apparatus for conduction, convection, radiation and heat exchangers go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
