Electrical, Electronic Pneumatic Calibration Bench
Product Code : EL-MAILE-10806

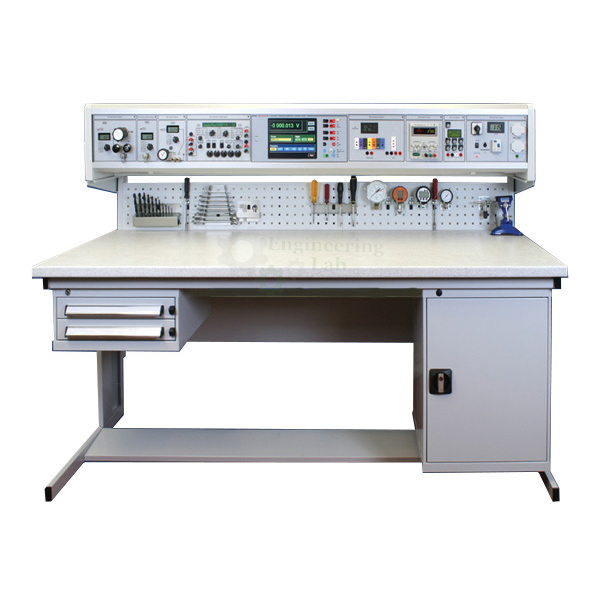

Electrical, Electronic Pneumatic Calibration Bench (code EL-MAILE-10806) is a console with a set of instruments on which learners practise the maintenance and calibration of the pneumatic and electronic instruments used in process control. Its painted carbon steel structure carries four precision pressure gauges of class 0.25%, a manual control station, a digital multimeter, a 4–20 mA signal generator, a 12-24-48 V DC power supply, thermocouple and RTD simulators, three pressure reducers with 12 outputs and two 1000 mm differential pressure glass manometers.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Training in the maintenance and calibration of the pneumatic and electronic instrumentation on which process control is based |
| Construction | Console with a set of instruments; painted carbon steel structure |
| Instruments that can be calibrated | |
| Pressure devices | Pressure gauges, pressure switches |
| Temperature devices | Thermostats |
| Pressure transmitters | Pneumatic and electronic pressure transmitters; pneumatic and electronic differential pressure transmitters |
| Level transmitters | Pneumatic and electronic level transmitters; hydrostatic thrust level transmitters; capacitive probe level transmitters |
| Indicators and recorders | Pneumatic and electronic indicators; pneumatic and electronic recorders |
| Indicator/controllers | Electronic indicators/controllers; pneumatic indicators/controllers |
| Final control elements | Pneumatic valves, positioners |
| Bench equipment | |
| Pressure gauges | 4 precision pressure gauges: -1 to 0, 0 to 1.6, 0 to 4 and 0 to 10; class 0.25% |
| Manual control station | 1, complete with precision pressure gauge |
| Digital multimeter | Accuracy ±0.03%; current range 20 A; voltage range 1200 V |
| Signal generator | 4–20 mA |
| DC power supply | 12-24-48 V DC |
| Voltage control | 0–200 V |
| Simulators | Thermocouple simulator; RTD simulator |
| Pressure reducers | 3 precision pressure reducers |
| Pressure outputs | 12 |
| Manometers | 2 differential pressure glass manometers, height 1000 mm |
| Sleeve | Stainless steel |
| Power and size | |
| Power supply | 230 V, 1 phase, 50 Hz or 60 Hz |
| Dimensions | 2000 × 100 × 1500 mm (L × W × H) |
| Weight | Approx. 150 kg |
| Supply | |
| Product code | EL-MAILE-10806 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Electrical, Electronic Pneumatic Calibration Bench Used For?
Calibration compares an instrument's reading or output with a known reference across its range and adjusts it until the two agree, and in a plant this is routine work for instrument technicians. On the bench a trainee connects the device under test to the pressure outputs fed by the three reducers, applies known pressures read on the class 0.25% gauges or the glass manometers, and checks the transmitter's output with the digital multimeter. Electronic instruments are powered from the DC supply and driven by the 4–20 mA signal generator, while temperature indicators and controllers are checked against the thermocouple and RTD simulators in place of a real sensor.
What to Specify When Ordering
- Quantity — the number of calibration benches required.
- Power supply — 230 V single phase, to suit 50 Hz or 60 Hz mains.
Frequently Asked Questions
Which instruments can trainees calibrate on the bench?
Pressure gauges, pressure switches, thermostats, pneumatic and electronic pressure, differential pressure and level transmitters, indicators, recorders and indicator/controllers, hydrostatic thrust and capacitive probe level transmitters, pneumatic valves and positioners.
What pressure references are provided?
Four precision pressure gauges of class 0.25% cover -1 to 0, 0 to 1.6, 0 to 4 and 0 to 10, and two differential pressure glass manometers of 1000 mm height are fitted.
What electrical test equipment is included?
A digital multimeter with ±0.03% accuracy, a 20 A current range and a 1200 V voltage range, a 4–20 mA signal generator, a 12-24-48 V DC power supply and 0–200 V voltage control.
How are temperature instruments checked without a heat source?
Thermocouple and RTD simulators supply the signal a sensor would give, so a temperature indicator, controller or transmitter can be checked at chosen points without heating a real probe.
How is air pressure distributed to the devices under test?
Three precision pressure reducers feed 12 pressure outputs, and a manual control station complete with its own precision pressure gauge is provided for setting pneumatic signals by hand.
Which export details should accompany an enquiry?
State the number of benches, the destination country with port or city, the delivery terms required, for example FOB or CIF, any special packing and the tender reference where one applies.
OEM Manufacturer
The Electrical, Electronic Pneumatic Calibration Bench is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
