Temperature Measurement Trainer
Product Code : EL-MAILE-10812

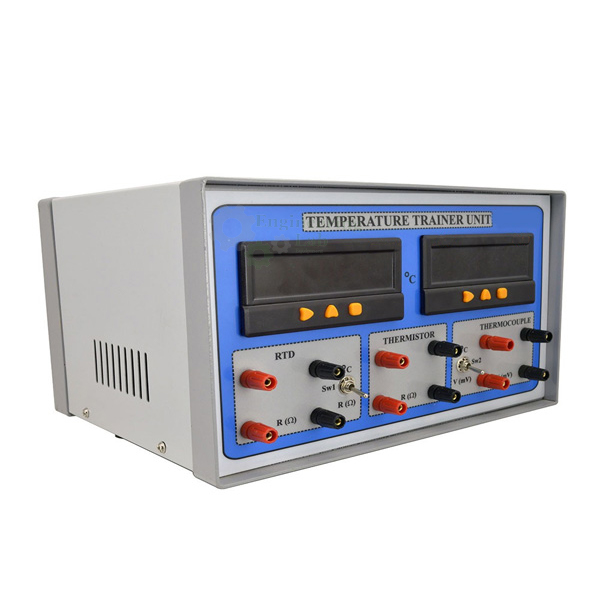

Temperature Measurement Trainer (code EL-MAILE-10812) is a teaching kit used to study the working principle of the thermocouple, RTD and thermistor by measuring the temperature of water heated up to 100 °C. A small portable electric kettle provides the heat, the J type (Fe-K) thermocouple, PT-100 RTD and 5 Kohm negative-coefficient thermistor are housed in 6 mm diameter stainless steel tubes, and a 3½ digit LED indicator reads in degrees centigrade, checked against a glass thermometer reading up to 110 °C.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Measuring temperature up to 100 °C and studying the working of thermocouple, RTD and thermistor transducers |
| Sensors | Combination of RTD, thermocouple and thermistor |
| Thermocouple | Fe-K (J type) |
| RTD | PT-100 |
| Thermistor | 5 Kohms, negative coefficient |
| Probes | Sensors housed inside 6 mm dia. stainless steel tube (6 lengths) |
| Temperature source | Small portable electric kettle in which water is heated up to boiling temperature |
| Source temperature | 100 °C |
| Reference thermometer | Glass thermometer reading up to 110 °C |
| Indicator | Digital, 3½ digit LED display of 200 mV FSD; reads in degrees centigrade |
| Front panel | Shows the schematic circuit diagram of the temperature indicator, with all test points brought out |
| Supplied with | All necessary accessories |
| Power supply | 230 V, 50 Hz, 1 phase or 230 V, 60 Hz, 1 phase |
| Dimensions | 400 × 300 × 300 mm (L × W × H) |
| Weight | Approx. 15 kg |
| Product code | EL-MAILE-10812 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Temperature Measurement Trainer Used For?
The three sensors work in different ways: a thermocouple produces a small voltage that grows with the temperature difference between its junctions, an RTD's platinum element increases in resistance as it warms, and a negative-coefficient thermistor loses resistance sharply as temperature rises. Students heat water in the kettle, place the probes in it alongside the glass thermometer and read each sensor on the indicator as the water warms towards boiling. Comparing the readings shows how each transducer responds, and the test points on the front-panel schematic let the signal from each sensor be measured directly.
What to Specify When Ordering
- Quantity — the number of trainers required.
- Power supply — 230 V, 1 phase, for 50 Hz or 60 Hz mains.
Frequently Asked Questions
Which temperature sensors are included?
Three sensors are included: a Fe-K (J type) thermocouple, a PT-100 RTD and a 5 Kohm thermistor with a negative temperature coefficient, each housed in a 6 mm diameter stainless steel tube.
What is used as the heat source?
A small portable electric kettle heats water up to boiling, giving a source temperature of 100 °C for the sensors to measure.
How can the sensor readings be checked?
A glass thermometer reading up to 110 °C measures the source temperature, so each sensor's reading on the digital indicator can be compared with it.
What type of display does the indicator have?
It has a 3½ digit LED display of 200 mV FSD and shows the temperature in degrees centigrade.
What is the difference between an RTD and a thermistor?
Both change resistance with temperature. A PT-100 RTD rises steadily in resistance as it warms, while a negative-coefficient thermistor's resistance falls, and by a much larger amount for each degree.
How is an order placed for this trainer?
Use the page's Add To Cart enquiry button, or give the number of trainers and the delivery location on the contact page.
OEM Manufacturer
The Temperature Measurement Trainer is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
