Anemometer
Product Code : EL-MAILE-10815

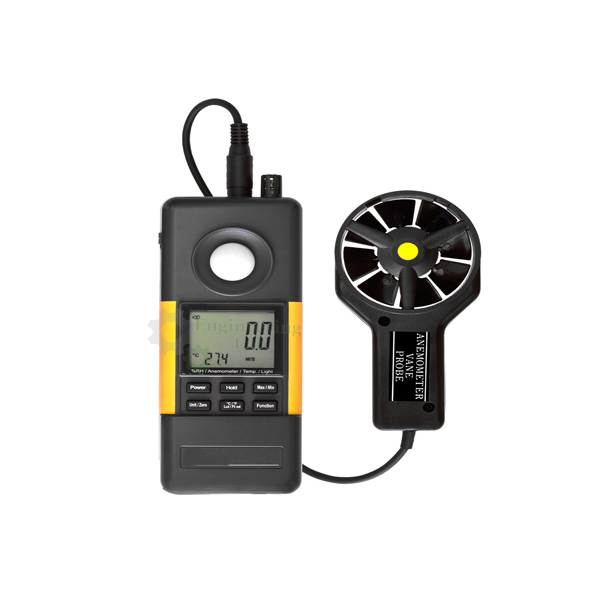

Anemometer (code EL-MAILE-10815) is a digital vane instrument used to measure air velocity and air flow, calculating air volume in CFM or CMM while showing the ambient temperature at the same time. Its 72 mm (2.83 in) ball bearing vane wheel on a 120 cm (3.9 ft) cable gives 3% velocity accuracy, and the meter also covers humidity, dew point and wet bulb temperature, with a backlit LCD, data hold and min/max/avg functions.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Digital vane anemometer, portable |
| Measurements | Wind speed (air velocity), air flow, air volume, ambient temperature, humidity, dew point temperature and wet bulb temperature |
| Display | Large-screen LCD with backlight; simultaneous display of air flow or air velocity plus ambient temperature |
| Air volume units | CFM or CMM |
| Velocity accuracy | 3% |
| Vane wheel | Low friction ball bearing vane wheel, 2.83 in (72 mm) diameter, on a 3.9 ft (120 cm) cable |
| Averaging | 20 point average for air flow |
| Functions | Data hold (reading hold), maximum, minimum and average |
| Area memory | 8 memory locations for CFM and 8 for CMM, for commonly used area sizes |
| Area settings | Area dimensions stored in the internal memory for the next power on |
| Units | Multi-unit switching |
| Use mode | Hand-held or fixed measurement |
| Product code | EL-MAILE-10815 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Anemometer Used For?
Vane anemometers are used to check air speed at grilles, ducts, fans and open windows, and in weather observation, because a freely turning vane spins faster as the air moves faster. The user enters the area of the duct or opening, holds the vane wheel on its cable square to the airflow and reads the velocity; the meter multiplies it by the stored area to give air volume in CFM or CMM, and the 20 point average evens out a fluctuating flow. Temperature, humidity, dew point and wet bulb readings describe the condition of the air at the same time.
What to Specify When Ordering
- Quantity — the number of anemometers required.
Frequently Asked Questions
What does the Anemometer measure?
It measures air velocity or wind speed, air flow and air volume, together with ambient temperature, humidity, dew point temperature and wet bulb temperature.
How is air volume calculated?
The meter calculates air volume in CFM or CMM from the measured velocity and the area dimensions entered, which stay in the internal memory for the next power on.
How many area sizes can be stored?
There are 8 memory locations for CFM and 8 for CMM, so commonly used duct or opening sizes can be recalled without entering them again.
What vane wheel is used?
A low friction ball bearing vane wheel of 2.83 in (72 mm) diameter on a 3.9 ft (120 cm) cable, giving 3% velocity accuracy.
Where does the name anemometer come from?
The term comes from the Greek word anemos, meaning wind, and is used for any wind speed instrument in meteorology; the anemometer is also a common weather station instrument.
Can it be used in a fixed position?
Yes. It works either hand-held or in a fixed position, and it offers reading hold, maximum, minimum and average functions plus a 20 point average for air flow.
OEM Manufacturer
The Anemometer is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
