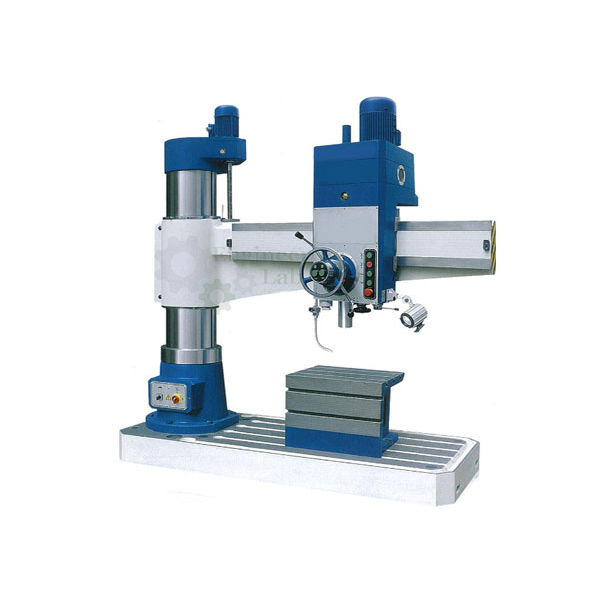

Radial Drill Machine

Product Code : EL-WTMAA-10453

Radial Drill Machine (code EL-WTMAA-10453) is a workshop drilling machine with a column, arm and work head, used for drilling holes at different positions on work set up beneath its arm. Its column, arm, work head and gears are made of closed grain, the spindle ram is alloy steel and the main spindle and pinion are EN forged steel, with all moving parts finished to close tolerance on imported grinding machines.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Radial Drill Machine Used For?

On a radial drilling machine the drilling head runs along an arm that swings around a vertical column, so the drill can be brought over any point of a large or heavy workpiece without moving the work itself. The operator clamps the work beneath the arm, swings the arm and traverses the head until the spindle is over the marked hole position, then feeds the drill down with the alloy steel spindle ram. This makes the machine suited to drilling several holes in castings, plates and fabrications that would be awkward to reposition under a fixed spindle.

What to Specify When Ordering

• Quantity — the number of radial drilling machines required.

Frequently Asked Questions

How does a radial drill differ from a pillar drill?
On a radial drill the drilling head travels along an arm that swings around the column, so the drill is moved to each hole position; on a pillar drill the work is moved under a fixed spindle.

What materials are used in the main parts?
The column, arm, work head and gears are of closed grain, the spindle ram is alloy steel, and the main spindle and pinion are made of EN forged steel.

How are the parts finished?
Parts are finished on imported grinding machines, all moving parts are finished to close tolerance, and the parts are properly balanced before assembly.

Are the main gear and pulley assembled in advance?
Yes. The main gear and pulley go through prior assembly, being put together as a pair before the rest of the machine is built up.

What should an export enquiry for this drill include?
List the quantity, the country of destination with the port or city of delivery, the delivery terms wanted (for example FOB or CIF), any packing requirements and the tender reference where one applies.

OEM Manufacturer

Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Radial Drill Machine at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its workshop machines, tools and accessories for engineering training workshops go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
