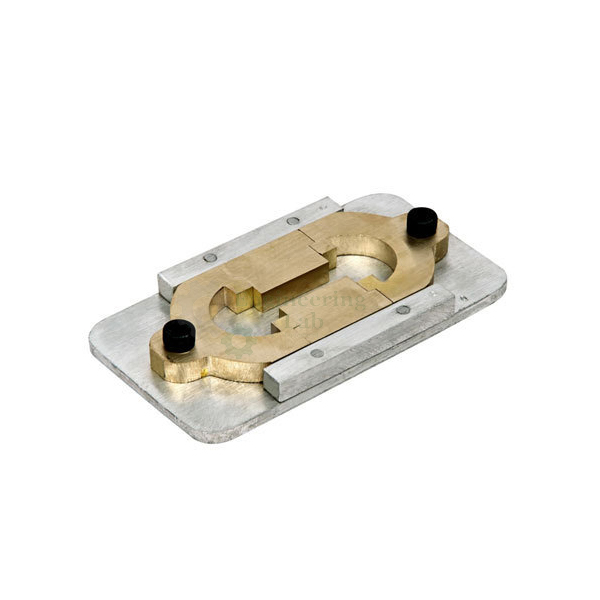

Elastic Recovery Mould
Product Code : EL-BTLE-10429
Elastic Recovery Mould (code EL-BTLE-10429) is a set of three brass/gunmetal moulds used to form the bitumen briquette specimens for elastic recovery testing. Each mould is made up of two end clips (B and B') and two sides (A and A'), and when properly assembled it forms a briquette 75 ± 0.5 mm long, with its other dimensions held to ± 0.1 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Supply | Set of three moulds |
| Material | Brass/gunmetal |
| Clips | Ends B and B' |
| Sides | Parts A and A' |
| Specimen | Briquette formed when the mould is properly assembled |
| Briquette dimensions | |
| Total length | 75 ± 0.5 mm |
| Dimension A | 36.5 ± 0.1 mm |
| Dimension B | 30.0 ± 0.1 mm |
| Dimension C | 17.0 ± 0.1 mm |
| Dimension D | 10.0 ± 0.1 mm |
| Dimension E | 10.0 ± 0.1 mm |
| Standards | EN 13398; ASTM D113, D6084; AASHTO T51; NFT66 |
| Supply | |
| Product code | EL-BTLE-10429 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Elastic Recovery Mould Used For?
Elastic recovery is used mainly to assess polymer-modified bitumens: a briquette of the binder is stretched to a set elongation, the thread is cut, and the share of the stretched length that it draws back is reported as a percentage. To make the specimens, the sides and clips are assembled on a base plate, hot binder is poured in and, once cooled, trimmed level; the sides are then taken away so that only the clips hold the specimen in the testing machine. Holding each dimension to its tolerance keeps the cross-section the same from one specimen to the next. The standards listed are EN 13398, ASTM D113, D6084, AASHTO T51 and NFT66.
What to Specify When Ordering
- Quantity — the number of sets of three moulds required.
Frequently Asked Questions
What is in one Elastic Recovery Mould set?
One set contains three moulds made of brass/gunmetal. Each mould has two end pieces, B and B', which act as clips, and two side pieces, A and A'.
What size of briquette does the mould form?
Correctly assembled, it forms a briquette with a total length of 75 ± 0.5 mm; dimension A is 36.5 mm and B is 30.0 mm, each to ± 0.1 mm.
What are the narrower dimensions of the specimen?
Dimension C is 17.0 mm, while D and E are both 10.0 mm, each held to a tolerance of ± 0.1 mm so that the specimen section stays consistent.
What does an elastic recovery test show?
It shows how far a stretched and cut thread of bitumen draws back towards its original length, a property used mainly when judging binders modified with polymers.
Which standards is the mould listed under?
The standards listed are EN 13398, ASTM D113, D6084, AASHTO T51 and NFT66, which deal with elastic recovery and ductility testing of bitumen.
How are the moulds ordered?
Use the Add To Cart enquiry button on this page, or send the number of three-mould sets needed and the delivery location through the contact page.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Elastic Recovery Mould at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its bitumen and asphalt testing equipment for binder tests, mix preparation and specimen testing go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
