Concrete Flow Table Test Set
Product Code : EL-CTLE-10913

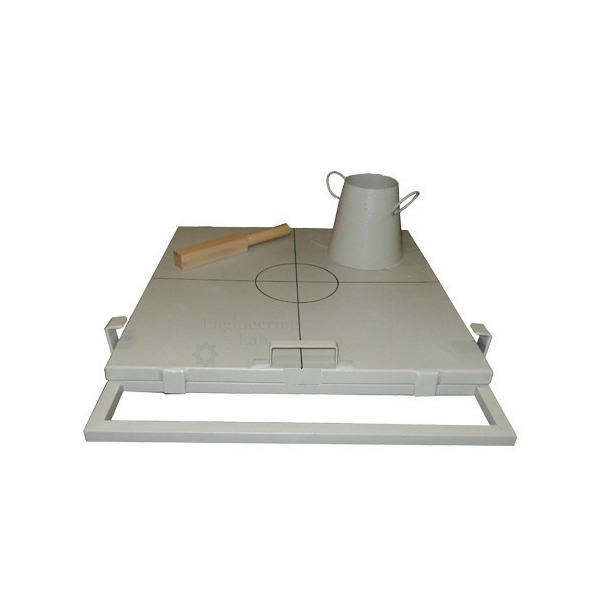

Concrete Flow Table Test Set (code EL-CTLE-10913) is a hinged double steel table with a stainless steel cone, used to assess concrete mixes by their flow index. The upper table measures 700 × 700 mm and is corrosion protected, the apparatus measures 700 × 850 × 300 mm overall and weighs 40 kg, and the cone has a 130 ± 2 mm top diameter, a 200 ± 2 mm base diameter and height, and a 1.5 mm thickness.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Judging the stability of concrete mixes by a flow index |
| Construction | Double steel table; upper table hinged on the lower one |
| Upper table | 700 × 700 mm, corrosion protected |
| Overall dimensions | 700 × 850 × 300 mm |
| Weight | 40 kg |
| Flow index | Shown as an arithmetic count |
| Standards | EN 12350-5 |
| Cone | |
| Material | Stainless steel |
| Top diameter | 130 ± 2 mm |
| Base diameter | 200 ± 2 mm |
| Height | 200 ± 2 mm |
| Thickness | 1.5 mm |
| Supply | |
| Product code | EL-CTLE-10913 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Concrete Flow Table Test Set Used For?
The flow table test measures the consistence of fresh concrete, particularly flowing mixes for which the slump test says little. The operator places the cone at the centre of the upper table, fills it with concrete in layers and compacts them, lifts the cone away, and then raises the hinged upper table and lets it drop onto the lower one a set number of times. The concrete spreads out across the 700 × 700 mm table, the diameter of the spread is measured, and the result is reported as the flow. The standard listed for it is EN 12350-5.
What to Specify When Ordering
- Quantity — the number of flow table sets required.
Frequently Asked Questions
What does the flow table test show?
It shows how far fresh concrete spreads when the hinged table is jolted, giving a flow index that describes the consistence and stability of the mix.
What are the table dimensions?
The upper table measures 700 × 700 mm, the apparatus measures 700 × 850 × 300 mm overall, and the complete set weighs 40 kg.
What are the cone dimensions?
The stainless steel cone has a top diameter of 130 ± 2 mm, a base diameter and height of 200 ± 2 mm each, and a thickness of 1.5 mm.
How is the table built?
It is a double steel table, with the upper table hinged on the lower one and corrosion protected so that the wet concrete does not attack its surface.
Which standard is listed for the set?
The standard listed for it is EN 12350-5, and the set comprises the double steel table together with the stainless steel cone.
What should be sent with an export enquiry?
Include the number of sets, the destination country with its port or city, the delivery terms such as FOB or CIF, any packing requirements and any tender reference.
OEM Manufacturer
Buyers of the Concrete Flow Table Test Set deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
