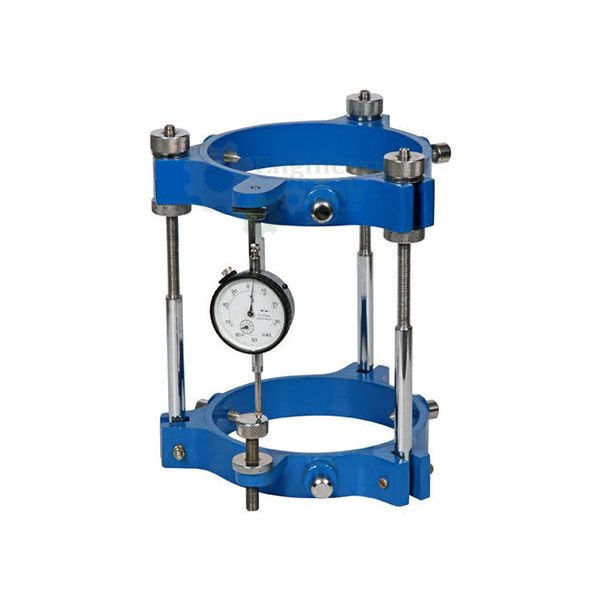

Longitudinal Compressometer
Product Code : EL-CTLE-10304
Longitudinal Compressometer (code EL-CTLE-10304) is a frame-type instrument that clamps over a concrete cylinder to measure its longitudinal deformation under compressive load. Screws in its top and bottom rings clamp it firmly onto the cylinder, a 0.002 mm × 5 mm dial gauge on the upper ring bears through its tie onto an anvil whose screw sets the zero, and it comes in a wooden carrying case.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Frame with a bottom ring and a top ring |
| Clamping | Tightening screws clamp the compressometer firmly over the cylinder |
| Dial gauge | 0.002 mm × 5 mm, mounted on the upper ring |
| Gauge contact | Tie of the dial gauge rests on an anvil |
| Zero setting | By adjusting the anvil screw |
| Supplied in | Wooden carrying case |
| Standards | ASTM C 469 |
| Product code | EL-CTLE-10304 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Longitudinal Compressometer Used For?
The modulus of elasticity of concrete, its stiffness under working loads, is found by measuring how much a cylinder shortens along its axis as compressive load rises. The compressometer is clamped to the cylinder with the ring screws before the specimen goes into the compression machine, the gauge is zeroed with the anvil screw, and dial readings are taken at set load steps. Plotting stress against the strain worked out from those readings gives the elastic modulus used in structural design. The standard listed for the compressometer is ASTM C 469.
What to Specify When Ordering
- Quantity — the number of compressometers required.
Frequently Asked Questions
How is the compressometer fixed to the cylinder?
It has a bottom ring and a top ring, each with tightening screws that clamp the frame firmly over the concrete cylinder before loading.
What dial gauge does the compressometer use?
The upper ring carries a dial gauge of 0.002 mm × 5 mm, and the tie of that gauge rests on an anvil.
How is the compressometer gauge set to zero?
The zero on the dial gauge is set by turning the anvil screw, which moves the anvil that the gauge tie bears on.
What is a longitudinal compressometer used to find?
It measures the shortening of a concrete cylinder under compressive load, from which the strain and so the modulus of elasticity of the concrete can be worked out.
How is the compressometer stored and carried?
The instrument is kept in a wooden carrying case, and the standard listed for it is ASTM C 469.
OEM Manufacturer
Buyers of the Longitudinal Compressometer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
