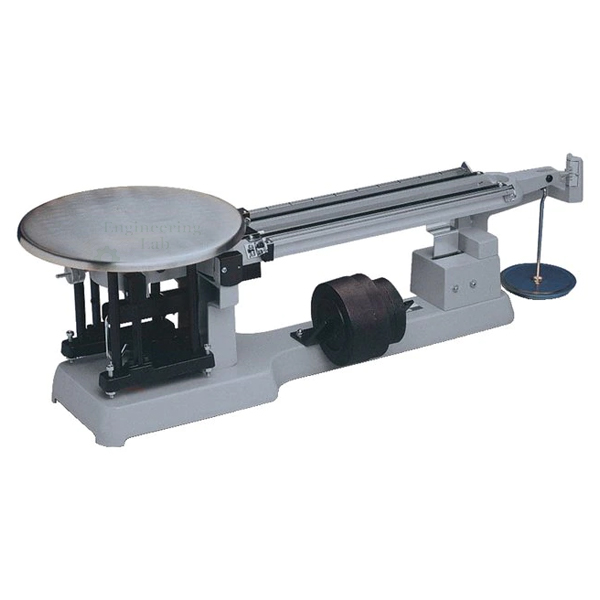

Heavy Duty Balance
Product Code : EL-LEAA-10548
Heavy Duty Balance (code EL-LEAA-10548) is a mechanical balance with two beams, used for heavy samples, that weighs up to 20 kg and reads to 1 g. Up to 1100 grams is read directly off the two beams and the slotted mass set provided extends the capacity to 20 kilograms; it also has a 2270 g lockable tare, magnetic damping, a dual-faced indicator plate, a cast aluminium base and beam with epoxy powder coating and an 11 inch dia. stainless steel platform.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Dual beam mechanical balance |
| Capacity | 20 kg |
| Readability | 1.0 g |
| Beam readings | Up to 1100 grams directly off the two beams |
| Mass set | Slotted mass set provided, extending capacity to 20 kg |
| Tare | 2270 g, large and lockable |
| Damping | Magnetic |
| Indicator plate | Dual-faced, for front and rear weighing |
| Base and beam | Cast aluminium, epoxy powder coated |
| Platform | 11 inch dia. stainless steel |
| Product code | EL-LEAA-10548 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Heavy Duty Balance Used For?
Heavy samples of soil, aggregate or concrete that are beyond the reach of a small balance are weighed on a large-platform beam balance of this kind. The container is placed on the 11 inch platform and cancelled with the lockable tare, up to 2270 g, and the sample is then added. Loads up to 1100 grams are read from the two beams; above that, masses from the slotted set are added to extend the range to 20 kilograms, with the reading taken to 1 g. The dual-faced indicator plate lets the balance be read from the front or the rear, and magnetic damping settles the beam quickly.
What to Specify When Ordering
- Quantity — the number of heavy duty balances required.
Frequently Asked Questions
What is the maximum capacity and readability?
The balance weighs up to 20 kg with a readability of 1 g. The two beams read up to 1100 grams directly, and the slotted mass set provided takes it to 20 kg.
What is the tare for?
The large lockable tare, of 2270 g, cancels the weight of a container placed on the platform, so the beams show only the mass of the sample.
Can it be read from both sides?
Yes. A dual-faced indicator plate allows weighing to be read from the front and from the rear of the balance.
What size is the platform?
The weighing platform is 11 inch dia. stainless steel, giving room for large trays and containers of material.
How is the balance constructed?
The base and beam are cast aluminium finished with an epoxy powder coating, and magnetic damping is fitted to bring the beam to rest quickly.
How is an order placed for the Heavy Duty Balance?
Quantity and delivery location are all that is needed: enter them through the Add To Cart enquiry button on this page or send them by the contact page.
OEM Manufacturer
The Heavy Duty Balance is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
