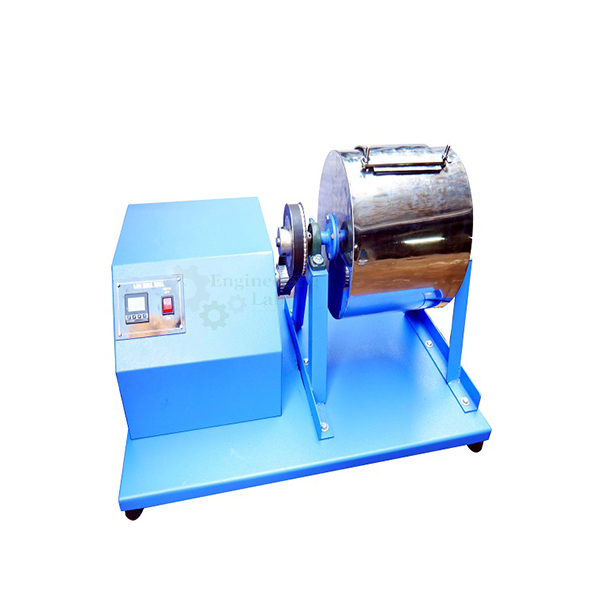

Laboratory Ball Mill

Product Code : EL-LEAA-11003

Laboratory Ball Mill (code EL-LEAA-11003) is an electrically operated mill used for mixing and grinding small batches of powder, such as pesticide powder, in a jar charged with steel balls. It takes 1 kg to 2 kg per batch, is driven by an FHP motor at up to 80 RPM, and has an interchangeable, removable aluminium jar, with a stainless steel jar as an option.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Laboratory Ball Mill Used For?

In a ball mill the jar turns about its axis, lifting the steel balls and letting them tumble back onto the material, so particles are broken down by impact and rubbing while the charge is mixed at the same time. The operator loads the powder and a set of steel balls of different sizes into the jar, closes it, fits it to the mill and runs it until the required fineness or blend is reached. Larger balls break coarse lumps while smaller ones fill the gaps and grind finer, and because the jar is removable a second jar can be filled while the first one is running.

What to Specify When Ordering

• Quantity — the number of mills required.
• Jar material — aluminium or stainless steel.

Frequently Asked Questions

How much material can be ground at a time?
The mill handles batches of about 1 kg to 2 kg, mixed and ground together with steel balls of different sizes inside the jar.

What speed does the jar run at?
The FHP motor drives the jar at a maximum speed of 80 RPM, and the mill is rated for a continuous duty cycle.

What jar materials are available?
The standard jar is aluminium finished with paint, and a stainless steel or aluminium jar is offered as the option.

Why are balls of different sizes used?
Large balls break down the coarser lumps by impact, while smaller balls fill the spaces between them and grind the finer particles, so a mixed charge works through the material more evenly.

Can the jar be taken off the mill?
Yes. The jar is interchangeable and removable, so it can be taken off for loading, emptying and cleaning between batches.

OEM Manufacturer

Buyers of the Laboratory Ball Mill deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.

Related Laboratory Equipment and Accessories

• Willy Mill Arthur H Thomas Type — 1/4 HP cutting mill with 4-edge rotor and 20, 40 and 60 mesh stainless steel sieves.
• Rotary Shaker — flask shaker with 19 mm or 25 mm horizontal circular motion and 20 to 180 RPM speed.
• Vortex Shaker — tube and small flask vortex mixer with neoprene cup, variable speed and non-walking rubber base.
• Mortar and Pestle — deep form porcelain grinding set with unglazed working faces and spout, 80 ml to 500 ml.

See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.

Request a Quote

For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of mills and the jar material required and your delivery location through the contact page, or add the Laboratory Ball Mill to the enquiry cart from this page.
