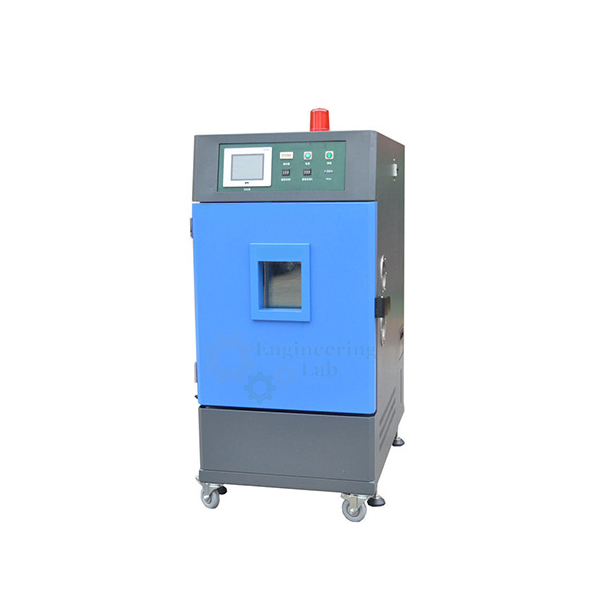

Humidity Chamber
Product Code : EL-LEAA-10526
Humidity Chamber (code EL-LEAA-10526) is a double walled test chamber used to hold products at a controlled temperature and humidity, in applications such as the cosmetics and packaging industries and plant or insect growth. It has a powder coated mild steel outer body, a stainless steel inner chamber with adjustable shelves, puff insulation, a hermetically sealed compressor, steam injection humidity and digital controllers, and comes in four inner sizes from 455 × 410 × 610 mm to 650 × 580 × 900 mm.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Construction | |
| Walls | Double walled, with puff insulation between the inner and outer walls to avoid thermal loss |
| Outer body | Mild steel, powder coated |
| Inner chamber | Stainless steel, highly polished sheet finish |
| Shelves | Stainless steel, perforated and adjustable |
| Insulation | Puff |
| Mobility | Wheel support |
| Inner size (W × D × H) | 455 × 410 × 610 mm, 505 × 415 × 830 mm, 570 × 550 × 875 mm, 650 × 580 × 900 mm |
| Temperature | |
| Temperature control | 10 °C to 60 °C (±5%) |
| Temperature range | 5 °C to 60 °C ±1 °C |
| Temperature controller | Microprocessor based digital temperature controller cum indicator |
| Temperature holding | System designed to maintain constant temperatures in the chamber |
| Humidity | |
| Humidity control | 55% to 90% (±5%) |
| Humidity range | 5% above ambient, from 55% to 95% RH ±3% RH at cool temperatures |
| Humidity creation | By steam injection |
| Humidity controller | Digital humidity indicator-cum-controller |
| Air circulation and cooling | |
| Type | Forced convection |
| Blower | Motor blower for forced air circulation |
| Air ducting | Ducting for positive air flow |
| Compressor | Hermetically sealed |
| Controls and supply | |
| Interface | Digitally controlled |
| Safety | Thermostat |
| Electric supply | 220/230 V AC, 50/60 Hz |
| Applications | |
| Applications | Cosmetics industry, plant / insect growth, packaging industry |
| Supply | |
| Product code | EL-LEAA-10526 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Humidity Chamber Used For?
A humidity chamber keeps samples in air of known temperature and relative humidity for as long as a test requires, so that the effect of warm, damp or cool, humid conditions on a product or organism can be followed. Products are placed on the adjustable stainless steel shelves and the digital controllers are set to the temperature and humidity wanted; steam injection adds moisture, the hermetically sealed compressor provides cooling, and the motor blower drives air through the ducting to keep conditions even. In the cosmetics and packaging industries it shows how products and packs stand up to humid storage, and in biology it is used for plant and insect growth studies.
What to Specify When Ordering
- Quantity — the number of humidity chambers required.
- Inner size — 455 × 410 × 610 mm, 505 × 415 × 830 mm, 570 × 550 × 875 mm or 650 × 580 × 900 mm (W × D × H).
Frequently Asked Questions
What temperature and humidity can be held?
Temperature is controlled from 10 °C to 60 °C and humidity from 55% to 90%, both within ±5%, through the microprocessor based temperature controller and the digital humidity controller.
How is humidity produced inside the chamber?
Humidity is created by steam injection and set on a digital humidity indicator-cum-controller, while a motor blower and air ducting circulate the moist air through the chamber.
What inner sizes are available?
Four inner sizes are offered (W × D × H): 455 × 410 × 610 mm, 505 × 415 × 830 mm, 570 × 550 × 875 mm and 650 × 580 × 900 mm.
How is the chamber built?
It is double walled, with a powder coated mild steel outside, a polished stainless steel inner chamber and puff insulation between the walls to prevent heat loss. Wheels allow it to be moved.
Which industries use a humidity chamber?
Applications include the cosmetics industry, plant and insect growth work and the packaging industry, wherever products need testing under set temperature and humidity conditions.
What electrical supply does it need?
The chamber works on a 220/230 V AC supply at 50/60 Hz, and a thermostat is fitted as its safety device.
OEM Manufacturer
Buyers of the Humidity Chamber deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Humidity Chamber Cooling Side Panel — compressor-cooled humidity cabinet for 5 to 50 °C and 40% to 95% humidity, on caster wheels.
- Plant Growth Chamber (Refrigerated) — refrigerated plant growth cabinet, 10 to 50 °C, 60 to 95% humidity, with timed day and night lighting.
- Digital Temperature Humidity Meter — desk or wall LCD unit showing temperature, humidity and time together, with max/min memory and alarm.
- Humidifier — rotating disc humidifier atomizing up to 3.0 litre an hour, for up to 95% RH in enclosed areas.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of chambers and the inner size required and your delivery location through the contact page, or add the Humidity Chamber to the enquiry cart from this page.
