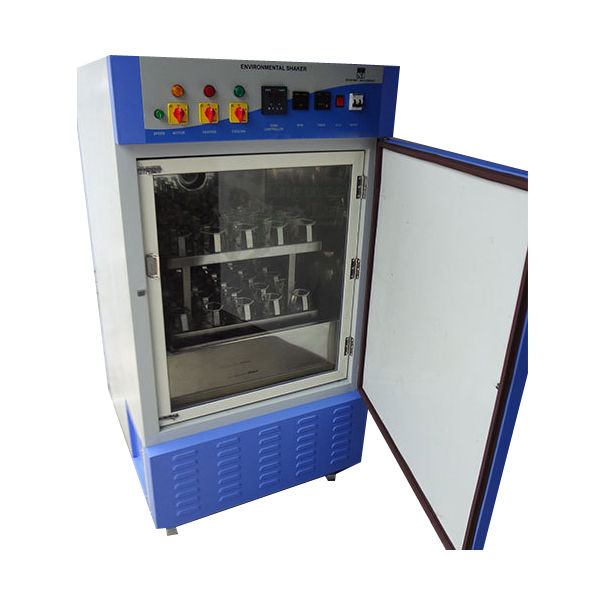

Orbital Shaking Incubators
Product Code : EL-LEAA-11020
Orbital Shaking Incubators (code EL-LEAA-11020) are temperature-controlled cabinets in which flasks held in clamps are shaken on an orbital platform while being incubated. They give variable speed up to 20–250 RPM and a temperature range of ambient to 60 °C ±0.5 °C with 0.1 °C setting, are refrigerated with R 134, and have a 304 grade stainless steel inner chamber, interchangeable flask clamps of assorted sizes and an air circulator.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Inner chamber | Stainless steel 304 grade |
| Outer chamber | Stainless steel 304 grade, with Plexi glass inner door |
| Alternative outer body | Mild steel, powder coated CRC sheet, on angle iron frame with castor wheels; inner 304 grade stainless steel with front toughened glass door |
| Flask clamps | Interchangeable, assorted sizes for different flasks |
| Air circulation | Air circulator for temperature uniformity |
| Speed | Variable, up to 20–250 RPM |
| Indicator | Digital RPM or temperature indicator with preset |
| Refrigeration | Refrigerated; refrigerant R 134 |
| Timer and lighting | 24 hrs timer or digital light, or 2 illumination |
| Motor | Dry and cooling |
| Temperature range | Ambient to 60 °C ±0.5 °C |
| Digital resolution | 0.1 °C |
| Digital setting | 0.1 °C |
| Power supply | Single phase AC, 220/230 V ±10%, 50 Hz |
| Options | |
| RPM meter | Digital RPM meter |
| Supply | |
| Product code | EL-LEAA-11020 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Are the Orbital Shaking Incubators Used For?
Shaking incubators combine an incubator with an orbital shaker, so that liquid cultures are kept at a steady temperature while being swirled; the motion keeps cells suspended and mixes air into the medium, which many microbial and cell cultures need in order to grow. Flasks are fixed in clamps of the right size, the speed and temperature are set, and the air circulator keeps the chamber temperature even while the platform runs. The glass door lets the cultures be checked during the run, and the timer and illumination options allow light periods to be set where the work calls for them.
What to Specify When Ordering
- Quantity — the number of incubators required.
- Body — all stainless steel 304 grade, or powder coated CRC outer body on angle iron frame with castor wheels.
- Flask clamps — the flask sizes the interchangeable clamps must hold.
- Options — whether the digital RPM meter is wanted.
Frequently Asked Questions
What shaking speeds do they cover?
The shaking speed is variable, given as up to 20–250 RPM, and a digital RPM meter is available as an option to show the running speed.
What temperature can be held in the chamber?
The range is ambient to 60 °C at ±0.5 °C, and the digital setting and digital resolution are both 0.1 °C.
Are the incubators refrigerated?
Yes. They are refrigerated units using R 134 refrigerant, with an air circulator in the chamber for temperature uniformity.
Can different flask sizes be shaken?
Interchangeable clamps of assorted sizes are provided for different flasks, so the platform can be set up for the flasks being used.
Why are cultures shaken during incubation?
Shaking keeps cells suspended and mixes air into the liquid medium, which helps aerobic cultures grow evenly while the temperature is held steady.
What are the chambers made of?
The inner chamber is 304 grade stainless steel; the outer body is either 304 grade stainless steel with a Plexi glass inner door, or powder coated CRC mild steel on an angle iron frame with castor wheels and a toughened glass front door.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Orbital Shaking Incubators at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its general laboratory equipment and accessories such as ovens, baths, balances and measuring tools go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Precision Laboratory Incubator — ambient to 70 °C PID controlled laboratory incubator with 0.1 °C setting and internal socket.
- Laboratory Incubator — double walled thermostatic cabinet with glass window door and glass wool insulation for culture work.
- Rotary Shaker — flask shaker with 19 mm or 25 mm horizontal circular motion and 20 to 180 RPM speed.
- Deep Freezer/ Low Temp. Vertical Model — upright laboratory freezer to -20 °C with stainless steel interior and PUF insulated body.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of incubators, the body type and the flask sizes to be clamped and the delivery location through the contact page; the Add To Cart button on this page also adds the Orbital Shaking Incubators to an enquiry.
