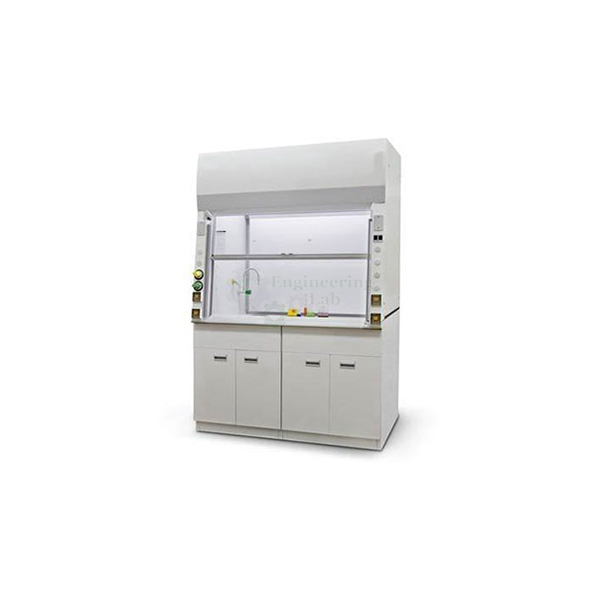

Fume Hood Cabinet
Product Code : EL-LEAA-10545
Fume Hood Cabinet (code EL-LEAA-10545) is a laboratory hood that gives personal protection during general chemistry work involving fumes and vapours. It is made for use with a remotely-located blower or with a built-in blower, can be operated as low as 60 fpm, and has a seamless one-piece liner of fiberglass-reinforced polyester that resists corrosion and fire; explosion-proof built-in-blower versions are available for Class 1 Div I or II atmospheres.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Personal protection for general chemistry applications involving fumes and vapours |
| Blower | For use with a remotely-located blower, or with a built-in blower |
| Hood type | Low velocity hood |
| Operating velocity | As low as 60 fpm |
| Liner | Seamless, one-piece, specially formulated fiberglass-reinforced polyester |
| Liner properties | Corrosion and fire resistance; fewer points of deterioration without seams |
| Explosion-proof version | With built-in blower, for potentially explosive or flammable atmospheres (Class 1 Div I or II) |
| Standards | SEFA-1; BS, IS, ASTM, AASHTO |
| Product code | EL-LEAA-10545 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Fume Hood Cabinet Used For?
A fume hood draws room air in through its front opening and carries fumes and vapours away through the exhaust, so that a person working at the opening does not breathe them. The user works with hands inside the hood while the blower, remote or built in, keeps air moving inwards; this hood is designed to operate at low air velocities, down to 60 fpm. Acids, solvents and other volatile chemicals are handled inside, and the seamless polyester liner resists corrosion and fire. Where the atmosphere may be explosive or flammable, the explosion-proof built-in-blower version is used.
What to Specify When Ordering
- Quantity — the number of fume hoods required.
- Blower — a hood for a remotely-located blower or a hood with a built-in blower.
- Explosion-proof version — whether the explosion-proof built-in-blower hood is needed for a Class 1 Div I or II atmosphere.
Frequently Asked Questions
What blower options are there?
Hoods are made either for connection to a remotely-located blower or with a blower built in, and the built-in-blower type is also made in an explosion-proof version.
What is the liner made of?
The interior is a seamless one-piece liner of specially formulated fiberglass-reinforced polyester, which resists corrosion and fire and, having no seams, has fewer points of deterioration.
Is there a version for flammable atmospheres?
Yes. The built-in-blower hood is also made in an explosion-proof form for laboratories whose atmosphere may be explosive or flammable, covering Class 1 Div I or II locations.
At what air velocity can the hood run?
It is a low velocity hood that may be operated as low as 60 fpm. A lower face velocity means less conditioned room air is exhausted.
Which standards are listed for the hood?
The standards listed for the Fume Hood Cabinet are SEFA-1, together with BS, IS, ASTM and AASHTO.
What should an export enquiry for the hood include?
Along with the number of hoods and the blower arrangement, include the destination country and port or city, the delivery terms (FOB, CIF or other), the packing wanted and any tender reference under which the hoods are bought.
OEM Manufacturer
The Fume Hood Cabinet is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
