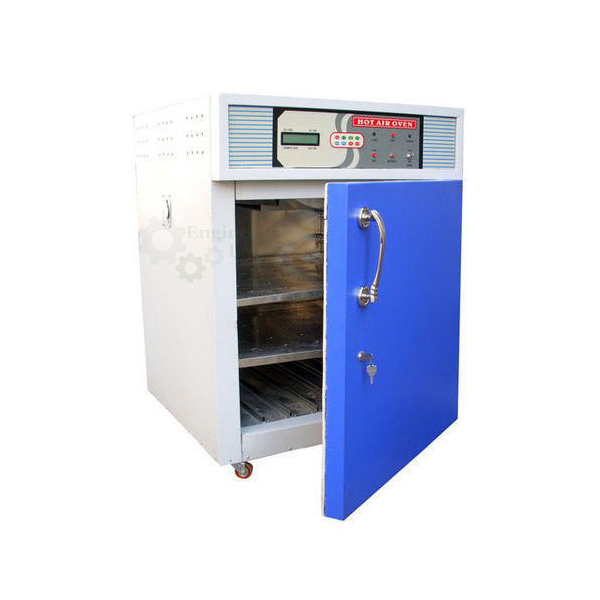

Mechanical Convection Hot Air Oven
Product Code : EL-LEAA-10993
Mechanical Convection Hot Air Oven (code EL-LEAA-10993) is a laboratory oven that uses a blower to circulate heated air for drying and sterilization. It controls from 50 °C to 250 °C with a stability of ±1 °C to ±0.5 °C through a microprocessor based PID controller with high and low temperature alarms, and has a polished 304 grade stainless steel interior with adjustable shelves inside a CRC powder coated mild steel housing.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Hot air drying and sterilization |
| Air circulation | Hot air blower for uniform air movement and temperature distribution |
| Insulation | Mineral wool, glass wool or blanket |
| Ventilation | Keeps the outer surface from being burnt while 200 °C oven temperature is maintained |
| Interior | Polished stainless steel 304 grade, corrosion resistant |
| Shelves | Adjustable, for items of different heights |
| Temperature control | Microprocessor based PID digital temperature controller cum indicator, with bi-metallic hydraulic capillary thermostat |
| Temperature range | Ambient; controlled range 50 °C to 250 °C |
| Temperature stability | ±1 °C to ±0.5 °C |
| Alarms | High and low temperature alarm |
| Control panel | Mains panel and load indicator, main switch for fan, temperature controller |
| Housing | Mild steel, CRC powder coated |
| Power supply | Single phase AC, 220/230 V, 50 Hz |
| Duty cycle | Continuous |
| Options | |
| Outer body | Stainless steel 304 grade, on request |
| Communication | Communication interface |
| Glass door | For working temperatures up to 200 °C |
| Front gate | Double colour gate, on request |
| Supply | |
| Product code | EL-LEAA-10993 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Mechanical Convection Hot Air Oven Used For?
In a mechanical or forced convection oven a fan drives the heated air through the chamber, so heat reaches every shelf instead of relying on warm air rising by itself, and the temperature is more even from top to bottom. Samples, glassware and containers are placed on the adjustable shelves, the set point is entered on the PID controller, and the oven holds that temperature for the drying or dry-heat sterilization period, warning the operator if the temperature moves too high or too low. With the glass door option the load can be watched when working up to 200 °C.
What to Specify When Ordering
- Quantity — the number of ovens required.
- Outer body — standard CRC powder coated mild steel or the stainless steel 304 grade body.
- Options — whether the communication interface, the glass door for working up to 200 °C or the double colour gate is wanted.
Frequently Asked Questions
Over what temperatures can the oven be controlled?
The controlled range is 50 °C to 250 °C, and the temperature stability is given as ±1 °C to ±0.5 °C.
How is the oven temperature controlled?
A microprocessor based PID digital controller cum indicator sets and shows the temperature, a bi-metallic hydraulic capillary thermostat is fitted, and alarms warn of high or low temperature.
How does mechanical convection differ from natural convection?
In natural convection heated air circulates only by rising and falling, whereas a mechanical convection oven uses a blower to drive the air through the chamber for a more even temperature distribution.
Is a glass door available?
A glass door is offered as an option for working temperatures up to 200 °C, so the load can be seen without opening the oven.
What is the inner chamber made of?
The interior is polished 304 grade stainless steel with adjustable shelves that can be set for items of different heights; the outer housing is CRC powder coated mild steel.
Can the oven run for long periods?
Its duty cycle is continuous, and power comes from a 220/230 V AC mains supply, single phase at 50 Hz, through the mains panel and main switch.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Mechanical Convection Hot Air Oven at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its general laboratory equipment and accessories such as ovens, baths, balances and measuring tools go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- High Temperature Convection Oven — blower convection oven controlled from 100 to 350 °C with ceramic blanket insulation and stainless steel chamber.
- Digital Double Door Drying Oven — soil and aggregate drying cabinet oven with PID control, safety thermostat and 3 shelves.
- Hot Air Oven and Incubator — two door hot air oven and incubator in one body, oven to 250 °C, stainless steel interior.
- Ageing Oven — 450 W double walled cable and PVC wire ageing oven, 140 to 180 °C, with rotameter.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of ovens and any options wanted, such as the glass door or communication interface and the delivery location through the contact page; the Add To Cart button on this page also adds the Mechanical Convection Hot Air Oven to an enquiry.
