Daily Rain Gauge
Product Code : EL-LEAA-10541

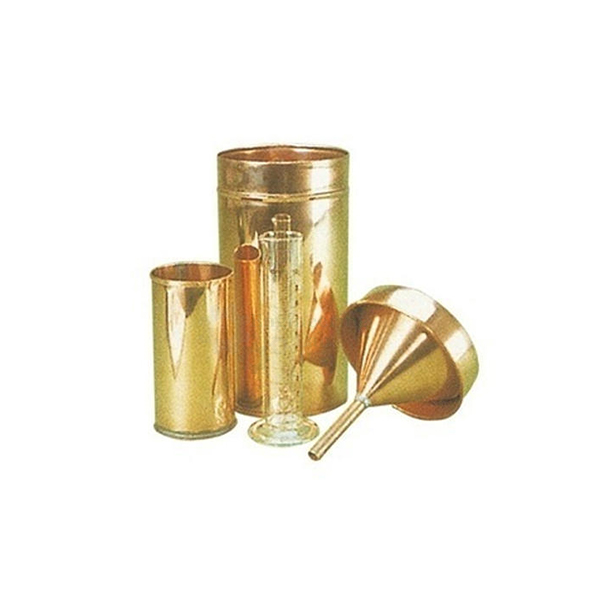

Daily Rain Gauge (code EL-LEAA-10541) is a copper rain gauge used to collect and measure each day's rainfall. It has a 5 inch funnel with a 127 diameter rim, an inner receiving vessel and an outer body, all of copper, and it is supplied with a plastic measuring cylinder graduated 0 to 10 mm in 0.1 mm divisions (100 divisions) and an inner can calibrated in mm and inches.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Material | Copper throughout: funnel, inner receiving vessel and outer body |
| Funnel | 5 inch |
| Rim | 127 diameter |
| Measuring cylinder | Plastic, graduated 0 to 10 mm, 0.1 mm divisions (100 divisions) |
| Inner can | Calibrated in mm and inches |
| Product code | EL-LEAA-10541 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Daily Rain Gauge Used For?
Rainfall is recorded as the depth of water that would cover level ground, so a gauge collects the rain falling on a rim of known size and the catch is measured in millimetres. The gauge is set level in an open place away from trees and buildings; rain entering the funnel drains into the inner receiving vessel, where it is held until it is measured. At the same hour each day the collected water is poured into the plastic measuring cylinder and read to 0.1 mm, giving the rainfall for the previous day.
What to Specify When Ordering
- Quantity — the number of rain gauges required.
Frequently Asked Questions
Which parts of the rain gauge are copper?
The funnel, the inner receiving vessel and the outer body are all copper; only the measuring cylinder supplied with it is plastic.
How is the rainfall read?
The water collected in the receiving vessel is poured into the plastic measuring cylinder, which is graduated 0 to 10 mm in 0.1 mm steps, 100 divisions in all.
What size is the collecting funnel?
The funnel is 5 inch, with a 127 diameter rim that defines the area over which rain is caught.
Why is rainfall measured in millimetres?
Rainfall is expressed as the depth of water that would lie on flat ground if none ran off or soaked in, so a reading in millimetres is the same whatever the gauge size.
When should the gauge be read?
A daily gauge is read once a day at a fixed time, so that each reading covers the same period and the totals can be compared.
What does an export enquiry need?
A rain gauge export enquiry gives the quantity, the destination country, the port or city of arrival, whether FOB, CIF or other terms apply, how the gauges are to be packed and any tender reference.
OEM Manufacturer
Buyers of the Daily Rain Gauge deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests general laboratory equipment and accessories such as ovens, baths, balances and measuring tools, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Laboratory Equipment and Accessories
- Measuring Tapes — set of 2 plastic flexible rulers in sky blue and black, each 10 × 4 × 9 cm.
- Graduated Measuring Jars — volume-graduated jar for site silt and sand checks and liquids, 5 ml to 2000 ml.
- Room Thermometer — thermometer for logging laboratory and store room air temperature over a -30 to +60 °C range.
- Digital Temperature Humidity Meter — desk or wall LCD unit showing temperature, humidity and time together, with max/min memory and alarm.
See the full Laboratory Equipment and Accessories range or all Civil Engineering Lab Equipment.
Request a Quote
For this and other laboratory equipment and accessories, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of rain gauges required and your delivery location through the contact page, or add the Daily Rain Gauge to the enquiry cart from this page.
